VeriFone VX 680 Installation Guide

TERMINAL SETUP
Installing and Replacing SD Card
VX 680 I
NSTALLATION GUIDE 35
Installing and
Replacing SD
Card
The VX 680 terminal supports the installation of an SD card on certain
configurations. Use the following procedures to replace or install an SD card.
To install or replace
the SD card
1 Turn off the terminal.
2 Place the terminal upside down on a soft, clean surface to protect the lens
from scratches.
3 Remove the battery (see Figure 21).
4 After removing the battery, the SD card compartment is exposed, as shown in
Figure 23. The SD card holder is labeled SD.
5 Insert the SD Card into the cardholder.

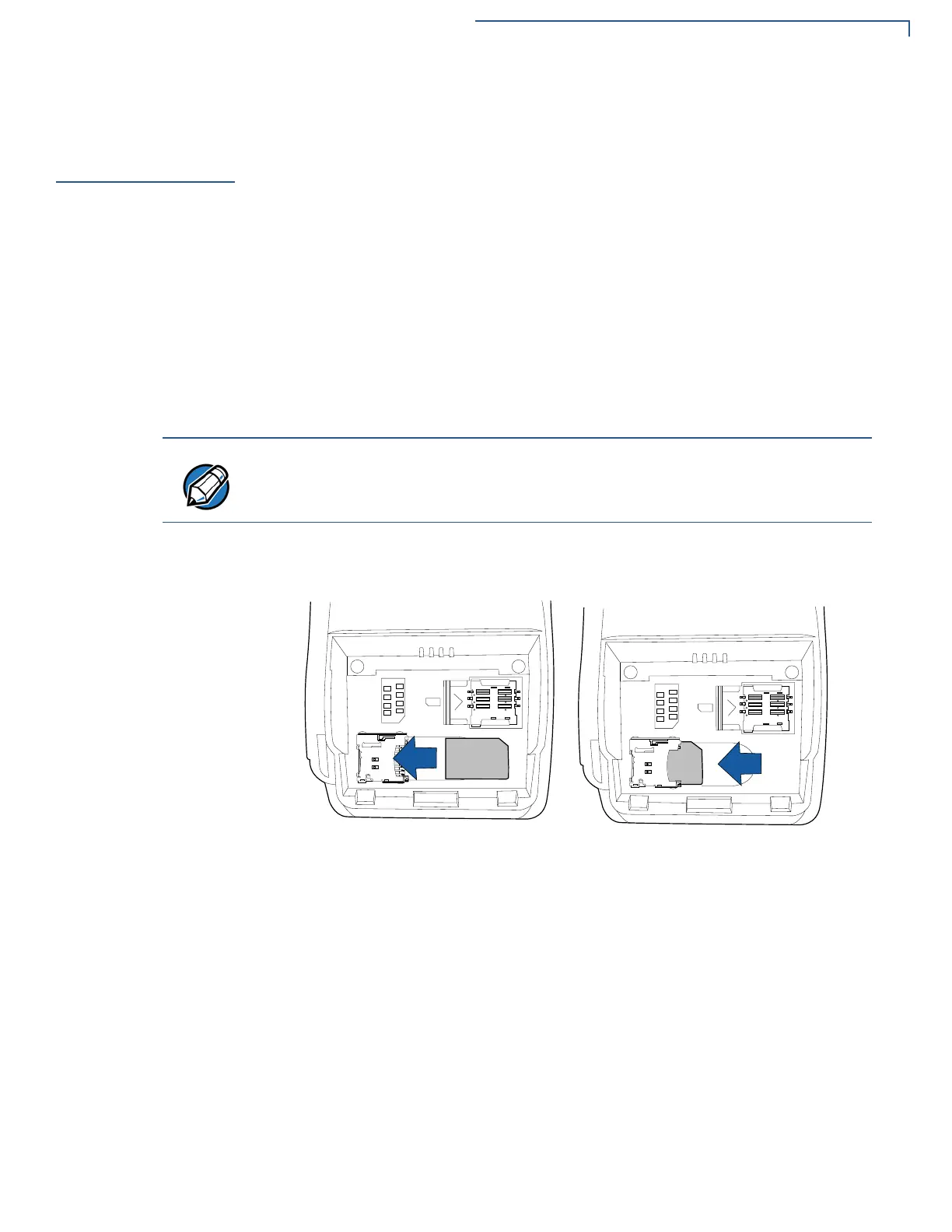

Figure 23 Installing SD Card
6 Install the battery (see Figure 24).
NOTE
There is only one SIM/R-UIM slot and one SD slot. Make sure you insert the SD
card into the SD slot, as shown in Figure 23.
6'

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
