TERMINAL SETUP
Installing the SIM or R-UIM Card (GPRS and CDMA Models)
34 VX 680 INSTALLATION GUIDE
5 Insert the SIM or the R-UIM card into the cardholder.

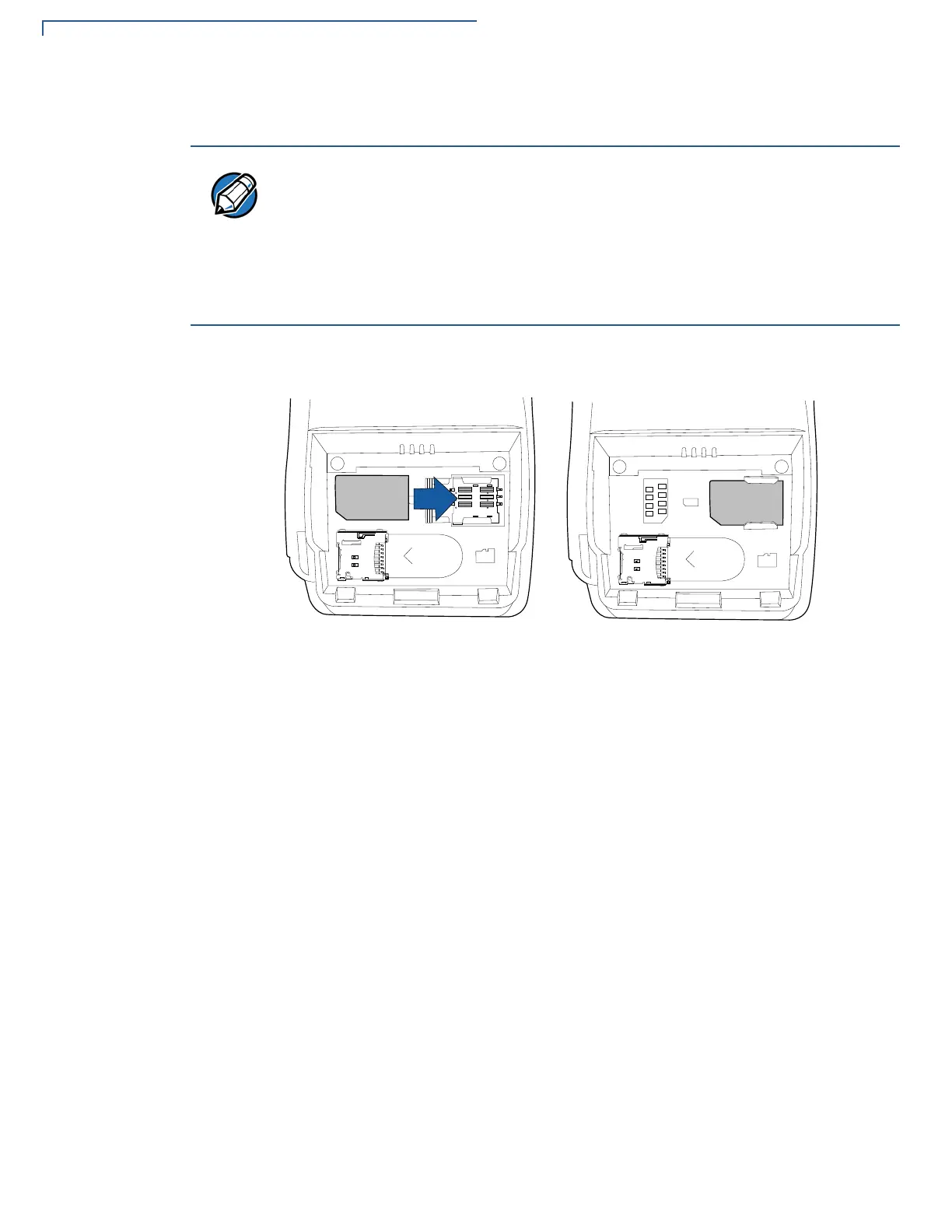

Figure 22 Inserting the SIM or R-UIM Card
6 Install the battery (see Figure 24).
There is only one SIM/R-UIM slot and one SD slot. Make sure you insert the SIM/
R-UIM card into the SIM slot, as shown in Figure 22.
Before inserting the SIM/R-UIM card, position it as shown in Figure 22, with the
card’s gold contacts facing the compartment. The cardholder connector base has
a set of contacts and a notch to ensure the SIM/R-UIM card is positioned
correctly. The SIM/R-UIM card has a notch on one corner to ensure that it fits into
the connector base in only one way.
