VeriFone VX 680 Installation Guide

TERMINAL SETUP
Examining Connection Ports
20 VX 680 INSTALLATION GUIDE
Power Adapter
Cable
Each VX 680 terminal comes with power adapter cable (VPN CBL268-004-01-A)
that completes the connection between the power pack and the terminal.

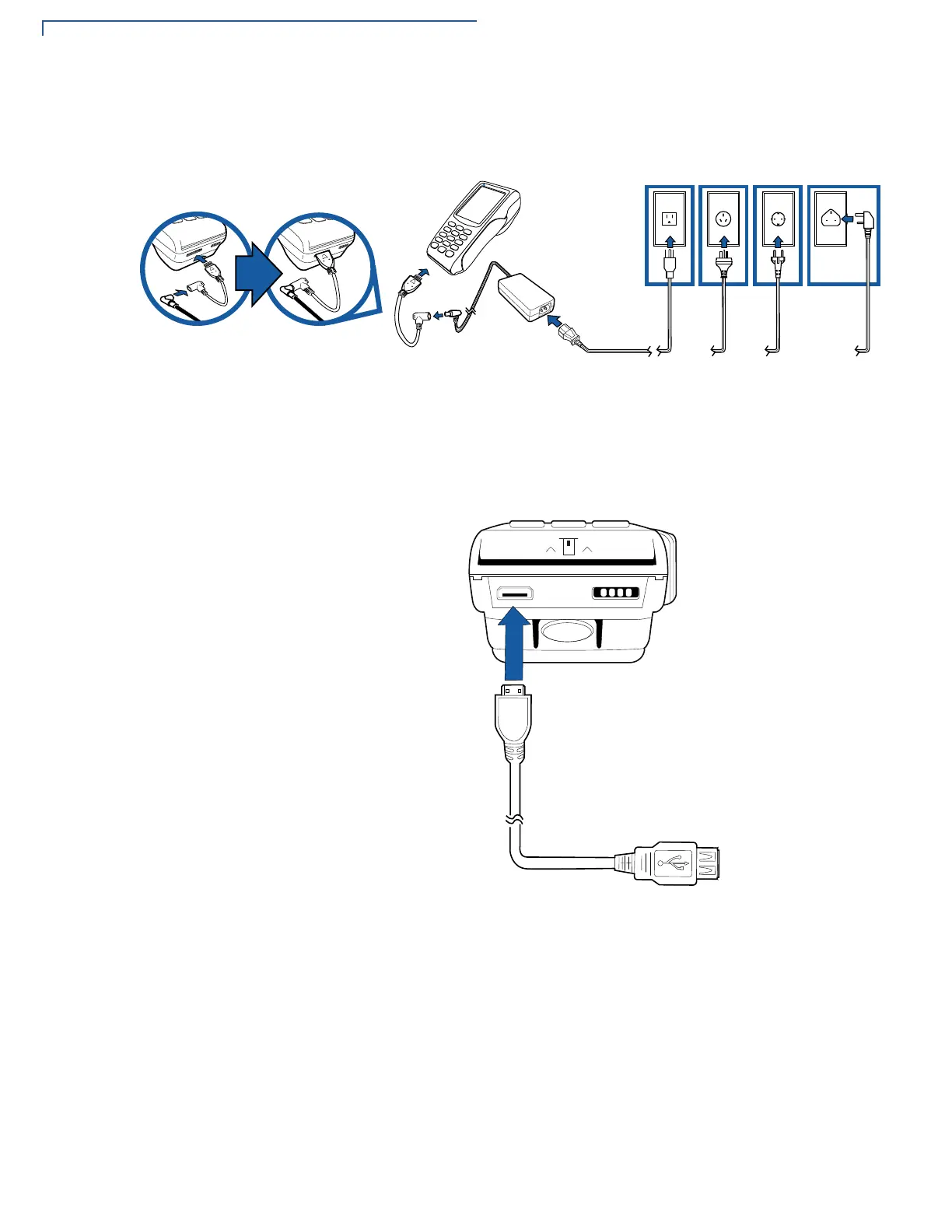

Figure 4 Power Adapter Cable Connection to a VX 680 Terminal
USB Host Cable
The VX 680 terminal also provides a 2 wire USB host port (VPN CBL268-003-01-
A) for supporting external peripherals. A connector adaptor provides for standard
USB host connection for the Modem Dongle or the RS-232 UART dongle.
Figure 5 USB Host Cable Connection to a VX 680 Terminal

VeriFone VX 680 Specifications

General

Display	3.5” QVGA (320 x 240 pixels) color LCD with backlight
Connectivity	Wi-Fi, Bluetooth, Ethernet
Processor	400 MHz ARM11 processor
Memory	128 MB Flash, 64 MB SDRAM
Operating System	Verix
Card Readers	MSR, EMV smart card reader, contactless/NFC
Printer	Integrated thermal printer
SAM Slots	3 SAM slots
Peripheral Ports	RS-232 port, USB port
Power Supply	AC adapter (100-240V), Battery backup
Weight	500g
