4. Repeat these steps for all the tiered switches you wish to attach to your system.
NOTE: The system will automatically “merge” the two switches. All switches connected to the tiered
switch will display on the main switch list in the local UI.
NOTE: The switch supports one tiered switch per device port of the main switch. You cannot attach a
switch to the tiered switch.

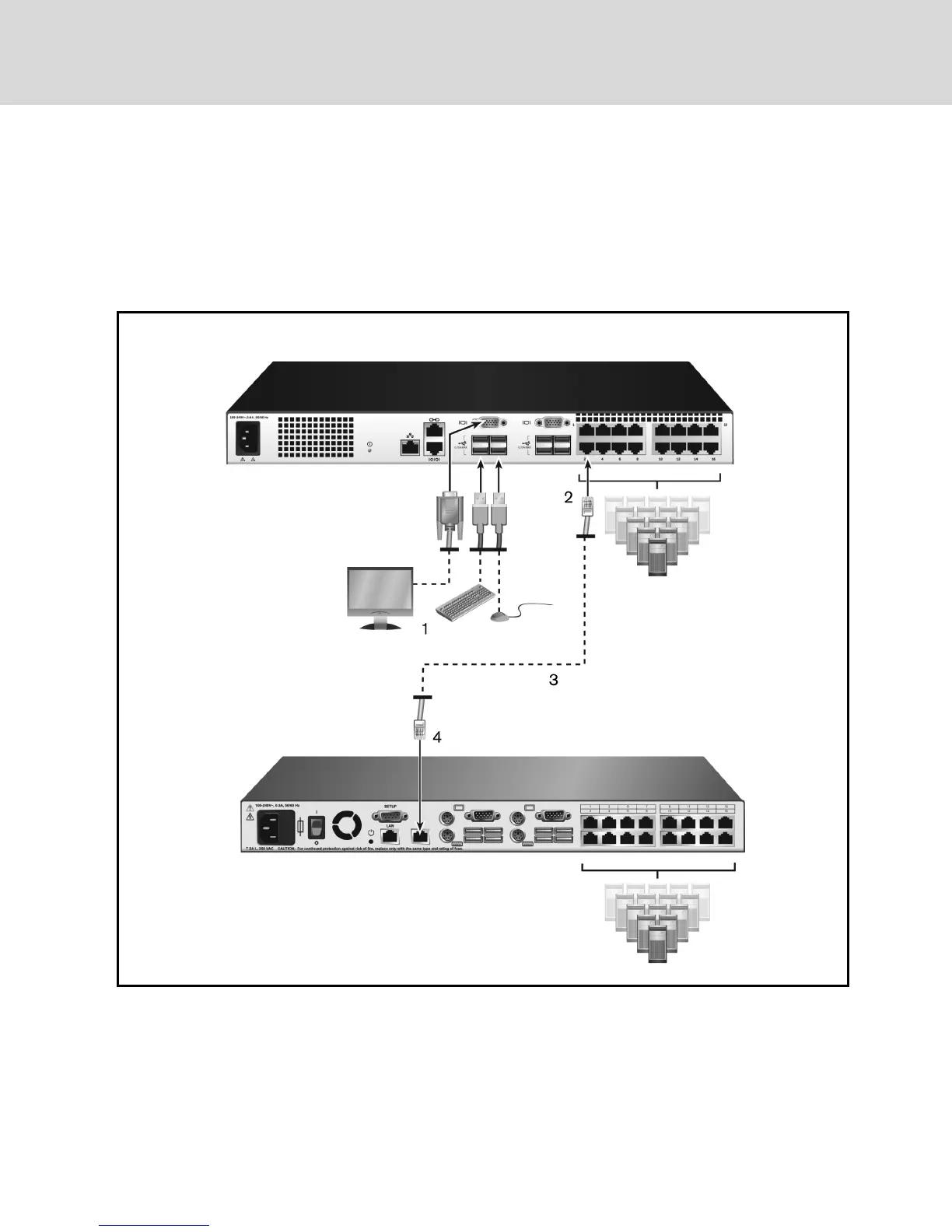

Figure 2.3 Tiering the Switch With a UTP Analog Switch
Vertiv™ | Avocent® AutoView ™ Switch for Dell Installer/User Guide
10
