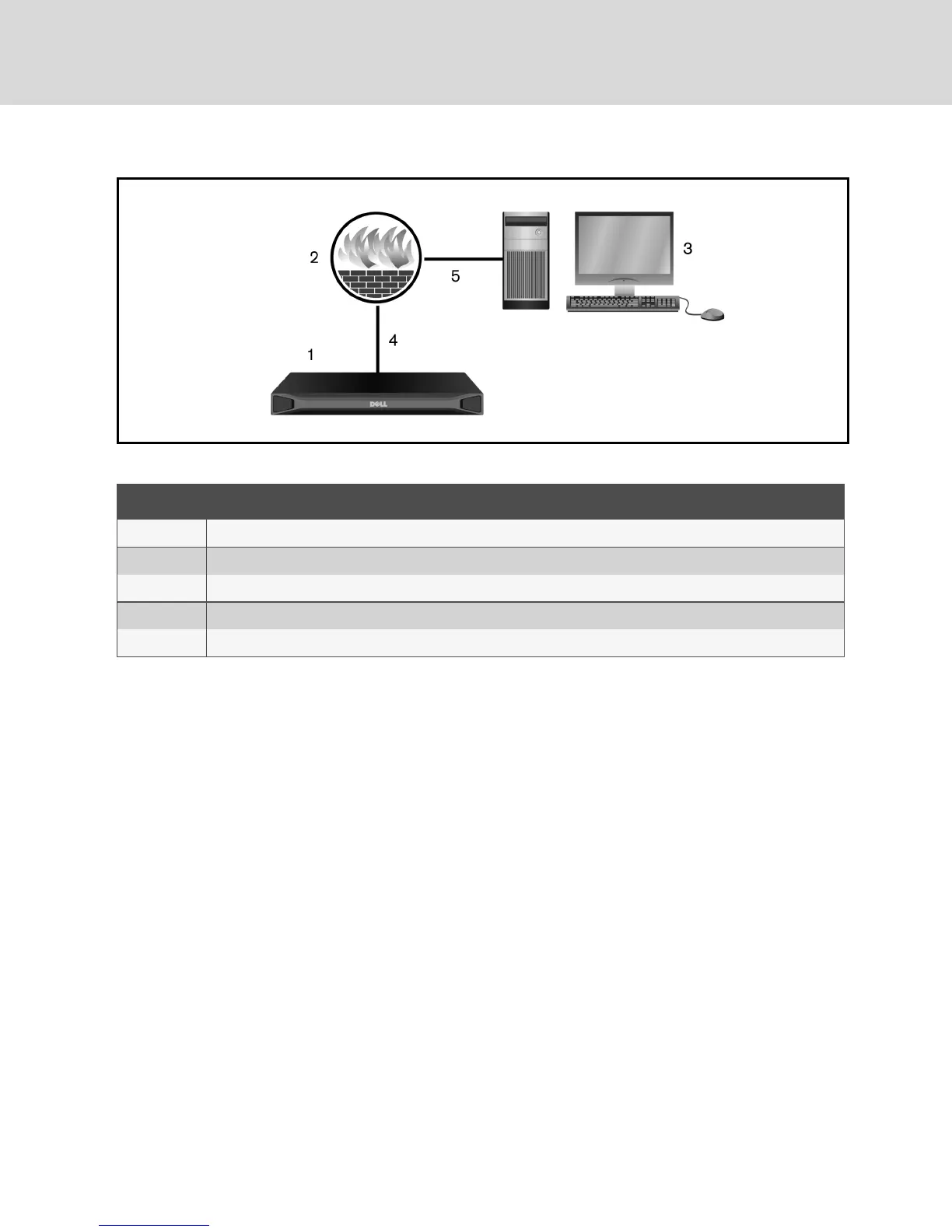

Figure 2.5 Typical Firewall Configuration
ITEM DESCRIPTION
1 Avocent® AutoView™ 2108/2216 Switch for Dell®
2 Firewall
3 User’s computer
4 Firewall forwards HTTP requests and KVM traffic to the switch
5 User browses to IP address outside the firewall
Table 2.6 Descriptions for Firewall Configuration
To configure the firewall:
To access the switch from outside a firewall, configure your firewall to forward ports 80 and 443 from its
external interface to the KVM switch through the firewall’s internal interface. Consult your firewall manual
for specific port forwarding instructions.
NOTE: Ports 80 and 443 can be reconfigured by an administrator. You must reboot for a port change
to take effect.
For information on launching the OBWI, see OBWI Operation on page 29.
2.8 Verifying Power Status
The switch has one power supply. The LED illuminates when the switch is turned on and operating
normally.
2.9 Adjusting Mouse Settings on Target Devices
Before a computer connected to the switch can be used for remote user control, you must set the mouse
speed and turn off acceleration. For machines running Microsoft® Windows® (Windows NT®, 2000, XP or
Server 2003), use the default USB mouse driver.
Vertiv™ | Avocent® AutoView ™ Switch for Dell Installer/User Guide
14
