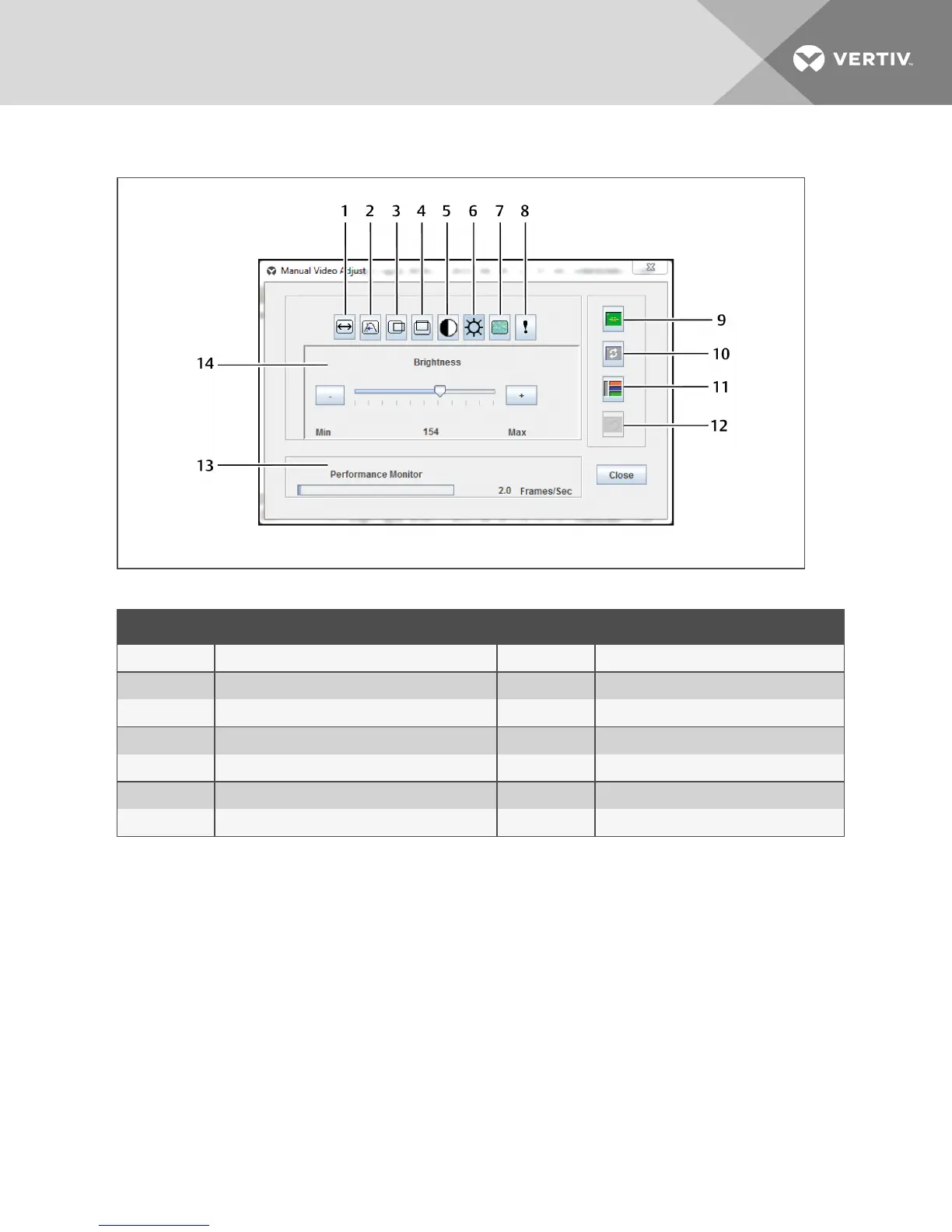

Figure 5.1 Manual Video Adjust Window
NUMBER DESCRIPTION NUMBER DESCRIPTION
1 Image Capture Width 8 Contrast
2 Pixel Sampling/Fine Adjust 9 Automatic Video Adjustment
3 Image Capture Horizontal Position 10 Refresh Image
4 Image Capture Vertical Position 11 Adjustment Bar
5 Pixel Noise Threshold 12 Revert Video to Initial Settings
6 Brightness 13 Performance Monitor
7 Block Noise Threshold
Table 5.1 Manual Video Adjust Window Descriptions
To manually adjust the video quality of the window:
NOTE: The following video adjustments should be made only with the help of Vertiv™ Technical
Support.
1. Click Tools - Manual Video Adjust from the Video Viewer window menu.
2. Click the icon corresponding to the feature you wish to adjust.
3. Move the Contrast slider bar and then fine-tune the setting by clicking the Min (-) or Max (+)
buttons to adjust the parameter for each icon pressed. The adjustments display immediately in
the Video Viewer window.
4. When finished, click Close.
