REV : 2
REV DATE : 1/17
DPN003208
Page :1 /1

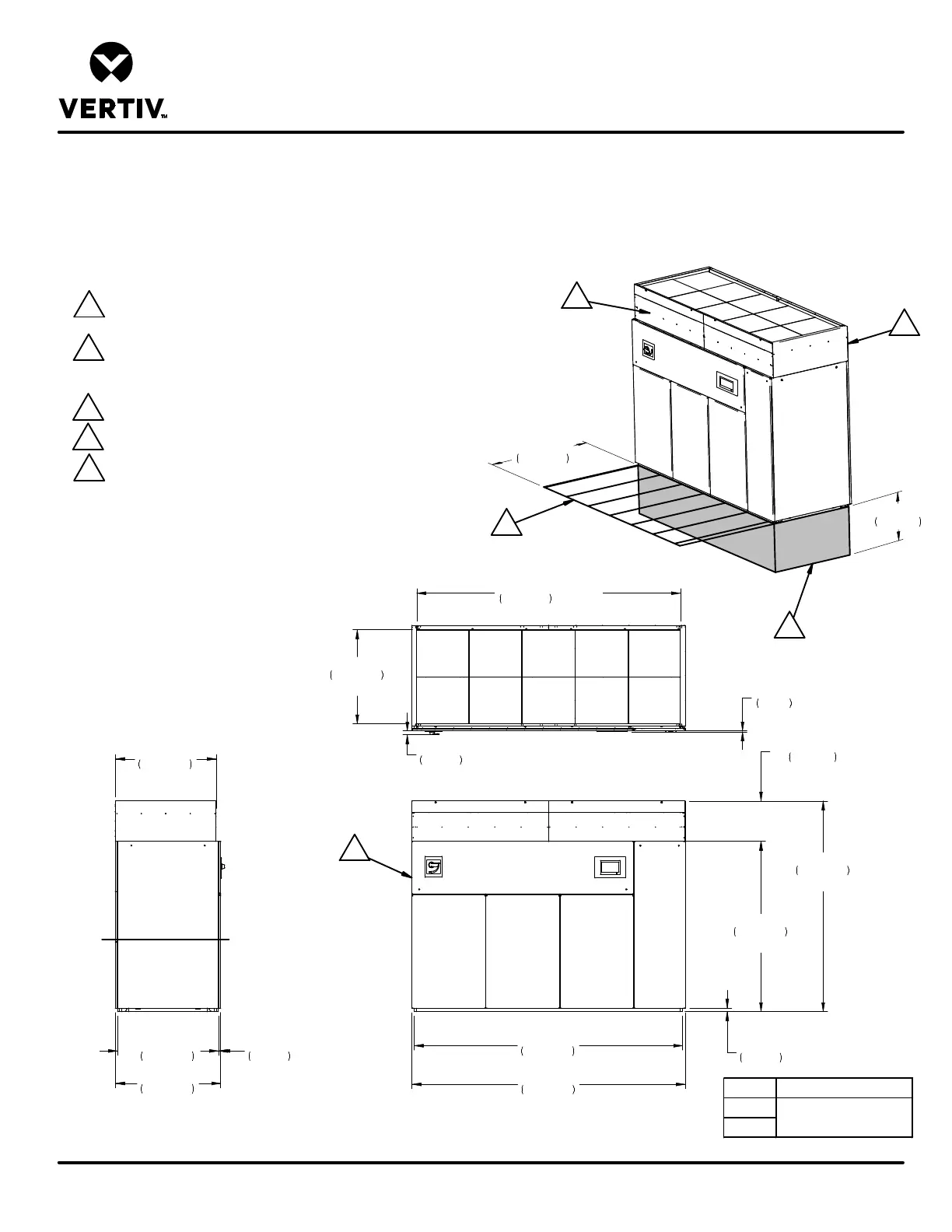

DOWNFLOW CW146 & CW181 W/ EC FANS AND FILTER PLENUM
(plenum shipped separately)
Form No.: DPN001040_REV4
CABINET DIMENSIONAL DATA
LIEBERT CW
76"
1930mm
BASE UNIT
45"
1143mm
PLENUM
18"
457mm
FILTER PLENUM
42"
1067mm
Opening
94"
2388mm
TOTAL HEIGHT
1 1/2"
38mm
120"
3044mm
45"
1143mm
47"
1194mm
1"
25mm
TYP
122"
3099mm
1 3/4"
44mm
Handle
5/16"
8mm
Bezel
48"
1219mm
24"
610mm
117 11/16"
2989mm
Opening
MODEL DRY WEIGHT lbs. (kg)
CW146
CW181
2520 (1143)
Notes:
1. Striated area indicates the recommended minimum
clearance to be provided for component access.
2. Shaded area indicates the required minimum clearance
below the unit to lower the fans into the floor. Fans may
also remain in their shipped position if desired.
3. Filter Plenum shipped separately
4. CW146 or CW181 base unit
5. Filters are removed through the
front of the plenum.
6. Reference DPN001693 for the electrical
and plumbing requirements.
