7. Disconnect high-voltage and low-voltage fan-motor wiring from the fan-motor electric component inside the
electric panel. Cut cable ties as needed.
8. Using the removal device showninserted in Figure 11.4 below, slide the fanmodule out throughthe front of the
unit.
9. Toreinstall the fanmodule, reverse these steps. Remove the field-supplied fan-removal device before resuming
operation.
NOTE: Refer to the unit's electrical schematic for specific wire-attachment points.

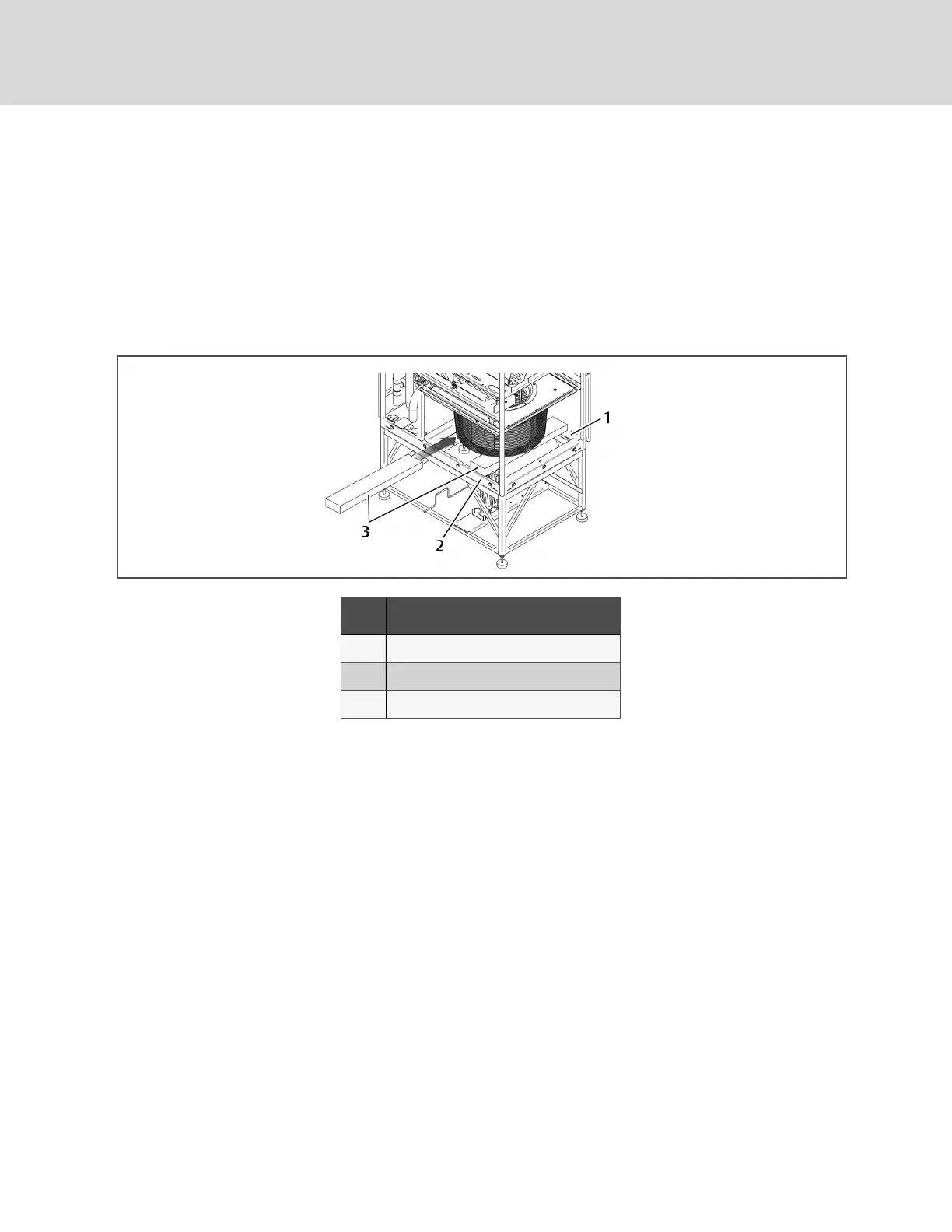

Figure 11.4 Slide EC fan out of the unit
Item Description
1 Rearframe channel (right-sidepanel notshown)
2 Front channel
3 Fan-removal devices
Vertiv | Liebert® CW™Installer/User Guide
