Vertiv Liebert CW Series User Manual

REV : 4
REV DATE : 9/18
DPN003204
Page :1 /1
UPFLOW MODELS CW038 - CW084 W/ FORWARD CURVED BLOWERS
Form No.: DPN001040_REV4

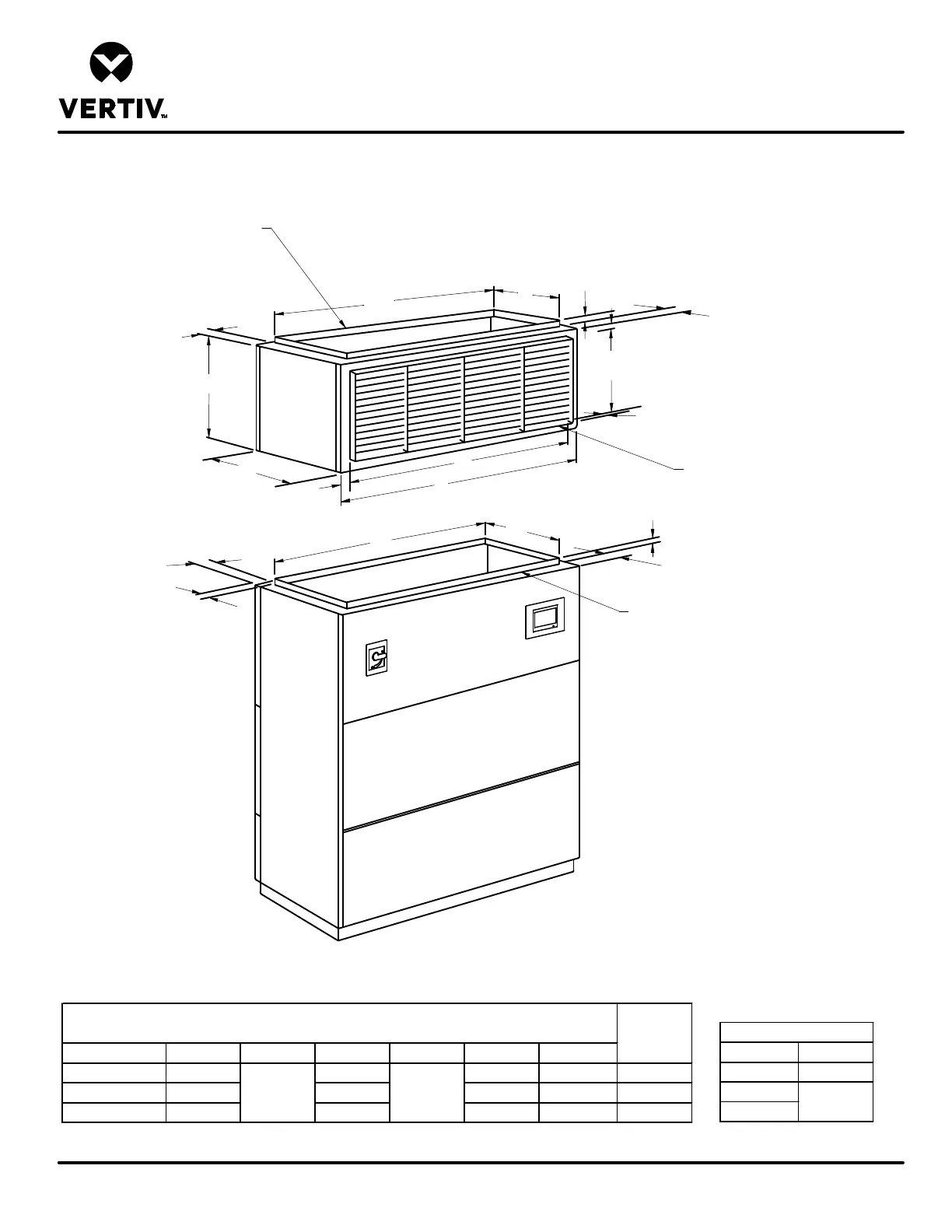

PLENUM DIMENSIONAL DATA
LIEBERT CW
C
H
B
F
E
A
D
C
D
18"
(457mm)
J
1"
(25mm)
2"
(50mm)
(25mm)
1"
1"
(25mm)
2"
(50mm)
(25mm)
1"
(25mm)
1"
(50mm)
2"
H J
20 (508) 1 (25)
22-3/4 (578)
34-3/4 (883)
Plenum Height in. (mm)
2-3/8 (60)
Model A B C D E F
CW038, CW041 50 (1270) 46 (1168) 44 (1118) 3 (76) 4.29 (.40)
CW051, CW060 74 (1880) 70 (1778) 60 (1524) 7 (178) 5.85 (.54)
CW076, CW084 99 (2515) 95 (2413) 70 (1778) 14-1/2 (368) 6.83 (.63)
Grill Free
Area Sq. Ft
(Sq. Meters)
Plenum Dimensional Data in. (mm)
34 (864) 32 (813)
Flange is standard on all Upflow units
Both top duct openings and
front grills are shown. See
specification sheet for specific
application.
Note: Flanges provided
on blower(s) outlet for
supply air ducting when
solid panel plenum is used.
