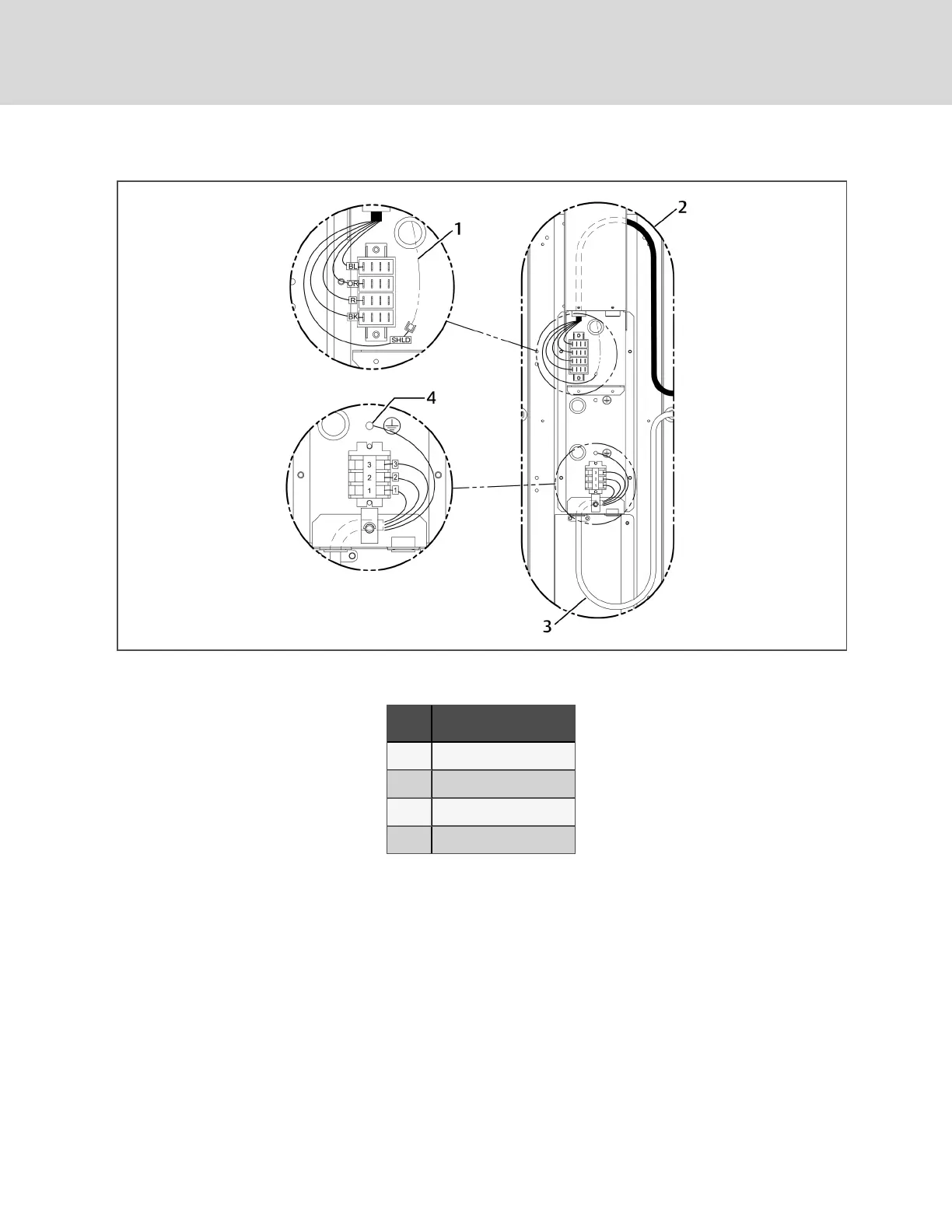

Figure 7.16 Junction box for single fan or fan 3
NOTE: For the high-volt terminal blocks, the wire-termination torque is 16-20in-lbs.
Item Description
1 SHLDwire fromunitharness
2 Fan(low-volt)wiring
3 Motor (high-volt)wiring
4 Green/Yellowgroundwire
6.2.5 Install front panels on plenum
Non-grilled plenum front panels require assembly and attachment before mounting the panels, see Non-grilled and rear-
discharge front-panel assembly on the facing page.
Grilled plenums do not require a frame assembly, see Front-discharge front-panel assembly onpage71.
Vertiv | Liebert® CW™Installer/User Guide
60
