Vertiv Liebert CW Series User Manual

REV : 9
REV DATE : 6/19
DPN001628
Page :1 /1
DOWNFLOW CW106 & CW114 W/EC FANS MODELS
Form No.: DPN001040_REV4

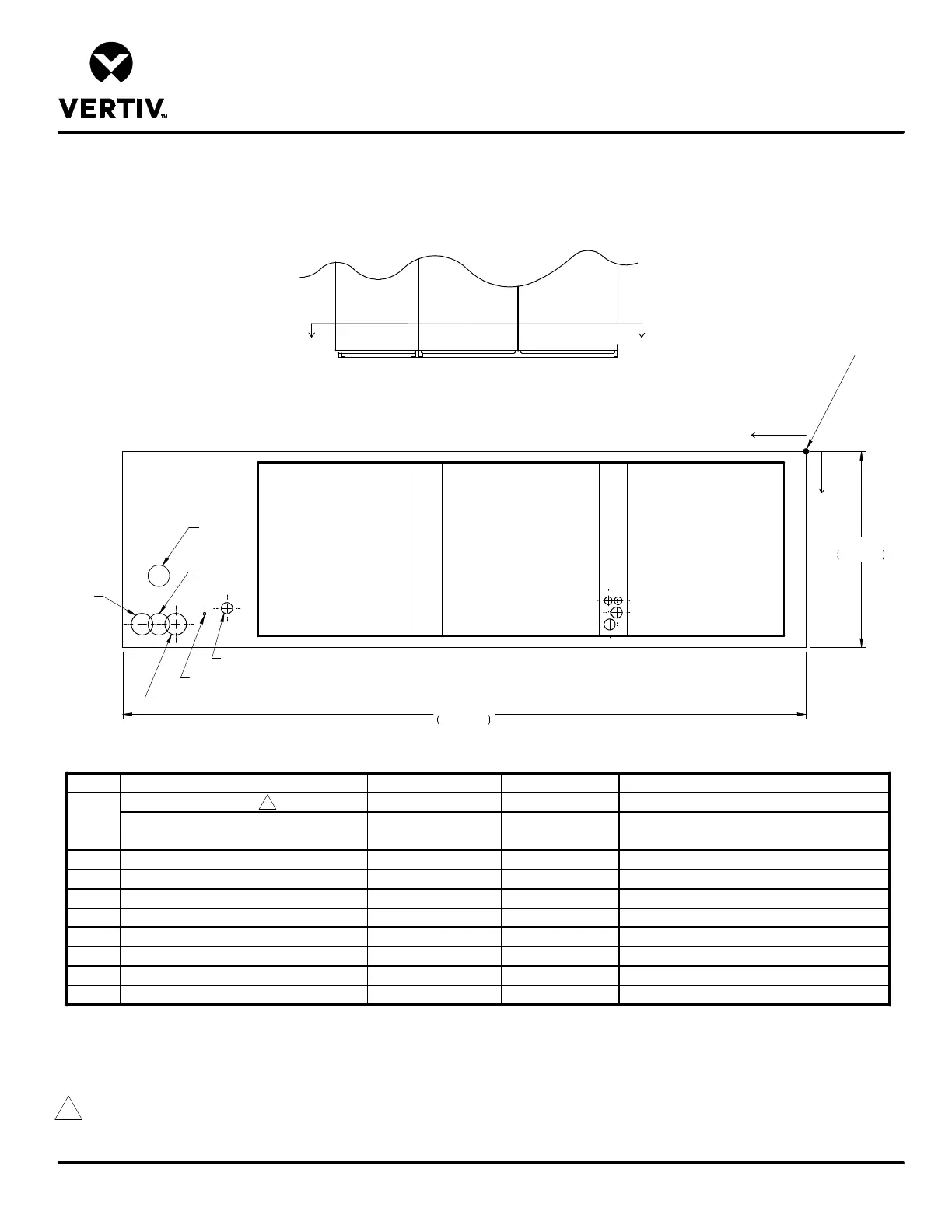

PRIMARY CONNECTION LOCATIONS
LIEBERT CW
FRONT OF UNIT
FRONT VIEW
SECTION A-A
ALL DIMENSIONS FROM
REAR CORNER OF UNIT
INCLUDING PANELS
A A
POINT DESCRIPTION X Y CONNECTION SIZE / OPENING
CONDENSATE DRAIN 103-1/2" (2629mm) 28" (711mm) 1-1/4" NPT Female
W/ OPTIONAL PUMP 103-1/2" (2629mm) 28" (711mm) 1/2" O.D. Cu
HUM HUMIDIFIER SUPPLY LINE 107-1/2" (2731mm) 29" (737mm) 1/4" O.D. Cu
CWS 2 2-WAY CHILLED WATER SUPPLY 118-1/2" (3010mm) 31" (787mm) CW106: 2-1/8"; CW114: 2-5/8"
CWS 3 3-WAY CHILLED WATER SUPPLY 115-1/2" (2934mm) 31" (787mm) CW106: 2-1/8"; CW114: 2-5/8"
CWR 2 2-WAY CHILLED WATER RETURN 112-1/2" (2858mm) 31" (787mm) CW106: 2-1/8"; CW114: 2-5/8"
CWR 3 3-WAY CHILLED WATER RETURN 115-1/2" (2934mm) 22" (559mm) CW106: 2-1/8"; CW114: 2-5/8"
E1 ELECTRICAL CONN. (HIGH VOLT) 35" (889mm) 31" (787mm) 2"
E2 ELECTRICAL CONN. (HIGH VOLT) 34" (864mm) 29" (737mm) 2"
LV1 ELECTRICAL CONN. (LOW VOLT) 35.5" (902mm) 26-1/2" (673mm) 1-3/8"
LV2 ELECTRICAL CONN. (LOW VOLT) 33.5" (851mm) 26-1/2" (673mm) 1-3/8"
CD
122"
3099mm
35"
889mm
CWS 2
CWS 3
Y
X
O
LV1
LV2
E1
E2
HUM
CD
CWR 2
CWR 3
Notes:
1. Drawing not to scale. Tolerance on all piping dimensions is ± (13mm) 1/2".
2. Field pitch Condensate Drain line a minimum of 1/8" (3.2 mm) per foot (305 mm). All units contain a factory installed condensate trap. Do not trap
external to the unit. Select appropriate drain system materials. The drain line must comply with all local codes.
2
Blower
Outlet
Blower
Outlet
Blower
Outlet
