3. Referring to Figure 4.5 below:
• Alignthe slings as described previously.
• Use spreader bars or equivalent device toensure proper protection of the unit (Item 1).
• Remove the lag bolts from eachbracket located around the base, and remove the brackets (Item 2).
NOTE: Depending on final installation location, the skid may need to remain under the unit. Therefore,
the lag bolts and brackets would not yet be removed.
• Lift the unit off the skid to an elevationpoint where the skid is not supporting the weight of the unit and
remove the skid from under the unit (Item 3).

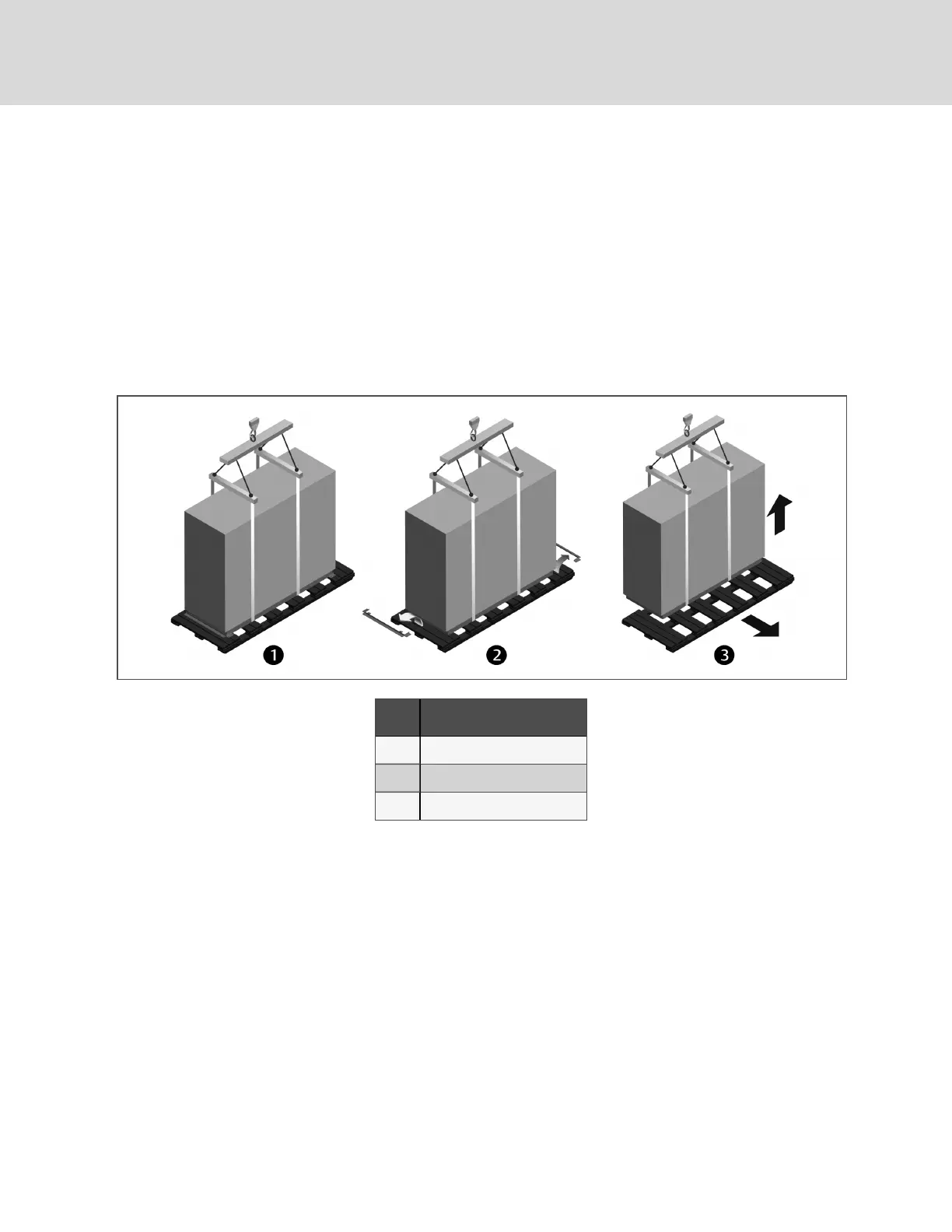

Figure 4.5 Moving unit with rigging
Item Description
1 Spreaderbarsandriggingonunit.
2 Removelagboltsandbrackets.
3 Lift the unitandremove the skid.
3.3.3 Moving the Unit to the Installation Location Using Piano Jacks
Refer to Figure 4.6 onthe facing page.
1. With the unit elevated, positionpiano jacks at eachend of the unit.
2. Lower the unit to a height suitable for the pianojacks, place protective material betweenthe unit and the piano
jacks and straps.
Vertiv | Liebert® CW™Installer/User Guide
28
