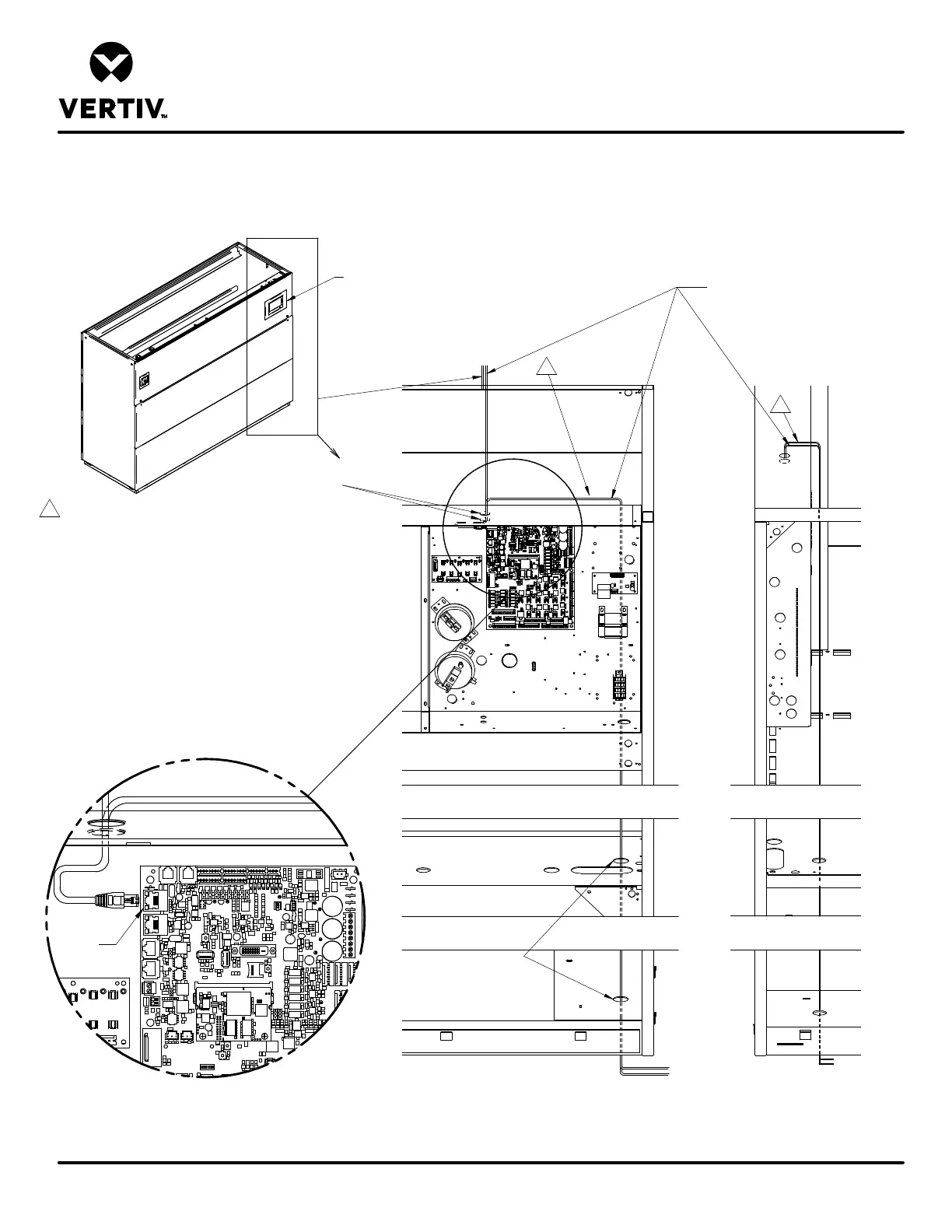

ELECTRICAL FIELD CONNECTIONS
LIEBERT CW
Top Entrance
Electric Box Bottom
Coil Support Frame
Unit Bottom
Bottom Entrance
Remove knockouts.
Low Voltage Communication Wiring
CAT5E Ethernet connections – field installed
Avoid routing near high voltage wiring.
Secure wiring to prevent damage and
use bushing or edge guard to avoid sharp edges.
Remove knockouts
to access control board.
P64
1. To provide unit to unit (U2U) networking, the customer
must first connect an Ethernet cable from P64
on the iCOM control board, to a network switch.
Notes:
1
1
MONITORING
PANEL
Front of Unit
Right side of Unit
DOWNFLOW MODELS CW038 - CW084
FOR NETWORK ETHERNET CONNECTIONS
NOTE: Refer to specification sheet for full load amp and wire size amp ratings.
