DOWNFLOW MODELS CW106 & CW114
Form No.: DPN001040_REV4
ELECTRICAL FIELD CONNECTIONS
LIEBERT CW
REV : 1
REV DATE : 4/19
DPN004549
Page :2 /2
NOTE: Refer to specification sheet for full load amp and wire size amp ratings.

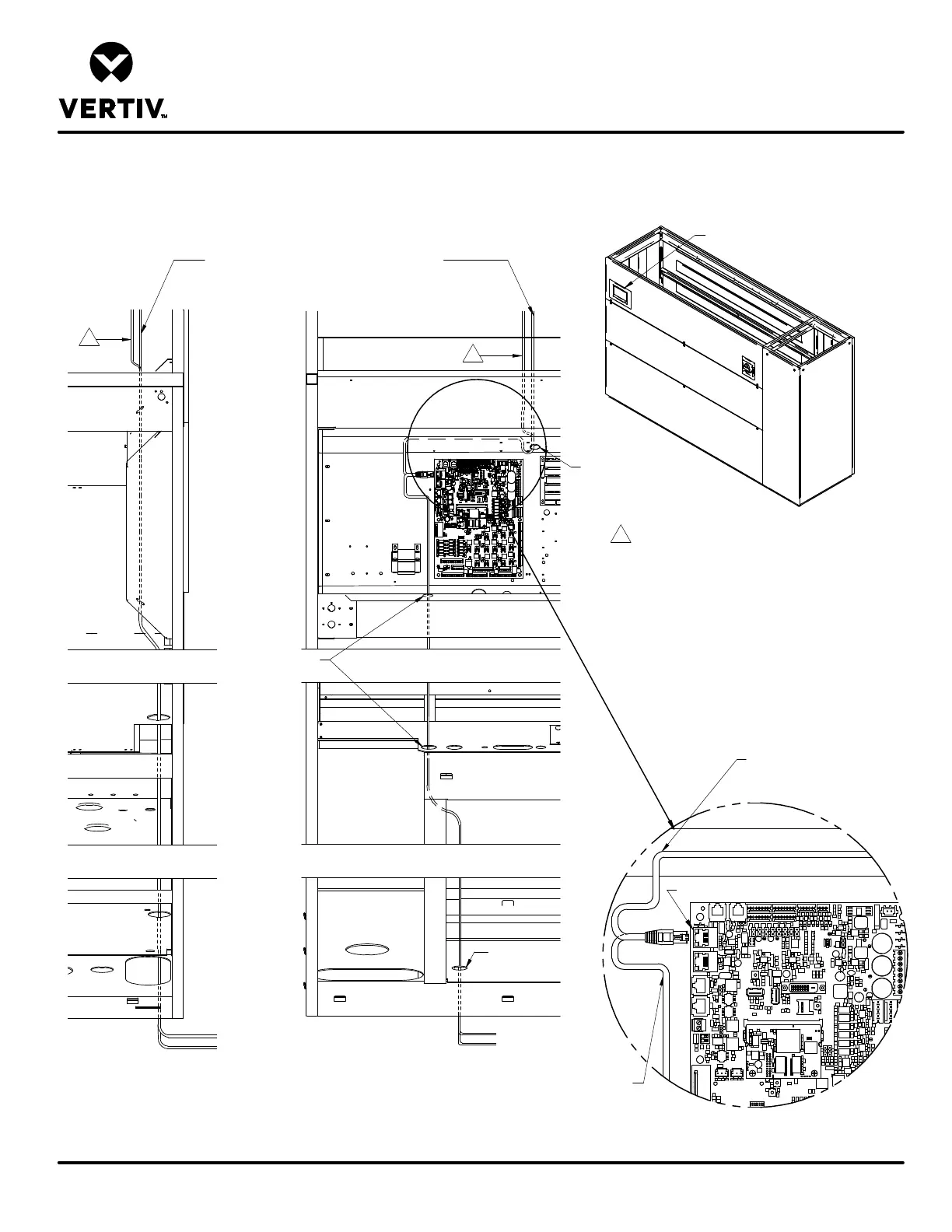

Low Voltage Communication Wiring
CAT5E Ethernet connections – field installed
Avoid routing near high voltage wiring.
Secure wiring to prevent damage and
use bushing or edge guard to avoid sharp edges.
Remove knockouts
to access control board.
Top Entrance
Electric Box Bottom
Coil Support Frame
Unit Bottom
Bottom Entrance
Monitoring Panel
1. To provide unit to unit (U2U) networking, the customer
must first connect an Ethernet cable from P64
on the iCOM control board, to a network switch.
Notes:
1
1
Remove knockout
to access control board.
Remove knockout
P64
Wire routing from
the top of the unit
Wire routing from
the bottom of the unit
To Next Page
