4.8 Sound emission
The actual sound emission of the machine varies
heavily depending on the manufacturing material and
the machining conditions.
If the machine is exceptionally loud, check the fol-
lowing operating conditions:
n
Cleanliness of the blank holder
n
Condition of the tools
n
Quality of the blanks
If loud noise cannot be avoided, wear ear protection
during machining.
Sound measurement
Measuring conditions:
n
Processed material: CoCr
n
Tool status: new
n
Measured value: sound pressure level (distance:
1m)
n
Measurement according to ISO 3746, survey
method 3
Established sound emission:
Operating condition
A-weighted
sound pressure
level
Processing 71 dB(A)
All other operating conditions (tool
change, movement of the axes etc.)
<70 dB(A)
4.9 Location of the identification
plate & serial number
The identification plate of the machine contains identi-
fying information such as the serial number. You can
find the identification plate and machine serial number
at the following location:  Front side of the machine –
on page10
4.10 Axes
This machine has 5 axes: 3 linear axes and 2 rotary
axes.
4.10.1 Linear axes
The spindle moves along these axes.

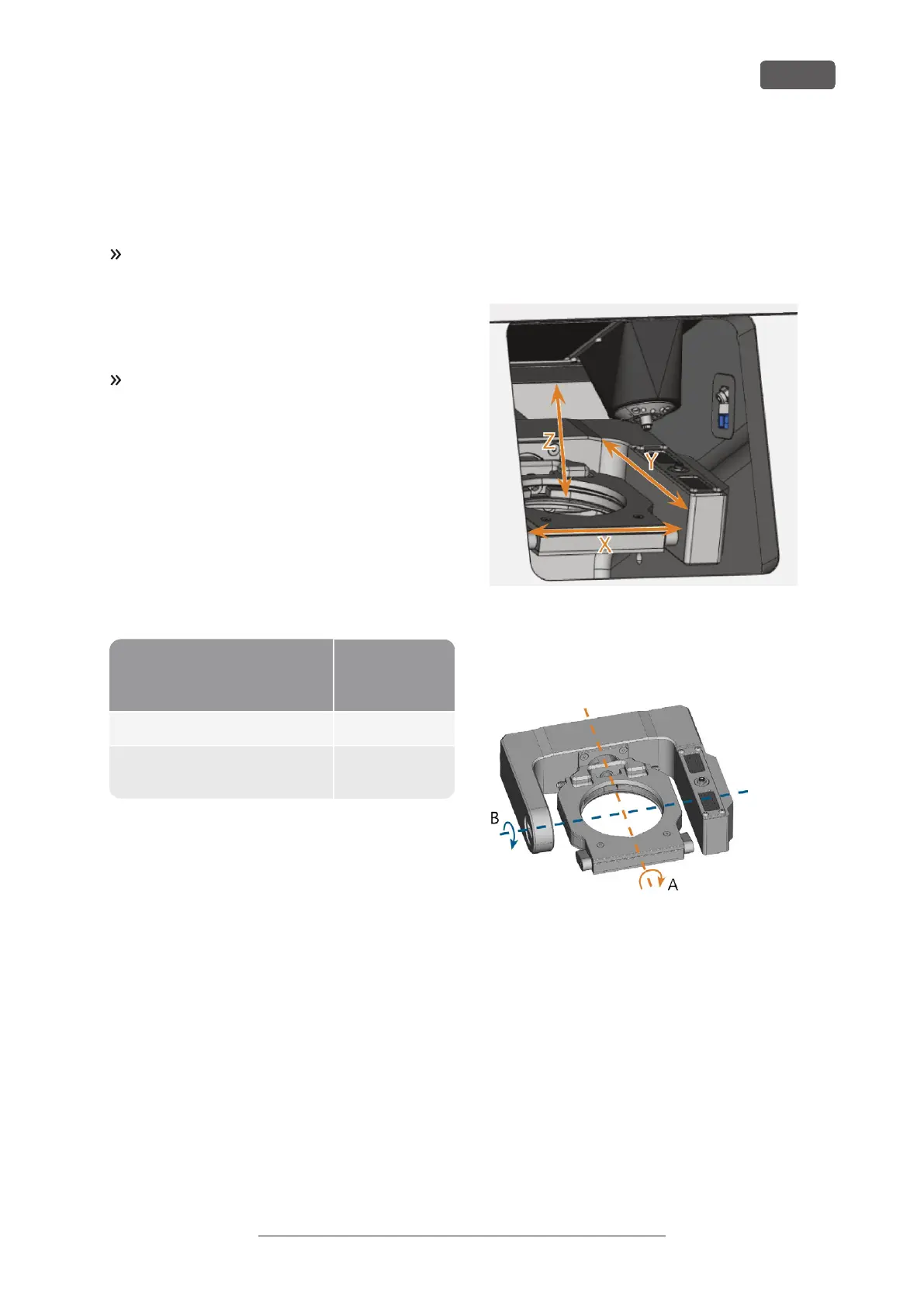

FIG. 7 K5+:LINEAR AXES
4.10.2 Rotary axes
The blank holder rotates about these axes.
FIG. 8 K5+: ROTARY AXES
K5+ – Machine overview
EN 13
