5 INSTALLING THE
MACHINE

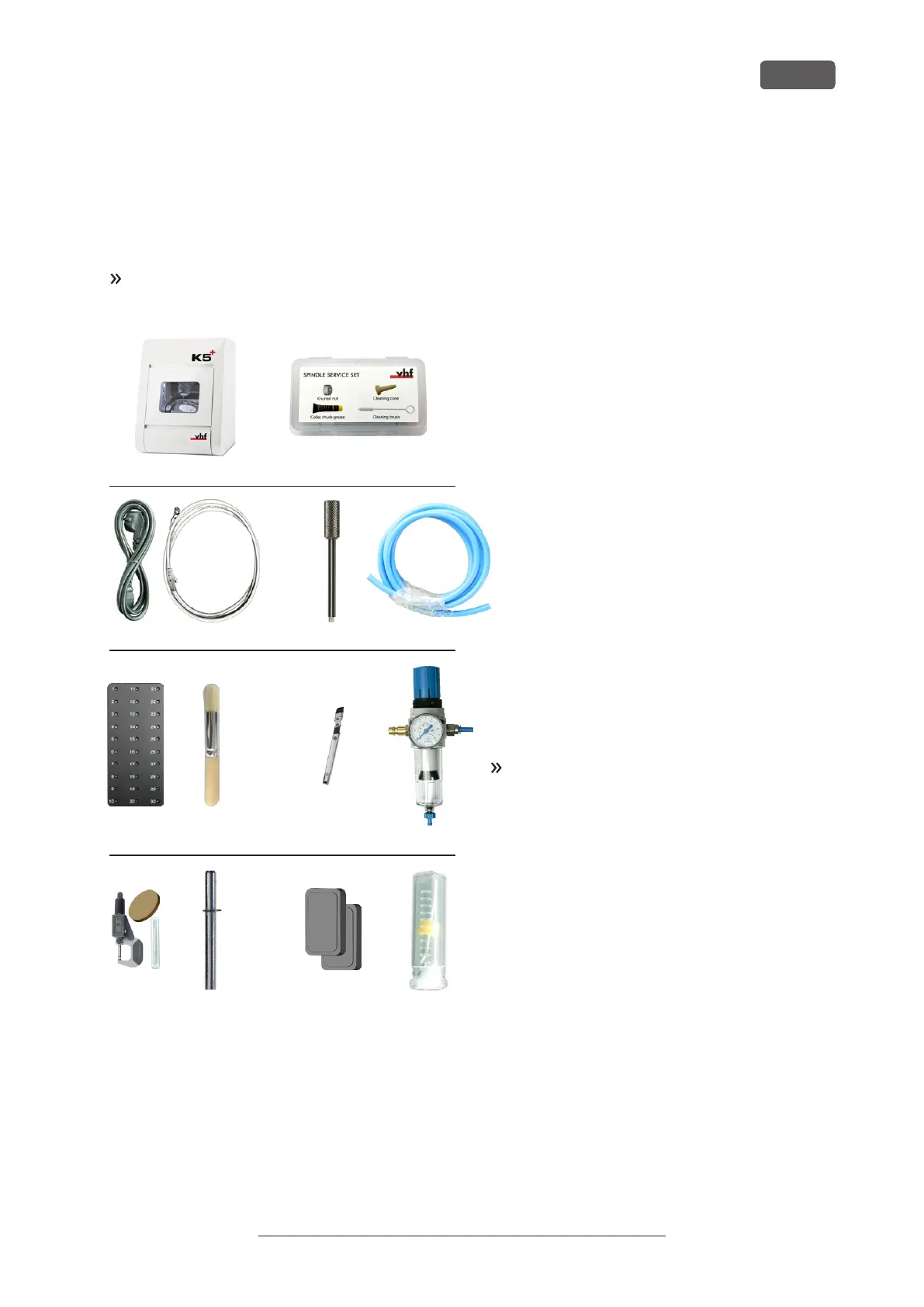

5.1 Checking the scope of delivery
Unpack the machine and ensure that you have
received the following items:
1 2
3 4 5 6
7 8 9 10
11 12 13 14
1. 1xMachine K5+
2. 1xSpindle service set
3. 1xPower cable
4. 1xEthernet network cable (type: straight)
5. 1xKey for the emergency release of the working chamber
door
6. 1xPneumatic hose
7. 1xAdministrated tool board (ATB) in the accessories con-
tainer
8. 1xCleaning brush for the blank holder in the accessories
container
9. 1xCrevice nozzle (for cleaning the working chamber)
10. 1xCompressed air regulator
11. 1xCalibration set: 1 micrometer, 3 blanks for man-
ufacturing test and calibration specimen, 1 radius cutter
with 2 teeth (P200-R2-40)
12. 1xMeasuring pin
13. 2xTool magazine inserts
14. 1xDrill bit (2.8mm) for tool positions
Not depicted:
n
This document
n
1 x Carrying aid for transporting the machine
n
1 x Transport lock in the working chamber
n
1 x Supplement about removing the carrying aid
and transport lock
n
4 x Spare screw for the tool magazine cover
Keep the packaging of the machine, the carrying aid
and the transport lock for future transports.
