FIG. 38 UNSCREWING THE SCREW AT THE DESIRED POSITION
2. If the blank is a multilayer blank, orientate the blank
so that the top color layer is on top.
3. Position the block so that the positioning pin at the
block holder lies in the groove in the block shaft.

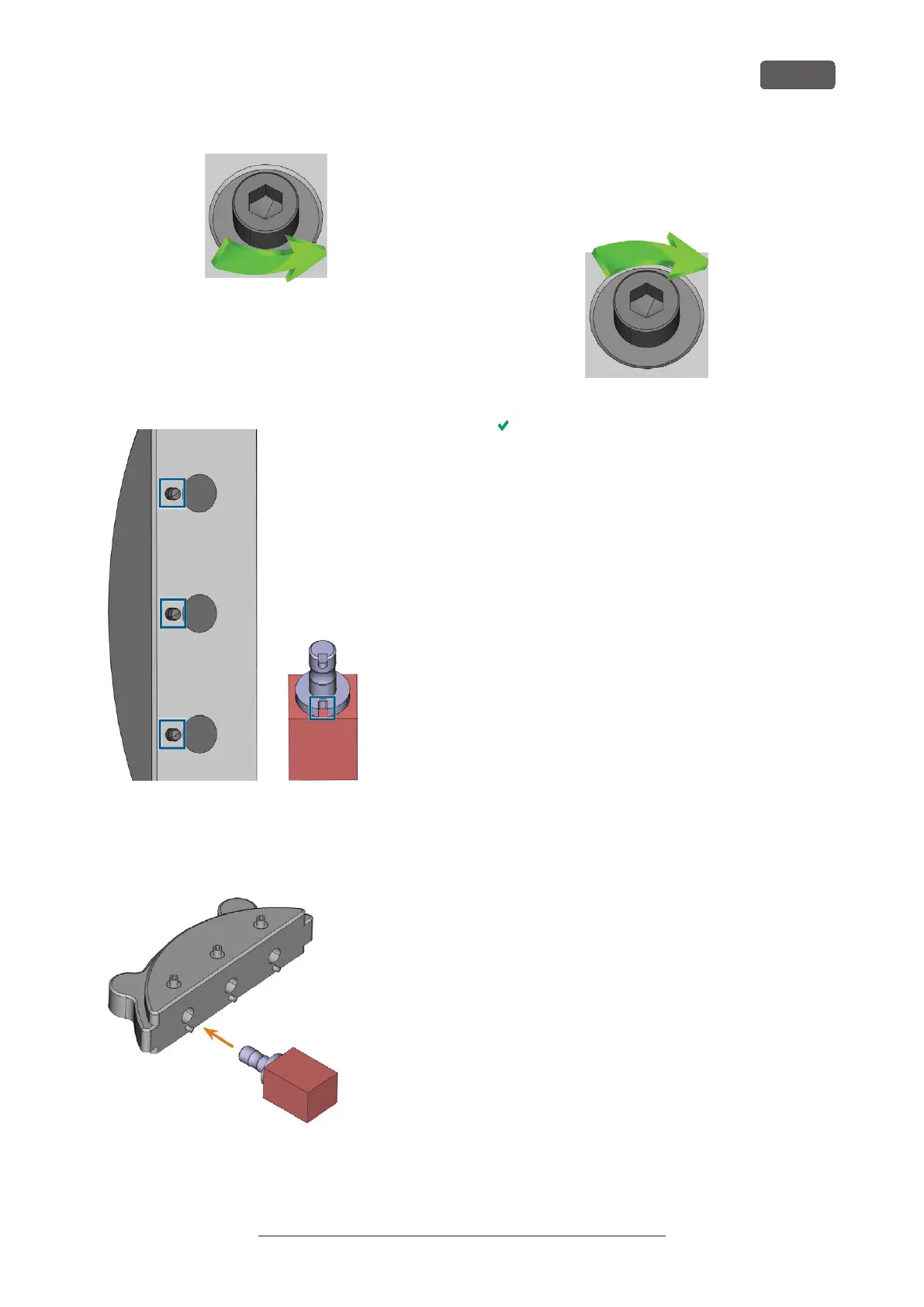

FIG. 39 POSITIONING PINS (LEFT MARKINGS) MUST LIE IN THE
GROOVE IN THE SHAFT (RIGHT MARKING)
4. Insert the shaft of the block into the desired pos-
ition in the block holder until it is firmly seated.
FIG. 40 S5M: INSERTING A BLOCK INTO THE BLOCK HOLDER
5. Use the provided torque wrench to fixate the block
with the corresponding fixing screw. Tighten the
screw firmly.
FIG. 41 SCREWING DOWN THE SCREW TO IMMOBILIZE THE BLOCK
You can now mount the block holder.
