Maintenance
59
Cutterbar
Be aware, when using oil
Use protective cream or protective gloves when handling oil.
It will protect your hands against skin injuries.
Direct contact with the oil could lead to serious skin injuries.
Use the correct oil type
Always use the correct oil type for the transmission.
This ensures a long lifetime for the transmission.
Use of incorrect oil type may lead to damage of the transmission.
Maintain correct oil level
Max. and min. indication for oil level on the transmission must not be
exceeded.
Correct oil level of the transmission ensures a long lifetime.
Wrong oil levels can cause heat development in the transmission, re-
sulting in serious damage.
Inspection - oil service

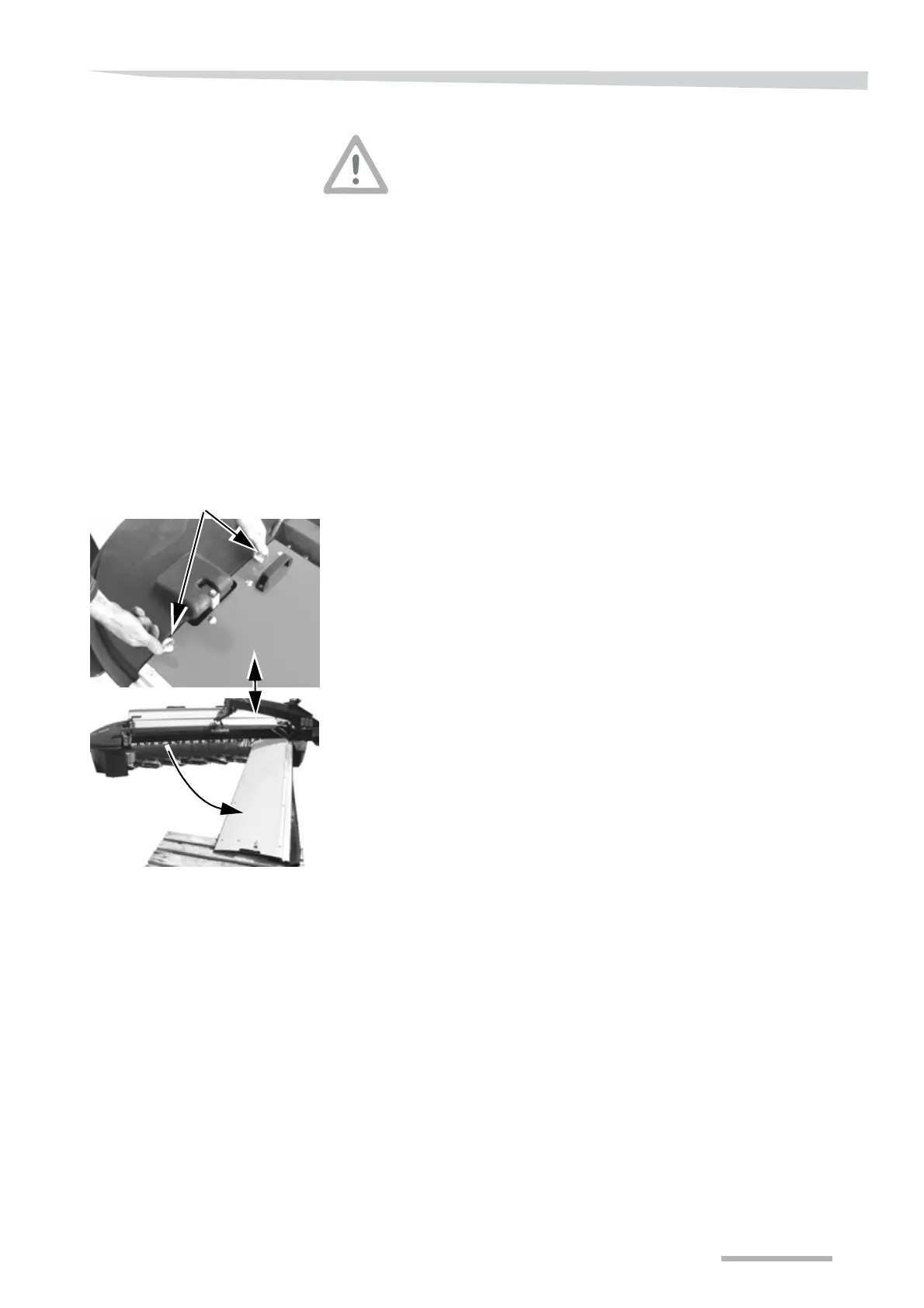

Inspection of the oil level for the cutterbar is carried out as follows:
> Place the machine on a level surface.
> Lower the cutterbar to the ground.
> Remove the ring nut shown.
> Open the machine's first protection.
Ring nut
