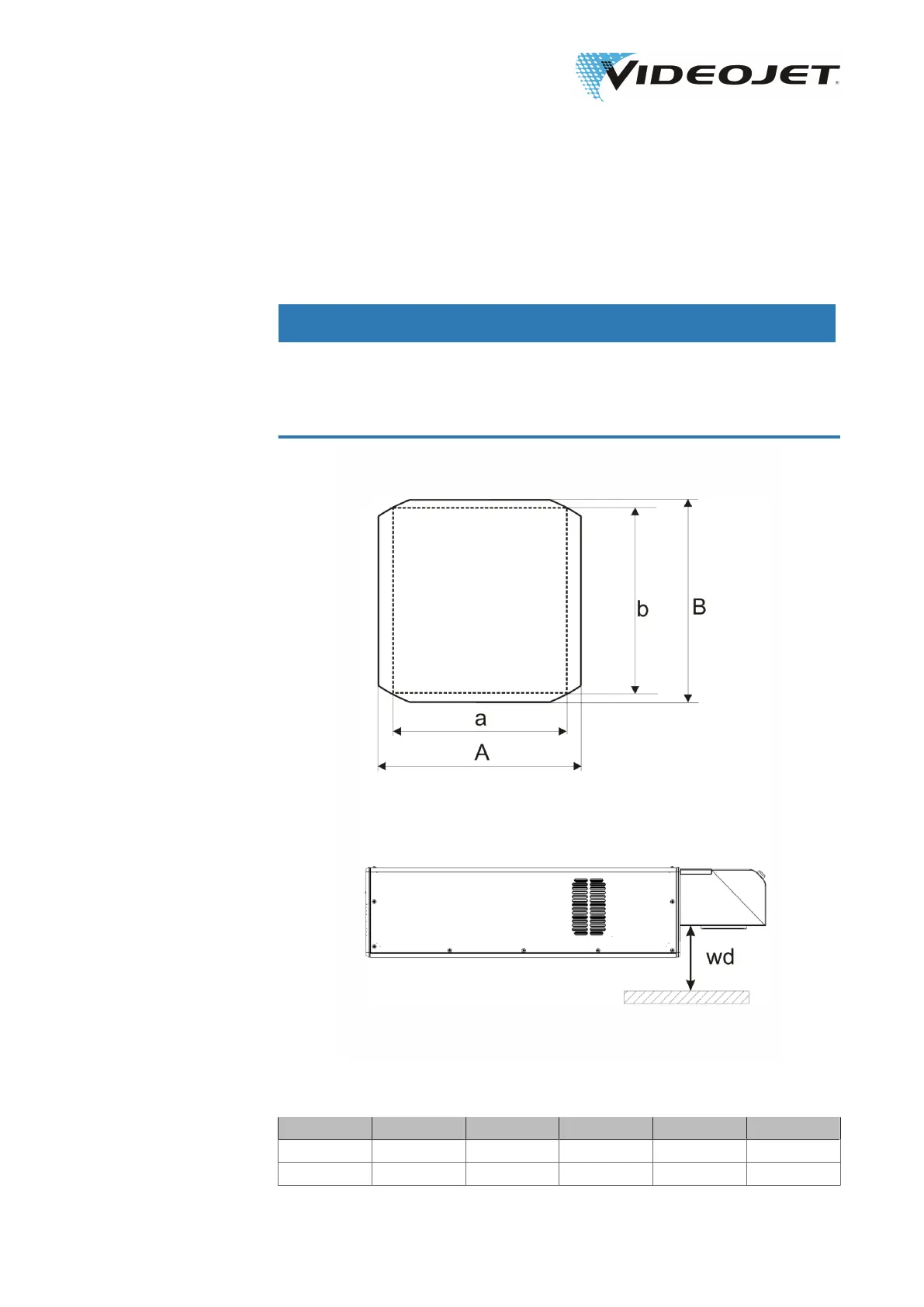

4.8 Working Distance and Marking
Field
NOTICE
The actual marking field depends on the configuration of the system.
The actual working distance can deviate up to ± 10 % of the focal length.
This tolerance might be exceeded slightly in rare cases with the focal lengths
F500 and F600.
Marking Head SHC 60D (all values in mm)
f wd A B a b
64 67 44.7 44.7 32.2 41.9
95 96.5 66.3 66.3 47.8 62.3
