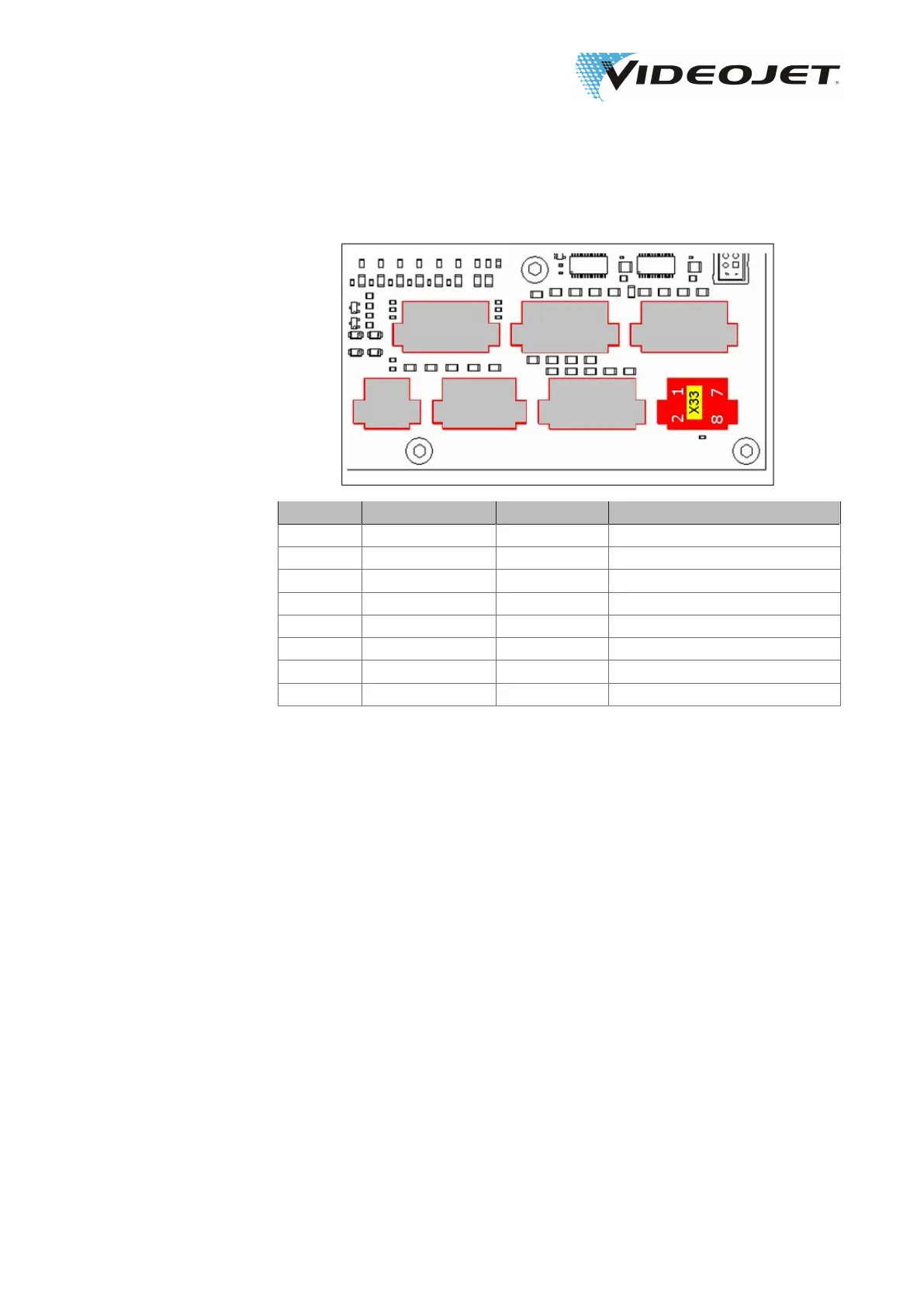

8.3.5 Assignment of Connector X33 Internal Signals
Terminal Signal In/Output Description
X33.1 EXT_KEY Input External input for key switch
X33.2 reserved Output
X33.3 reserved Output
X33.4 reserved Input
X33.5 NC -
X33.6 reserved Input
X33.7 NC -
X33.8 EXT_KEY Output External output for key switch
Input X33.1 must be potential-free from output X33.8.
