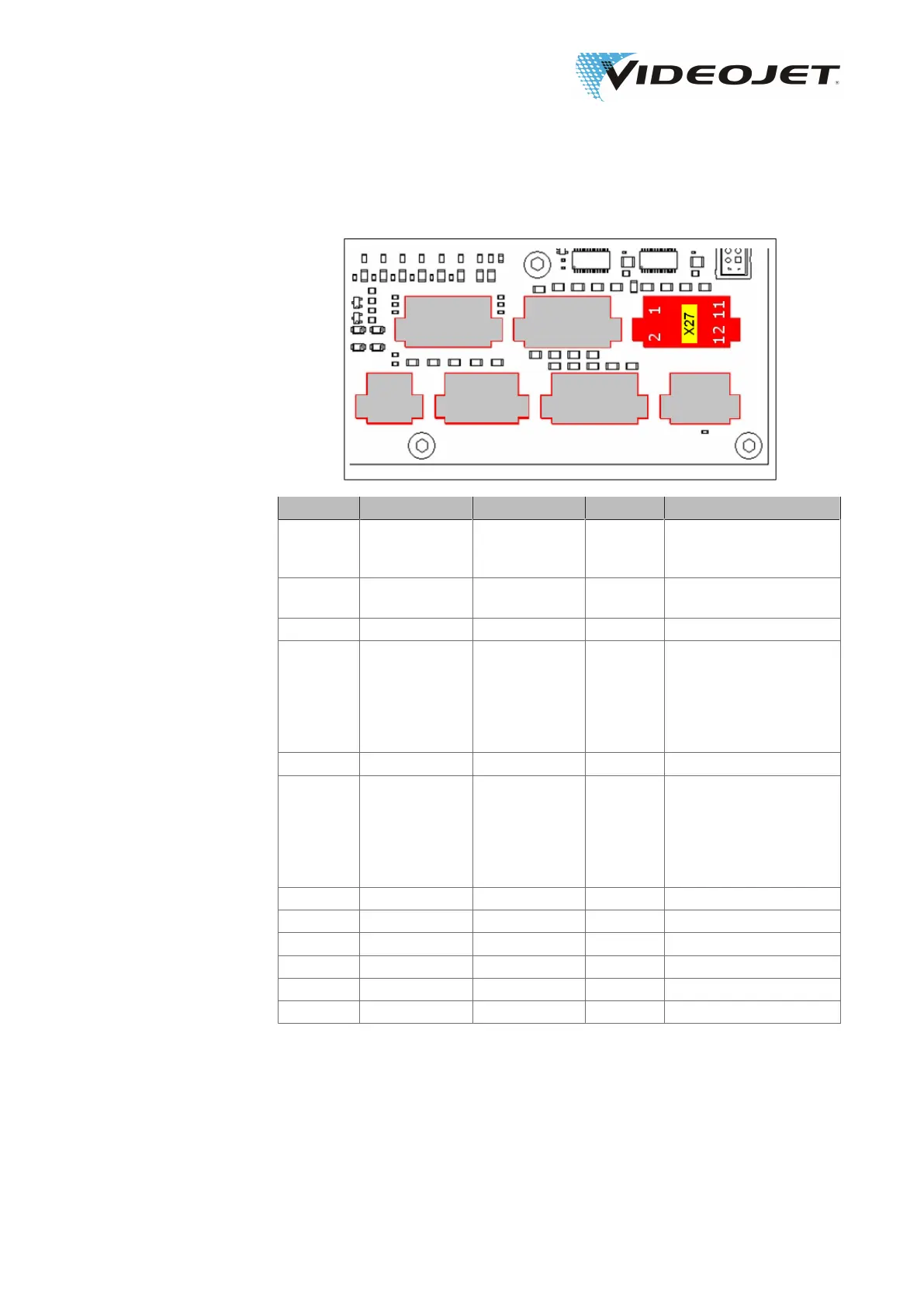

8.3.8 Assignment of Connector X27 Laser Control
Terminal Signal In/Output high/low Description
X27.1 SHUTDOWN Input high If this input is set to
"high" the system is shut
down.
X27.2 PC_CON-
NECTED
Output high Is set as soon as a PC is
connected.
X27.3 reserved Input high
X27.4 GOOD Output high Indicates that the last
marking has been car-
ried out without warning
or error message. This
output is reset by the
next trigger signal.
X27.5 reserved Input high
X27.6 BAD Output high Indicates that the last
marking was not com-
pleted due to a warning
or error message. This
output is reset by the
next trigger signal.
X27.7 reserved Input low Connected to X33.3
X27.8 reserved Output high
X27.9 reserved Input high
X27.10 GND_CI
X27.11 24V_CI
X27.12 GND_CI
