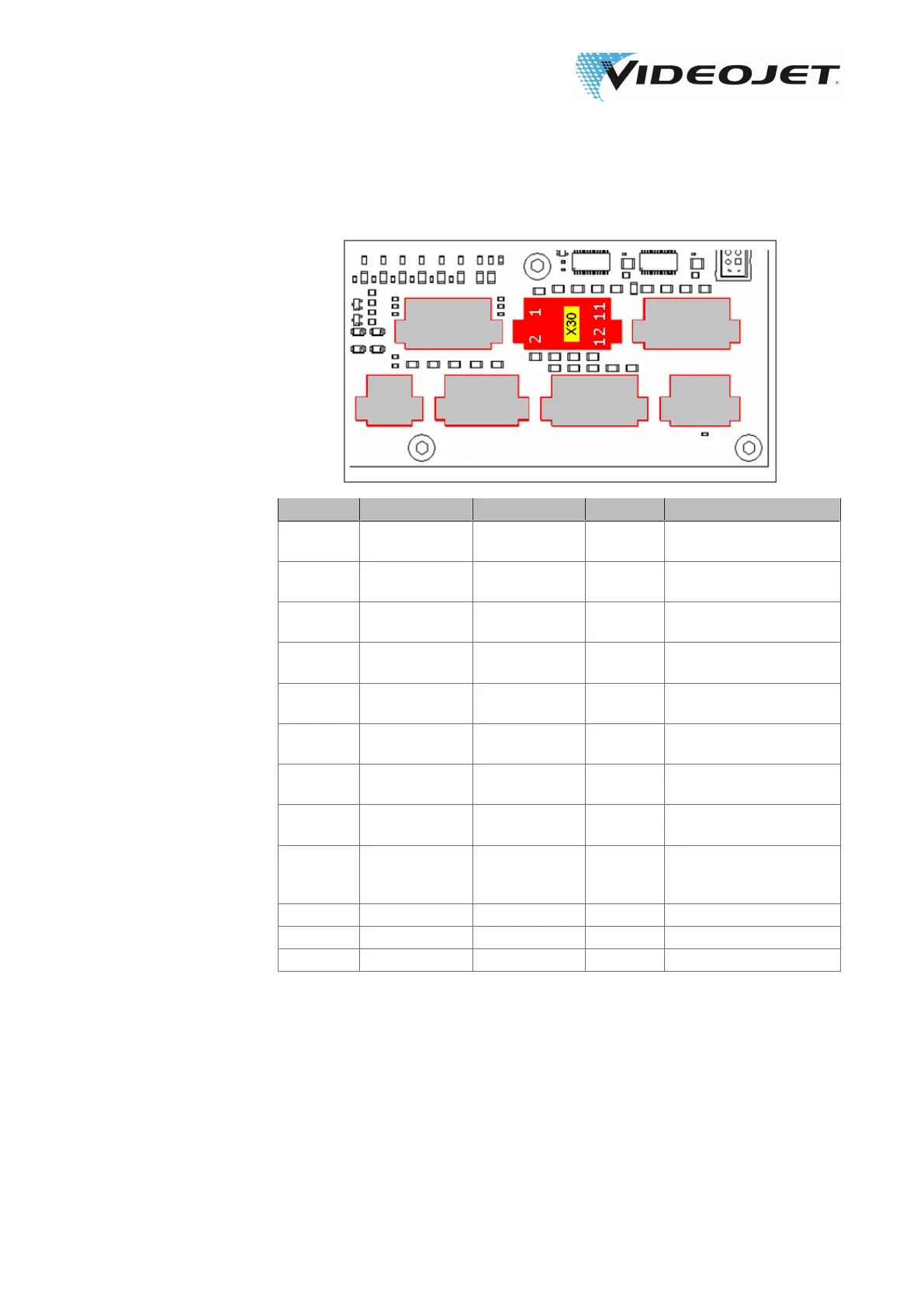

8.3.7 Assignment of Connector X30 External Job Selection

Terminal Signal In/Output high/low Description

X30.1 JOB_SE-

LECT_BIT_0

Input high Input for bitmask Bit 0

X30.2 JOB_SE-

LECT_BIT_1

Input high Input for bitmask Bit 1

X30.3 JOB_SE-

LECT_BIT_2

Input high Input for bitmask Bit 2

X30.4 JOB_SE-

LECT_BIT_3

Input high Input for bitmask Bit 3

X30.5 JOB_SE-

LECT_BIT_4

Input high Input for bitmask Bit 4

X30.6 JOB_SE-

LECT_BIT_5

Input high Input for bitmask Bit 5

X30.7 JOB_SE-

LECT_BIT_6

Input high Input for bitmask Bit 6

X30.8 JOB_SE-

LECT_BIT_7

Input high Input for bitmask Bit 7

X30.9 JOB_SE-

LECT_STROB

Input rising

edge

Strobe signal "read bit-

mask"

X30.10 GND_CI Output

X30.11 24V_CI Output

X30.12 GND_CI Output

09/17 - Index: AD [EN]

Videojet 3140/3340/3640/8 Appendix
