VIDEOJET 3140 - Assignment of Connector X21 Fume Extractor; Assignment of Connector X29 Laser Control

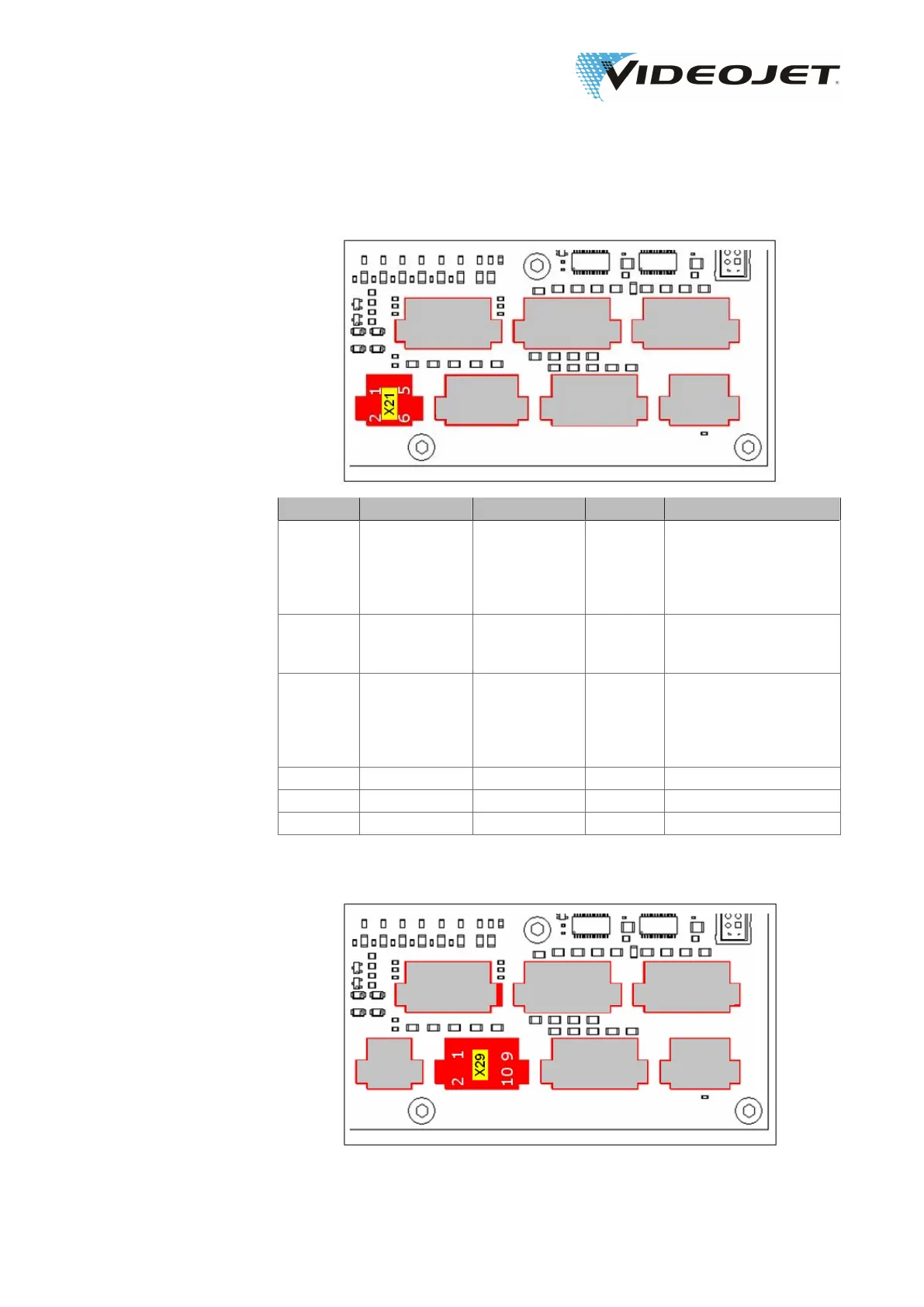

8.3.2 Assignment of Connector X21 Fume Extractor
Terminal Signal In/Output high/low Description
X21.1 EX-
HAUST_ER-
ROR
Input low The system is stopped
immediately if an error of
the fume extractor oc-
curs during the marking
process.
X21.2 EXHAUST_ON Output high This signal is set if the
fume extractor is to be
switched on.
X21.3 FILTER_FULL Input low The system is stopped
immediately if the filter
of the fume extractor is
full during the marking
process.
X21.4 GND_CI Output
X21.5 24 V_CI Output Power supply
X21.6 GND_CI Output
8.3.3 Assignment of Connector X29 Laser Control
09/17 - Index: AD [EN]
73
Videojet 3140/3340/3640/8 Appendix
