Terminal Signal In/Output high/low Description

X29.1 ERROR_STA-

TUS_CUS-

TOMER

Input low Connected to 24 V. The

signal is used to evalu-

ate error conditions.

X29.2 ERROR Output low The system is stopped

immediately if an error

occurs during the mark-

ing process.

X29.3 ERROR_CON-

FIRM

Input high Input for external error

confirmation.

X29.4 SYS-

TEM_READY

Output high SYSTEM_READY is set

as soon as the system

completed the boot se-

quence and is ready to

be controlled via the

customer interface. De-

activated in Service

Mode.

X29.5 reserved Input

X29.6 ACK_JOB_SE-

LECTION

Output high Low: Job selection com-

plete.

High: Job selection not

completed yet.

X29.7 +24V_CI Output

X29.8 GND_CI Output

X29.9 +24V_CI Output

X29.10 GND_CI Output

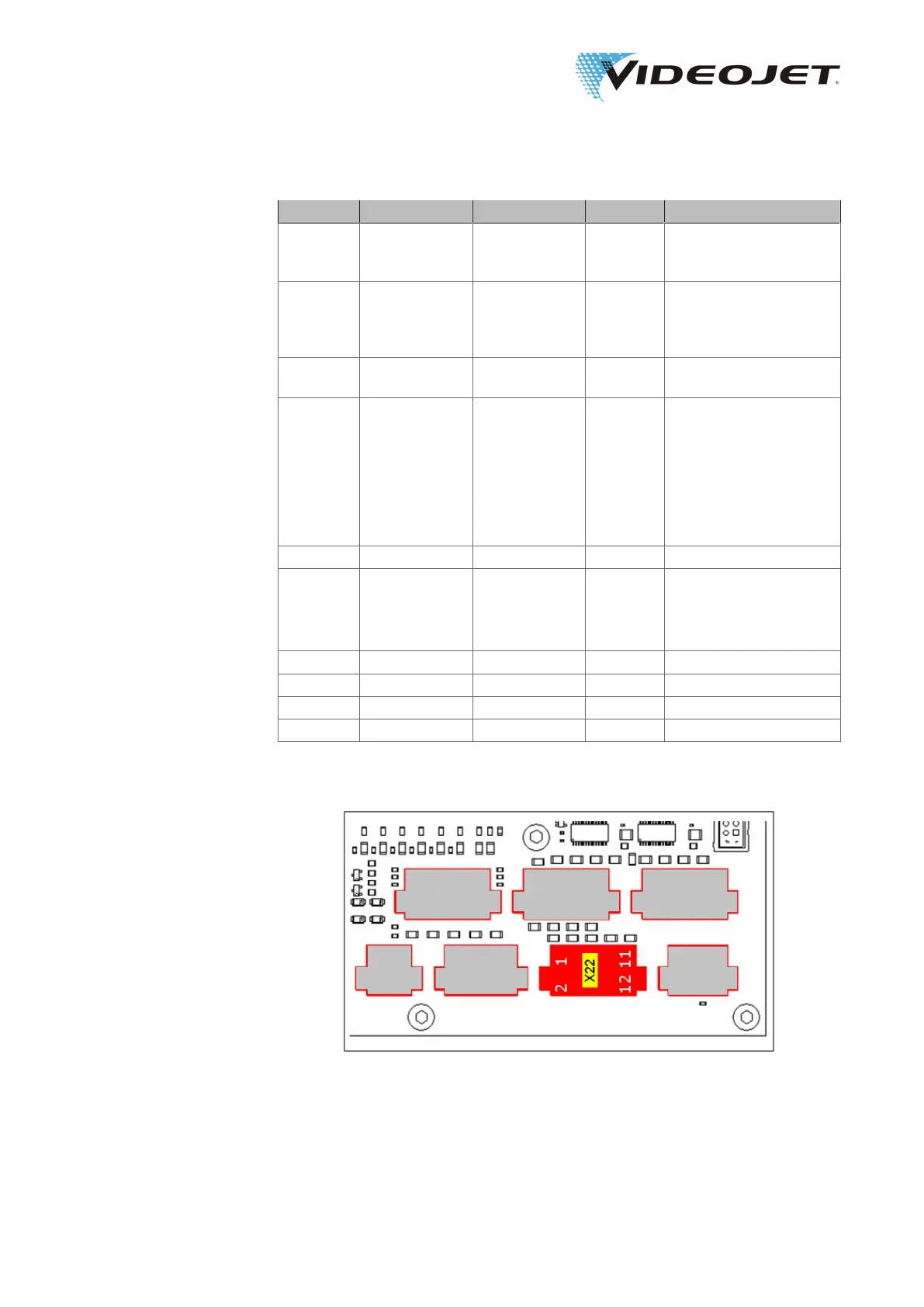

8.3.4 Assignment of Connector X22 Laser Control
