No. Type Function
L2 Emission -red- is on when the key switch is in posi-
tion »I« and the power is applied to the la-
ser source.
Simultaneously the red LED on the marking
head lights up.
L3 Error -yellow- flashes in case of malfunction.

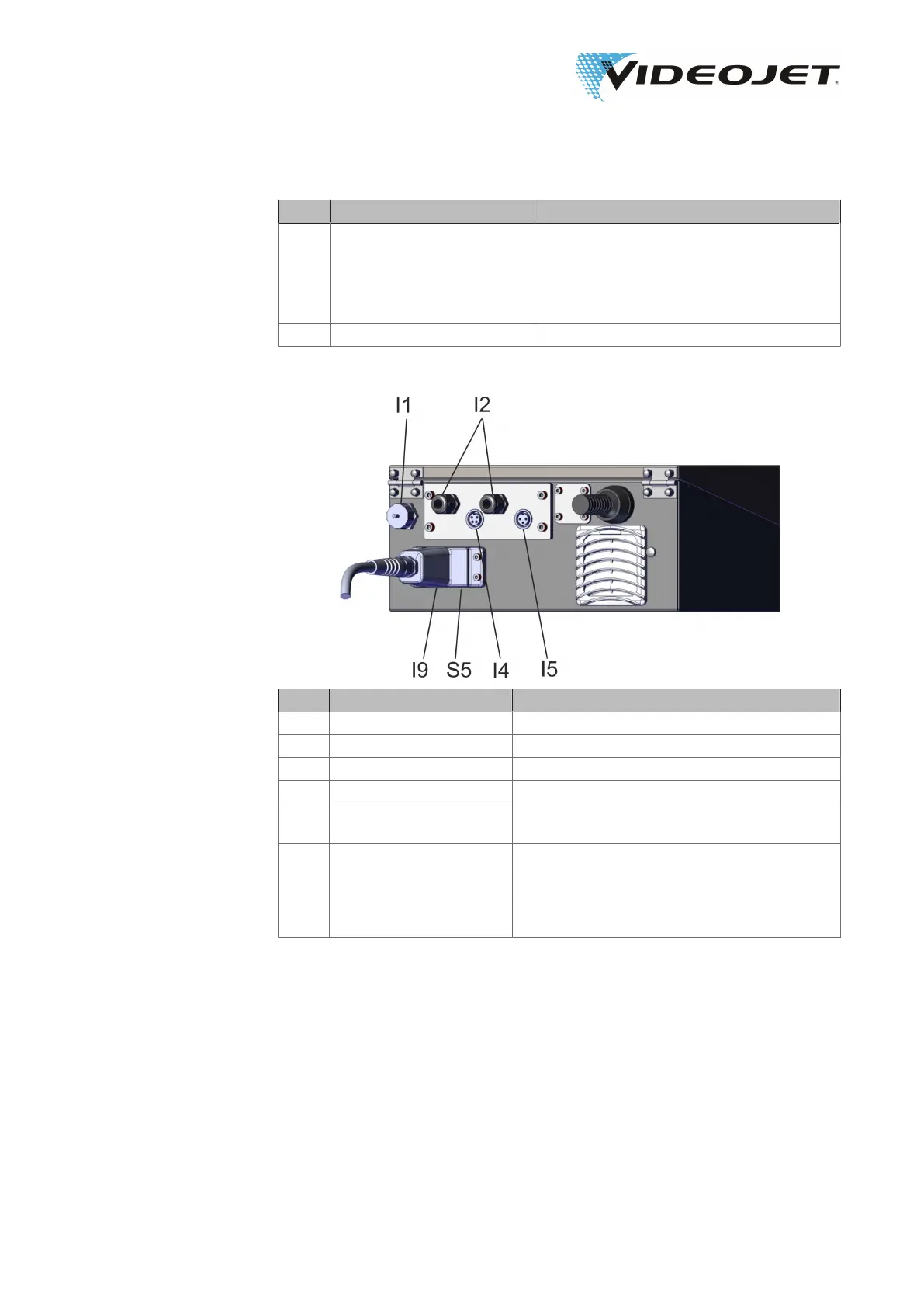

Backview of the supply unit (standard)
No. Type Function
I1 Socket Connection for ethernet
I2 Socket Cable feed through
I4 Socket Connection for encoder
I5 Socket Connection for product sensor
I9 Socket and fuse insert
(only 10/30 W)
Mains cable connection and two fuses (T8A,
behind the IP cover)
S5 Main power switch
(only 10/30 W)
switches the mains of the laser system on and
off.
The switch is always on behind the cover. For
complete separation the mains connector must
be disconnected from the power socket.
09/17 - Index: AD [EN]
38
Videojet 3140/3340/3640/5 Operating the Laser System
