Manual VIPA System 200V Chapter 1 Basics and Assembly
HB97E - CPU - RE_21x-1Bx06 - Rev. 13/20 1-11

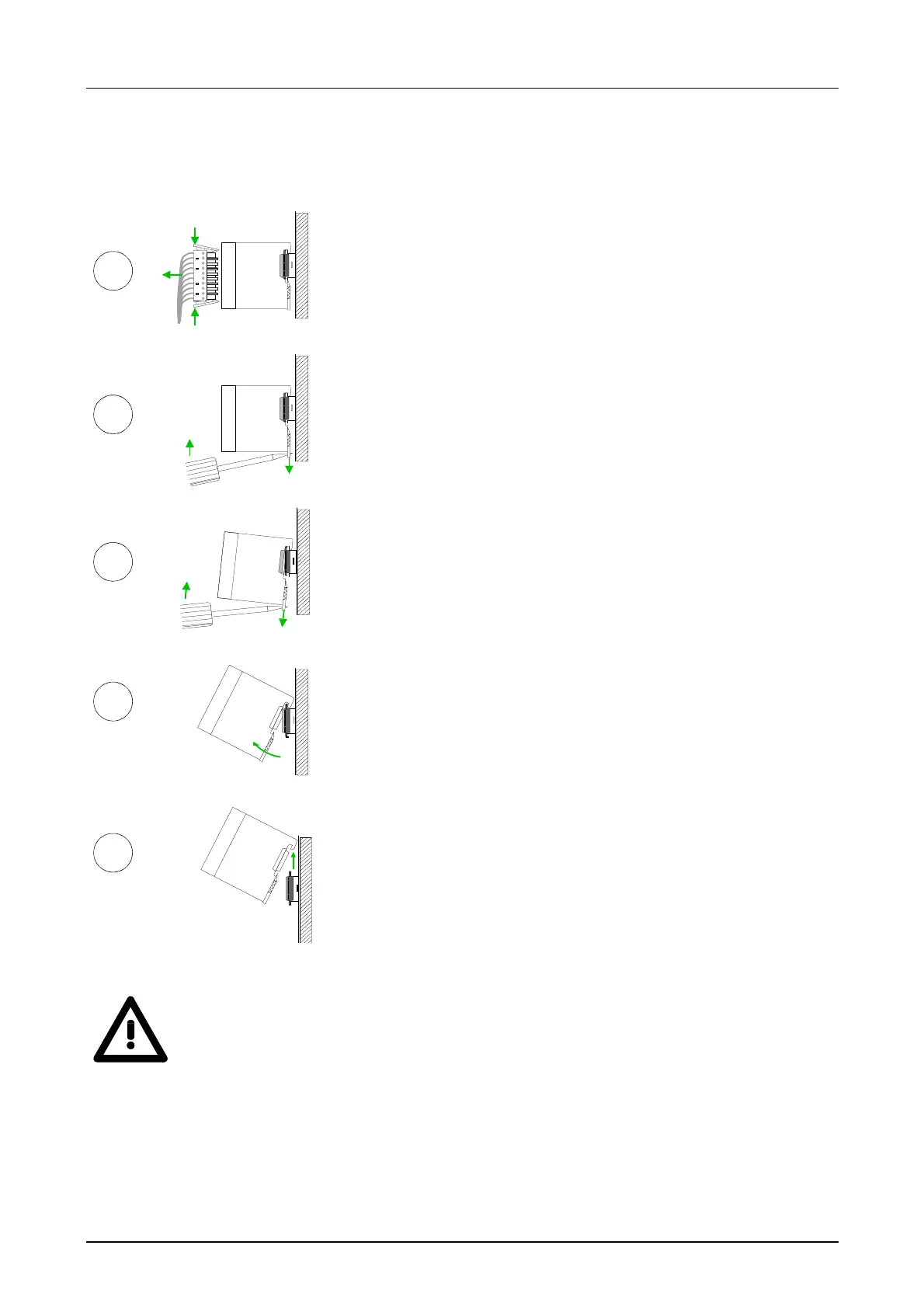

Demounting and module exchange
1
2
3
4
5
• Remove if exists the wiring to the module, by pressing both
locking lever on the connector and pulling the connector.
• The casing of the module has a spring loaded clip at the
bottom by which the module can be removed.
• The clip is unlocked by pressing the screwdriver in an upward
direction.
• Withdraw the module with a slight rotation to the top.
Attention!
Power must be turned off before modules are installed or
removed!
Please regard that the backplane bus is interrupted at the point
where the module was removed!
