Setting CPU parameters
Since the CPU from VIPA is to be configured as Siemens CPU 315-2DP
(315-2AG10-0AB00 V2.6) in the Siemens hardware configurator, the
parameters of the VIPA CPU may be set with "Object properties" of the
CPU 315-2DP during hardware configuration.

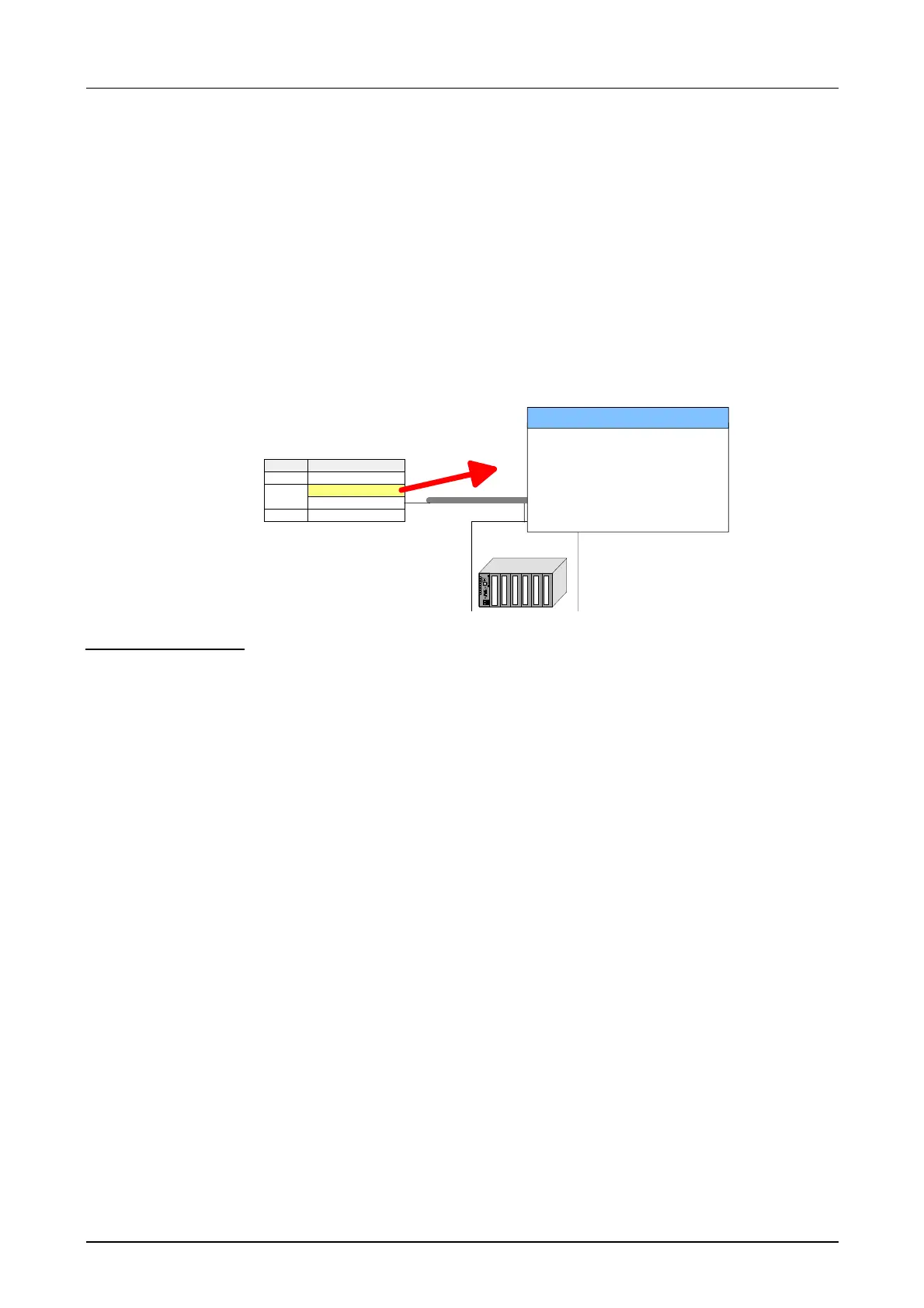

Via a double-click on the CPU 315-2DP the parameter window of the CPU
may be accessed.
Using the registers you get access to every standard parameter of the
CPU.
(1) VIPA_CPU
CPU 21x
CPU 214
PW
SF
FC
MC
R
S
RN
ST
MR
MMC
2
Module
CPU 315-2DP
DP
Slot
1
2
X2
3
Parameter CPU
Param : .........
Param : .........
Param : .........
Param : .........
Param : .........
Param : .........
Param : .........
Param : .........
The CPU does not evaluate each parameter, which may be set at the
hardware configuration.
The following parameters are supported by the CPU at this time:
The short description of the Siemens CPU 315-2AG10 is CPU 315-2DP.
Order number and firmware are identical to the details in the "hardware
catalog" window.
The Name field provides the short description of the CPU. If you change
the name the new name appears in the Siemens SIMATIC manager.
In this field information about the module may be entered.
If the checkbox for "Startup when expected/actual configuration differ" is
deselected and at least one module is not located at its configured slot or if
another type of module is inserted there instead, then the CPU does not
switch to RUN mode and remains in STOP mode.
If the checkbox for "Startup when expected/actual configuration differ" is
selected, then the CPU starts even if there are modules not located in their
configured slots of if another type of module is inserted there instead, such
as during an initial system start-up.
Parameterization
via Siemens
CPU 315-2AG10
Supported
parameters
General
Short description
Order No. /
Firmware
Name
Comment
Startup
Startup when
expected/actual
configuration differs
