3.2 Overview of Program Layout – Single Channel Reads
Figure 2 shows the flow of a typical program accessing the System 7000 scanner and performing single
channel readings (no scanning is performed).
Perform Configuration
Idle State
Connect to System and
Validate
Idle State
Acquire More
Data?
Change
Configuration?
Yes
Disconnect from
Scanner
No
Yes
NO
Perform a Single Reading
on One or More Channels
Idle State
Scale Reading (optional)

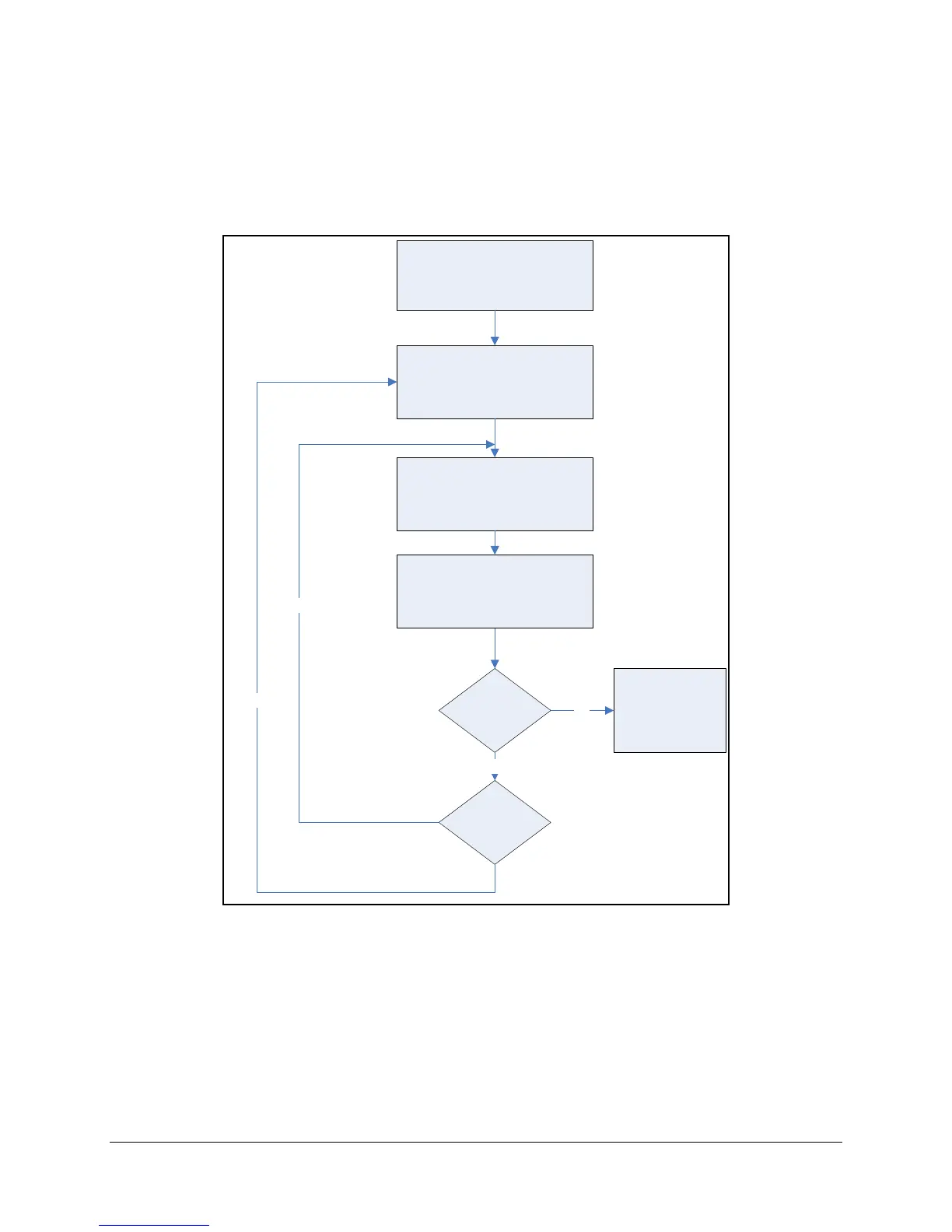

Figure 2 – Program Layout (Single Channel Reads)
