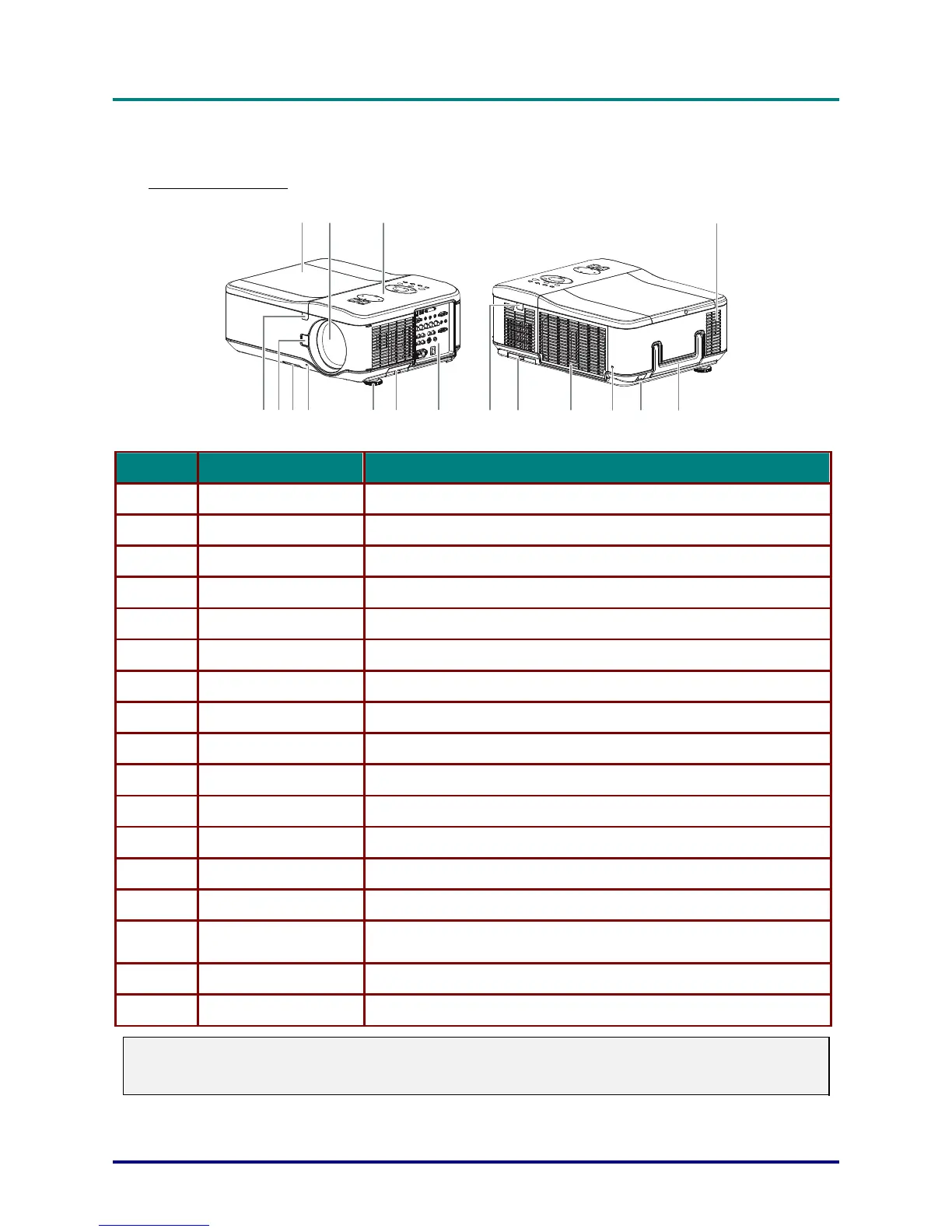

Views of Projector Parts
Front-right View
12 3
4
12 13 14 15 16 17567 8 9 10 11
ITEM LABEL DESCRIPTION
1.
Lamp cover Remove cover to replace lamp or color wheel
2.
Lens Remove lens cap before use
3.
OSD control panel See OSD Controls and Status LEDs
4.
Speakers Built-in stereo speakers
5.
IR receiver Receiver for IR signal from remote control
6.
Lens release button Press the release button before removing the lens
7.
Intake vent Lamp cooling vent – do not obstruct
8.
Lens cap Covers lens to protect when not in use
9.
Height adjuster Adjusts level of projector
10.
IR receiver Receiver for IR signal from remote control
11.
I/O connector panel Connect various input devices
12.
IR receiver Receiver for IR signal from remote control
13.
Rear intake vent Rear cooling intake – do not obstruct
14.
Exhaust vent Exhaust vent – do not obstruct
15.
Kensington lock
Attach the projector to a permanent object with the Kensington slot
and a security cable.
16.
Security chain lock Attach the projector to a permanent object using a security cable.
17.
Carrying handle Pull up the handle when carrying the projector.
Important:
Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool.
Do not obstruct any of the grill openings.
– 2 –
