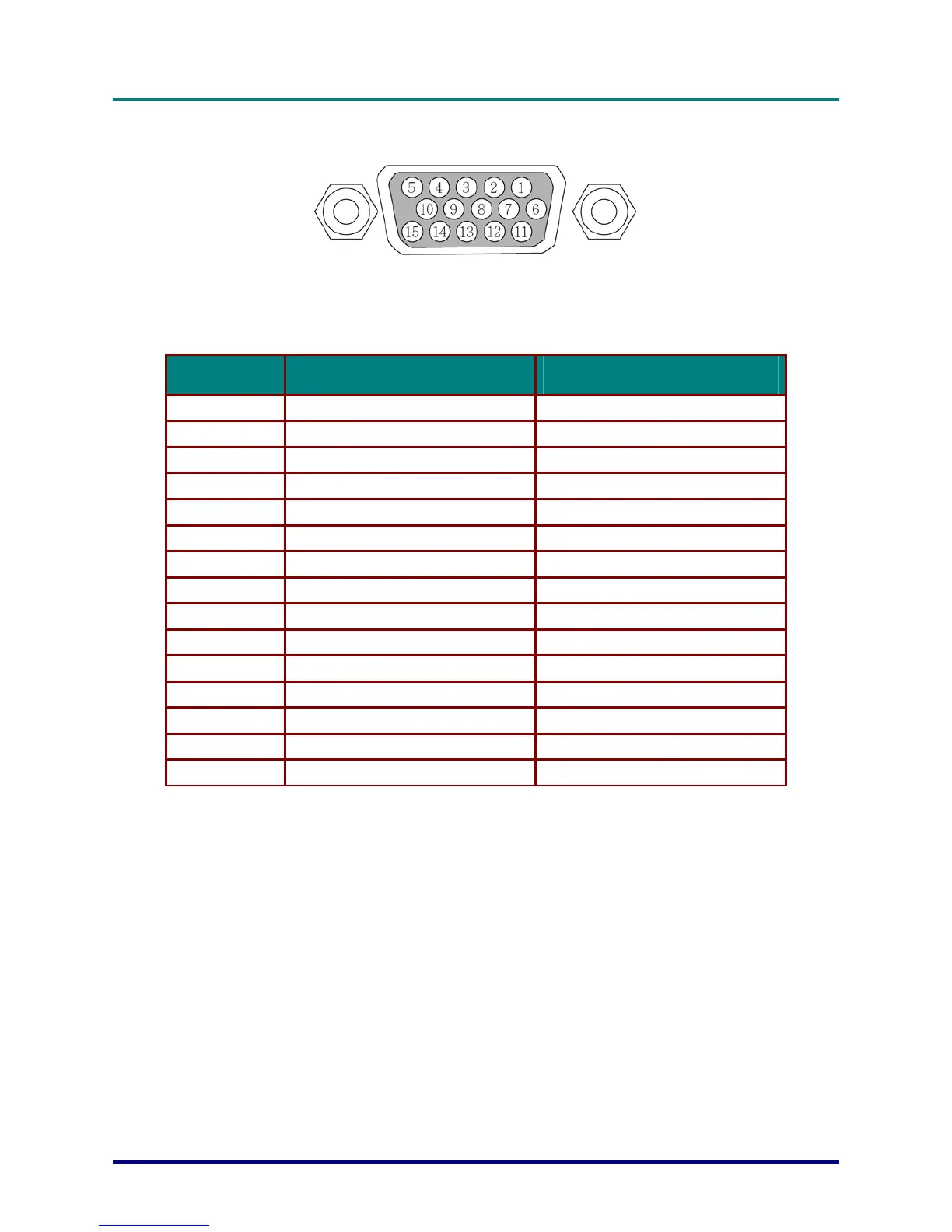

Pin Assignments of Mini D-Sub 15 Pin Input Connector
Signal Levels
Video signal: 0.7Vp-p (Analog)
Sync signal: TTL level
PIN NUMBER RGB SIGNAL (ANALOG) YCBCR SIGNAL
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock
