IMPORTANT:
It is important to leave a clearance of 10cm to
the rear side of the chassis. The clearance is
required to ensure an adequate airow through
the chassis to ventilate heat. A 5cm clearance is
also required on the front of the chassis.
To ensure normal operation, maintain ambient
airow. Do not block the airow around chassis
such as placing the system in a closed cabinet.
10cm
5cm
DI-
DO+
DI+
DO-
+12
VDC
Max.
VDC
Switch
BJT transistor
DI-
DO+
DI+
DO-
+12
VDC
VDC
Switch
BJT transistor
Relay
Relay
AC
Source
NO NC
AC
Device
AC
Source
AC
Device
NO
NC

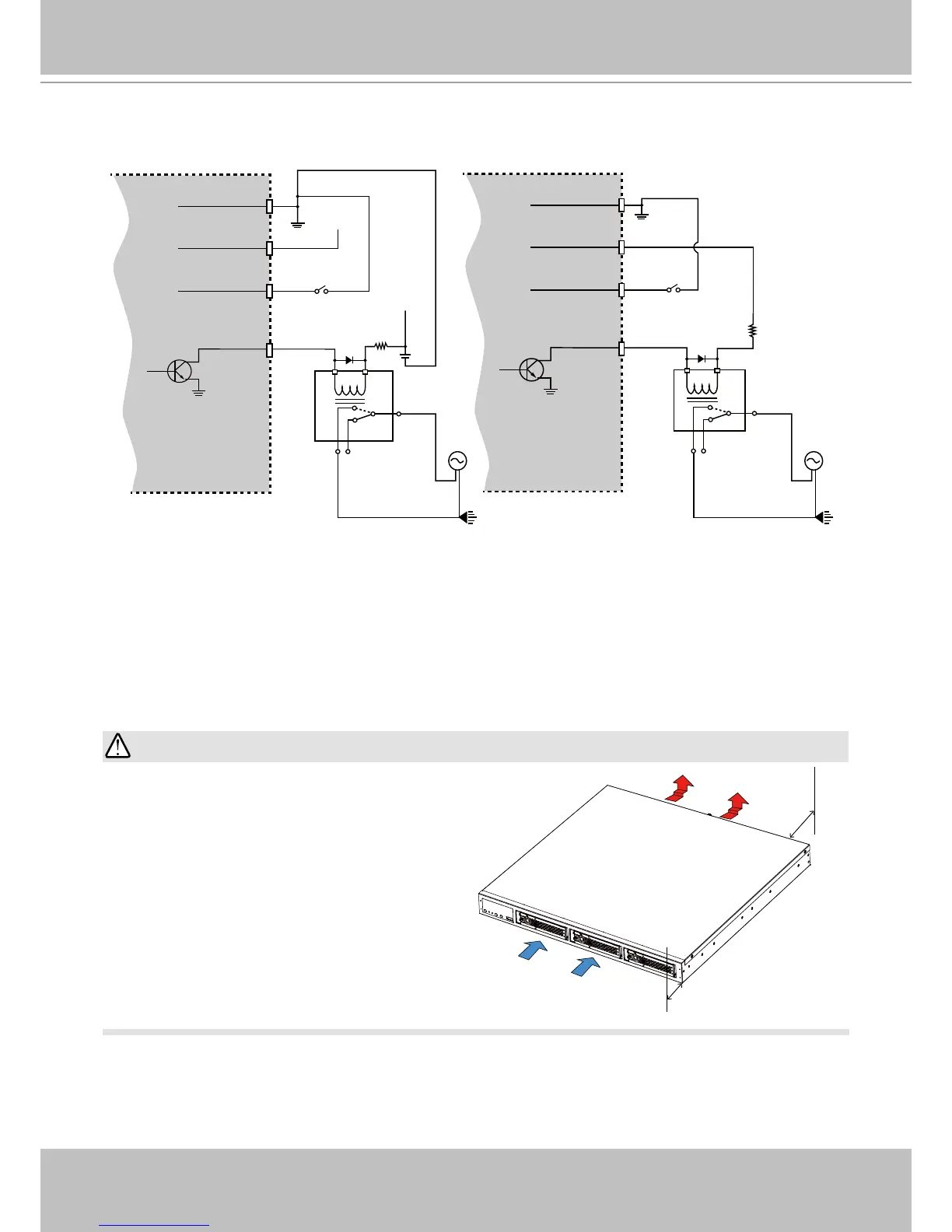

The digital output connection is diagrammed as follows:
The maximum load on DO pins is 50mA.
