j) Temperature measuring
During temperature measurement, only the
temperature sensor must be subject to the the tem-
perature to be measured. The meter’s working tem-
perature must not be undercut or exceeded. Other-
wise, there may be measuring errors.
The contact temperature sensor must only be used
at voltage-free surfaces.
Any K-type thermo sensor may be used for temperature meas-
urement.Thetemperaturecanbedisplayedin°Cor°F.Optional
sensors can be used for the complete measurement range (-200
to+1200°Cor-328to2192°F).

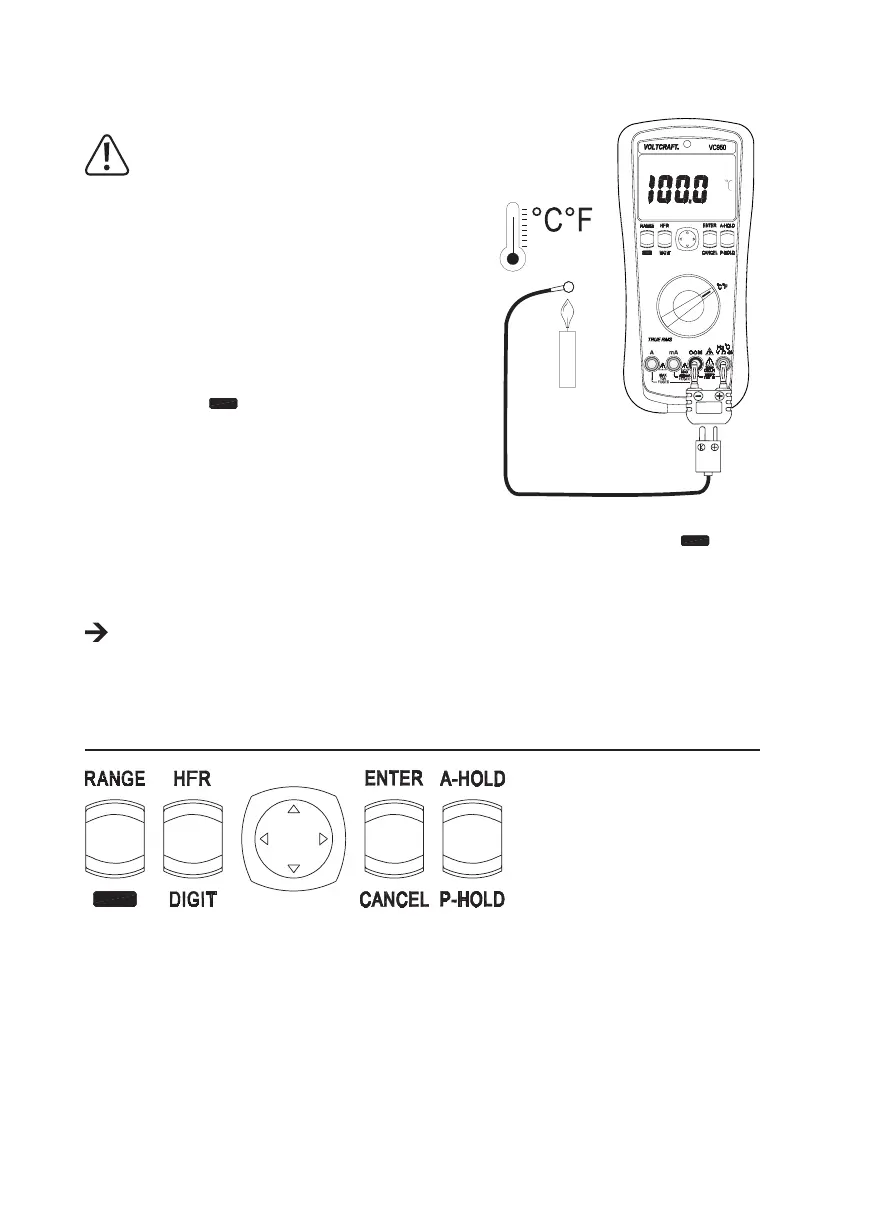

For measuring temperatures, proceed as follows:
- SwitchontheDMMandselectthemeasuringrange“°C°F”.
Press the button
to switch the measurement function
todisplayin°F.Pressingthisbuttonagaintakesyoutothefirst
measuring function, etc.
- PlugthethermosensorintotheVmeasuringjack(7)inthe
correct polarity with the plus pole and into the COM measuring
jack(8)withtheminuspole.UsetheKtypeadapterincludedin
the delivery.
- Themaindisplayindicatesthetemperaturevaluein°Cor°Faccordingtothesettingviathebutton
.
- When “OL” is displayed, the measuring range is exceeded.
- After measuring, remove the sensor and turn off the DMM.
When the measuring input is bridged (sockets: °C - COM), the DMM device temperature is indicated. Due to the
closed casing, the temperature is only slowly adapted to the ambience temperature.
8. FUNCTION BUTTONS (3)
The function buttons can be used to set additional parameters and additional functions. The sub-functions are only
activated by pressing the respective button. Press the button “CANCEL” to deactivate these functions
a) RANGE Function, Manual Measurement Range Selection
The RANGE function enables manual measuring range selection in some measuring functions with an automatic
measuring range selection (AUTO). In threshold areas, the measuring range should be set firmly to prevent undesired
switching.
