S83073A

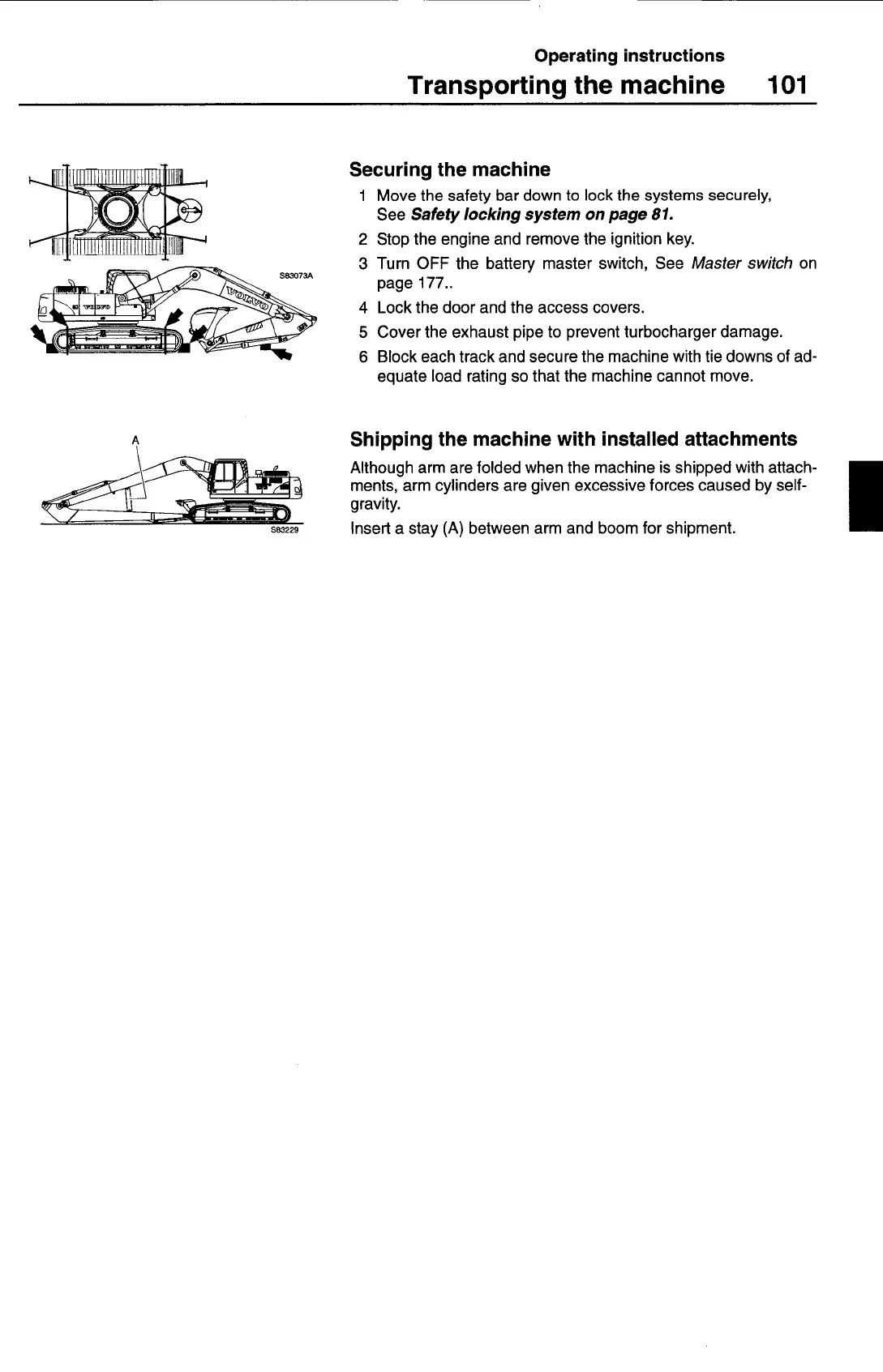

Operating instructions
Transporting the machine 101
Securing the machine
1 Move the safety bar down to lock the systems securely,
See Safety locking system on page 81.
2 Stop the engine and remove the ignition key.
3 Turn OFF the battery master switch, See
Master switch
on
page 177..
4 Lock the door and the access covers.
5 Cover the exhaust pipe to prevent turbocharger damage.
6 Block each track and secure the machine with tie downs of ad-
equate load rating so that the machine cannot move.
A
Shipping the machine with installed attachments
Although arm are folded when the machine is shipped with attach-
ments, arm cylinders are given excessive forces caused by self-
gravity.
Insert a stay (A) between arm and boom for shipment.
S83229
