Volvo EC210B - Operating Levers for Swing, Arm, Boom, and Bucket

Instruments and controls

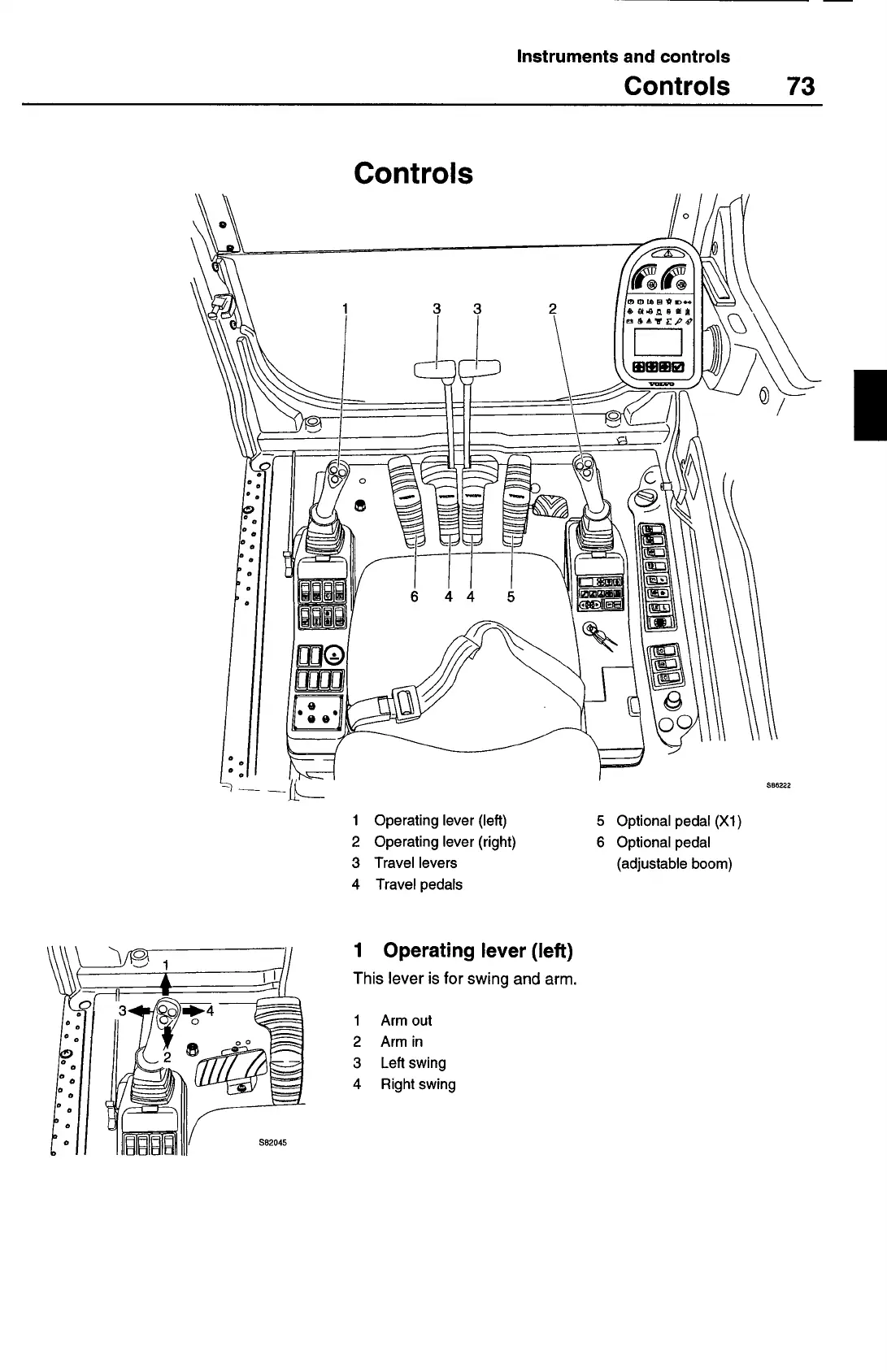

Controls 73
Controls
1 Operating lever (left)
5
Optional pedal (Xl)
2 Operating lever (right)
6 Optional pedal
3 Travel levers
(adjustable boom)
4 Travel pedals
1 Operating lever (left)
This lever is for swing and arm.
1 Arm out
2 Armin
3
Left swing
4 Right swing
