S82084
1
Seat inclination adjustment
2 Suspension adjustment
3
Backrest inclination adjustment
4
Slide adjustment
5
Armrest angle adjustment
6
Seat belt
7
Headrest restraint adjustment
8
Lumber support adjustment
9 Horizontal position adjustment
10 Height position adjustment
Instruments
and controls
Operator seat
79

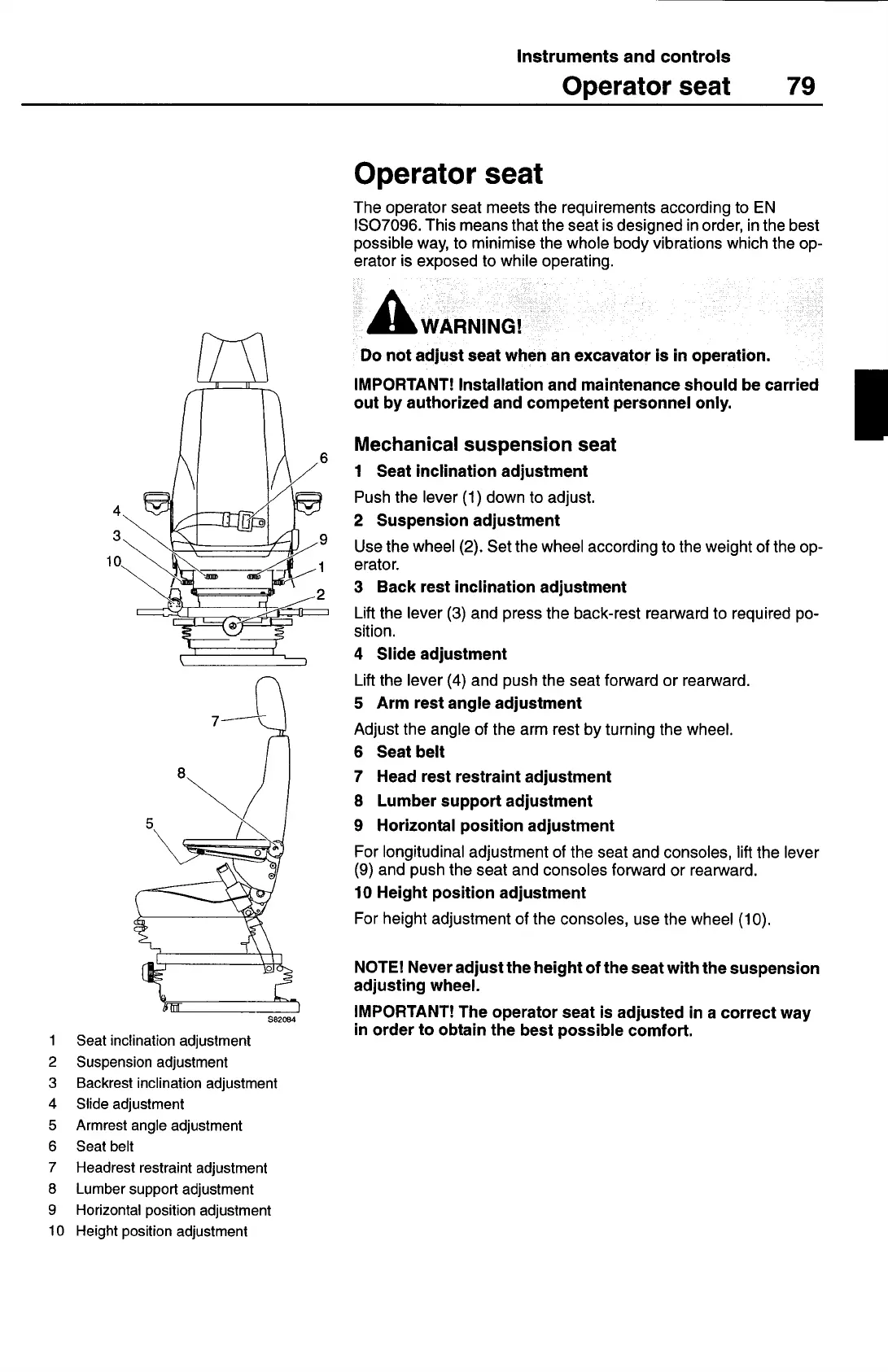

Operator seat
The operator seat meets the requirements according to EN
1S07096. This means that the seat is designed in order, in the best
possible way, to minimise the whole body vibrations which the op-
erator is exposed to while operating.
WARNING
Do not adjust seat when an excavator Is in operation.
IMPORTANT! Installation and maintenance should be carried
out by authorized and competent personnel only.
Mechanical suspension seat
1 Seat inclination adjustment
Push the lever (1) down to adjust.
2 Suspension adjustment
Use the wheel (2). Set the wheel according to the weight of the op-
erator.
3 Back rest inclination adjustment
Lift the lever (3) and press the back-rest rearward to required po-
sition.
4 Slide adjustment
Lift the lever (4) and push the seat forward or rearward.
5 Arm rest angle adjustment
Adjust the angle of the arm rest by turning the wheel.
6 Seat belt
7 Head rest restraint adjustment
8 Lumber support adjustment
9 Horizontal position adjustment
For longitudinal adjustment of the seat and consoles, lift the lever
(9) and push the seat and consoles forward or rearward.
10 Height position adjustment
For height adjustment of the consoles, use the wheel (10).
NOTE! Never adjust the height of the seat with the suspension
adjusting wheel.
IMPORTANT! The operator seat is adjusted in a correct way
in order to obtain the best possible comfort.
