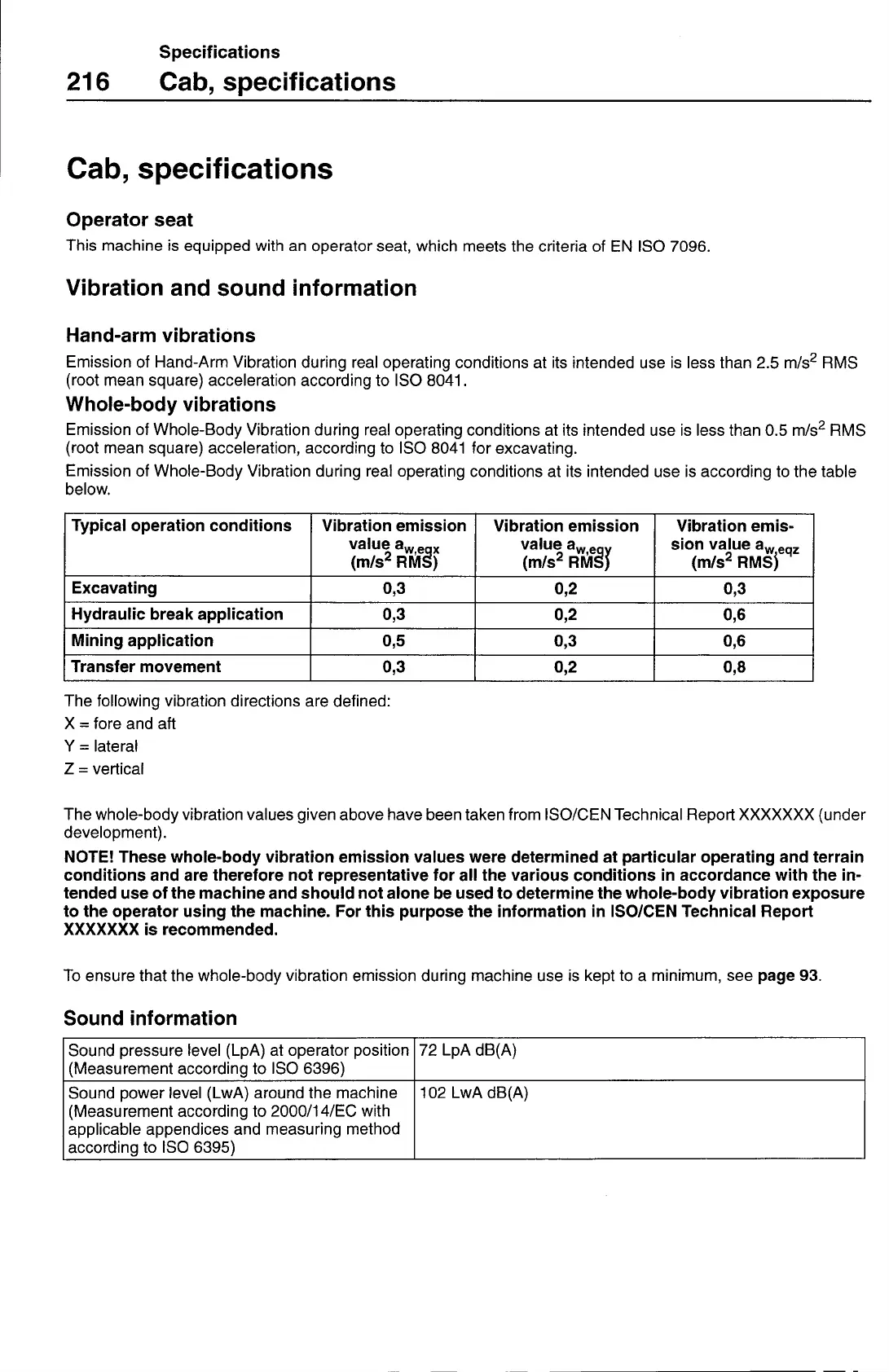

Specifications
216
Cab, specifications
Cab, specifications
Operator seat
This machine is equipped with an operator seat, which meets the criteria of EN ISO 7096.
Vibration and sound information
Hand-arm vibrations
Emission of Hand-Arm Vibration during real operating conditions at its intended use is less than 2.5 m/s
2
RMS
(root mean square) acceleration according to ISO 8041.
Whole-body vibrations
Emission of Whole-Body Vibration during real operating conditions at its intended use is less than 0.5 m/s
2
RMS
(root mean square) acceleration, according to ISO 8041 for excavating.
Emission of Whole-Body Vibration during real operating conditions at its intended use is according to the table
below.
Typical operation conditions
Vibration emission
value a
w
,
eqx
(rn/s
2
RMS)
Vibration emission
value a
w
,
eav
(rn/s
2
RMS)
Vibration emis-
sion value a
weqz
(rn/s
2
RMSj
Excavating
0,3
0,2
0,3
Hydraulic break application
0,3
0,2
0,6
Mining application
0,5
0,3
0,6
Transfer movement
0,3
0,2
0,8
The following vibration directions are defined:
X = fore and aft
Y = lateral
Z = vertical
The whole-body vibration values given above have been taken from ISO/CEN Technical Report XXXXXXX (under
development).
NOTE! These whole-body vibration emission values were determined at particular operating and terrain
conditions and are therefore not representative for all the various conditions in accordance with the in-
tended use of the machine and should not alone be used to determine the whole-body vibration exposure
to the operator using the machine. For this purpose the information in ISO/CEN Technical Report
XXXXXXX is recommended.
To ensure that the whole-body vibration emission during machine use is kept to a minimum, see
page 93.
Sound information
Sound pressure level (LpA) at operator position
(Measurement according to ISO 6396)
72 LpA dB(A)
Sound power level (LwA) around the machine
(Measurement according to 2000/14/EC with
applicable appendices and measuring method
according to ISO 6395)
102 LwA dB(A)
