Volvo EC210B - Selecting Valves for Optional Parts

I ==1
3 Optional pedal position (adjustable boom)
Position 4
Operation (if equipped)
Position 5 Operation lock (if equipped)
4
5
Instruments and controls

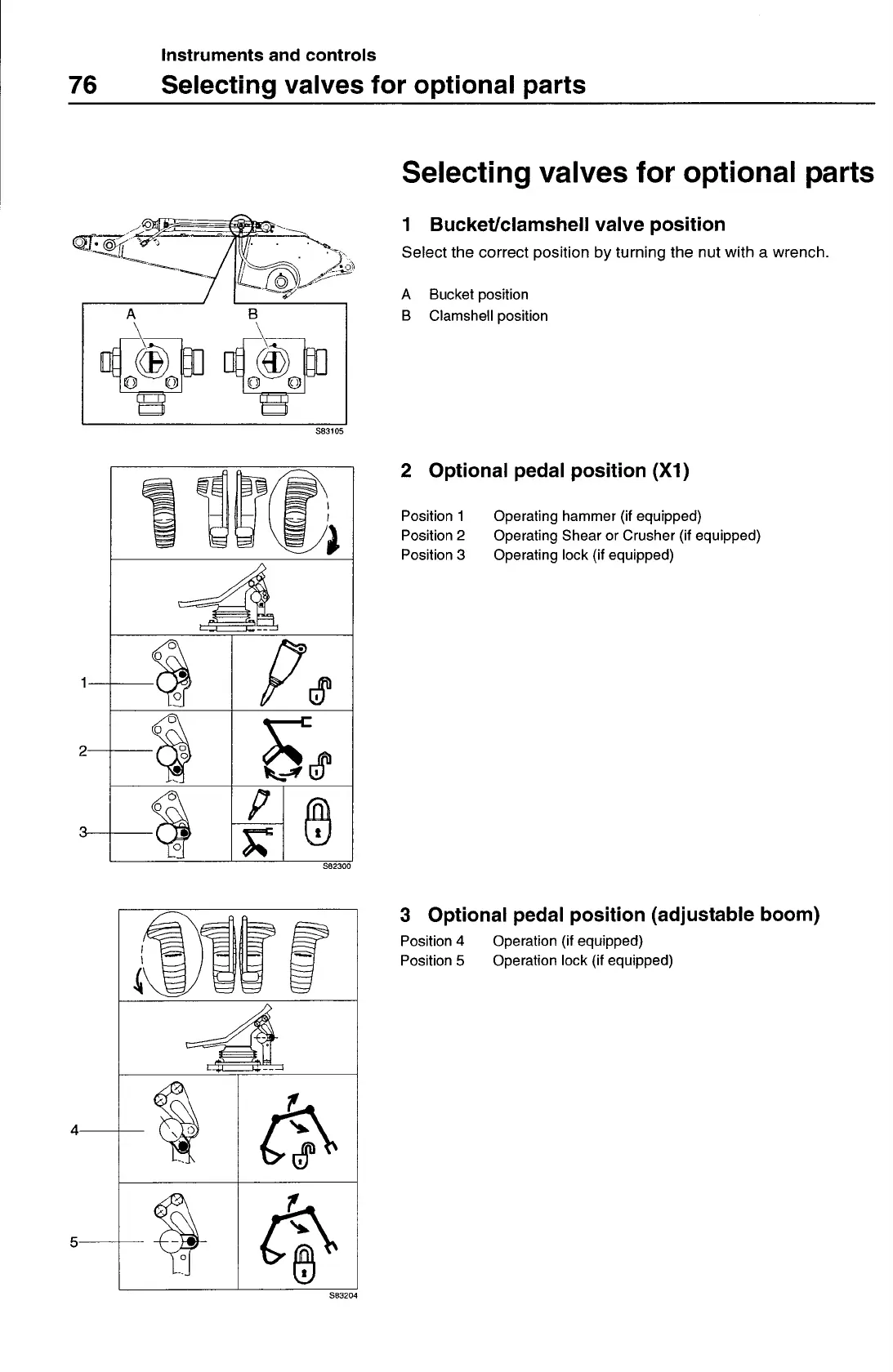

76 Selecting valves for optional parts
Selecting valves for optional parts
1 Bucket/clamshell valve position
Select the correct position by turning the nut with a wrench.
A Bucket position
B Clamshell position
1
2
S83105
!
\I1
•
L)
S82300
2 Optional pedal position (Xl)
Position 1 Operating hammer (if equipped)
Position 2 Operating Shear or Crusher (if equipped)
Position 3 Operating lock (if equipped)
SB3204
