Instruments and controls
Controls
75

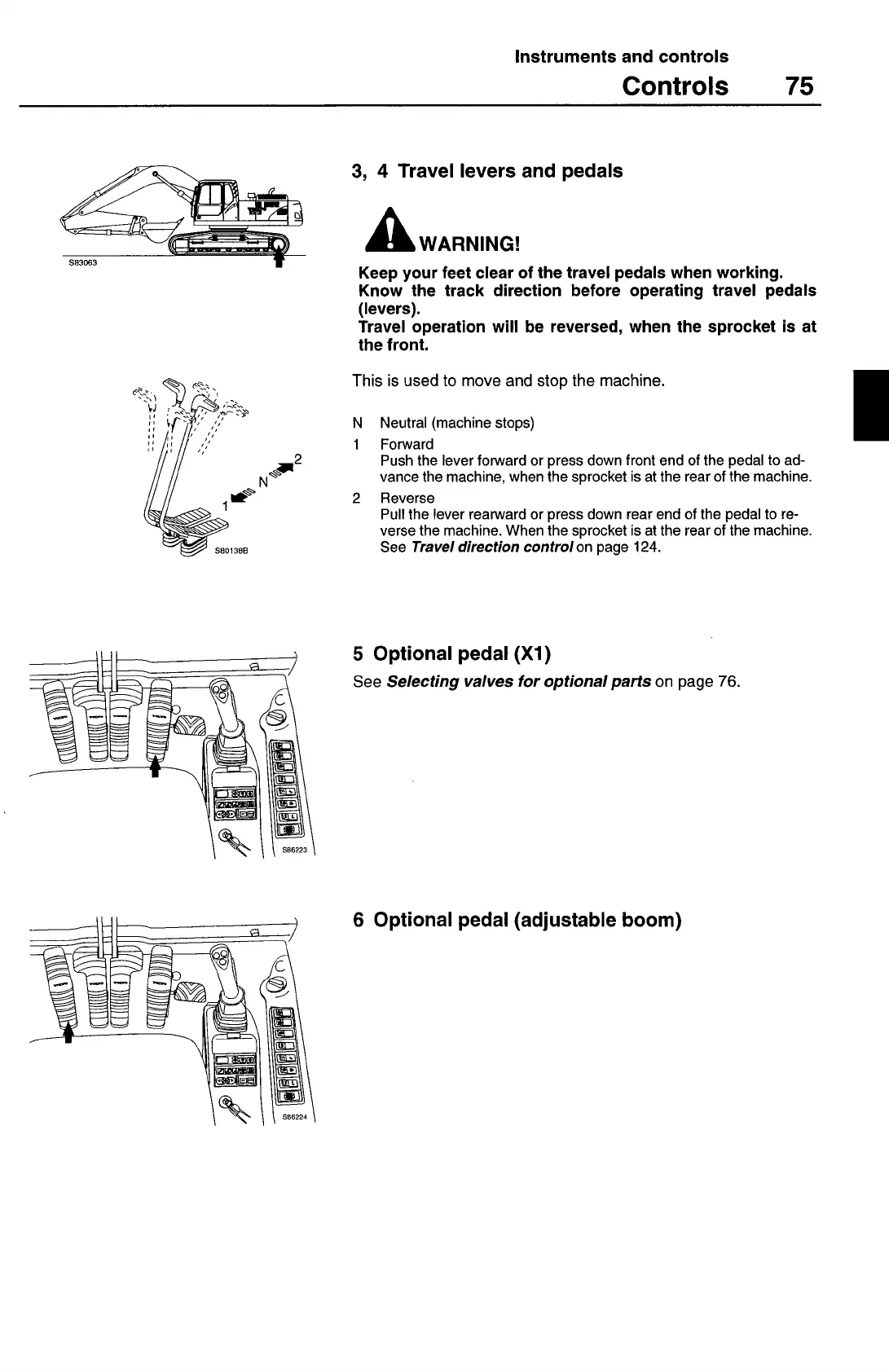

3, 4 Travel levers and pedals
WARNING!
Keep your feet clear of the travel pedals when working.
Know the track direction before operating travel pedals
(levers).
Travel operation will be reversed, when the sprocket is at
the front.
This is
used to move and stop the machine.
N
Neutral (machine stops)
1 Forward
Push the lever forward or press down front end of the pedal to ad-
vance the machine, when the sprocket is at the rear of the machine.
2 Reverse
Pull the lever rearward or press down rear end of the pedal to re-
verse the machine. When the sprocket is at the rear of the machine.
See
Travel direction control
on
page 124.
5 Optional pedal (Xl)
See
Selecting valves for optional parts
on
page
76.
6 Optional pedal (adjustable boom)
