Instruments and controls
Safety locking system
81
Safety locking system

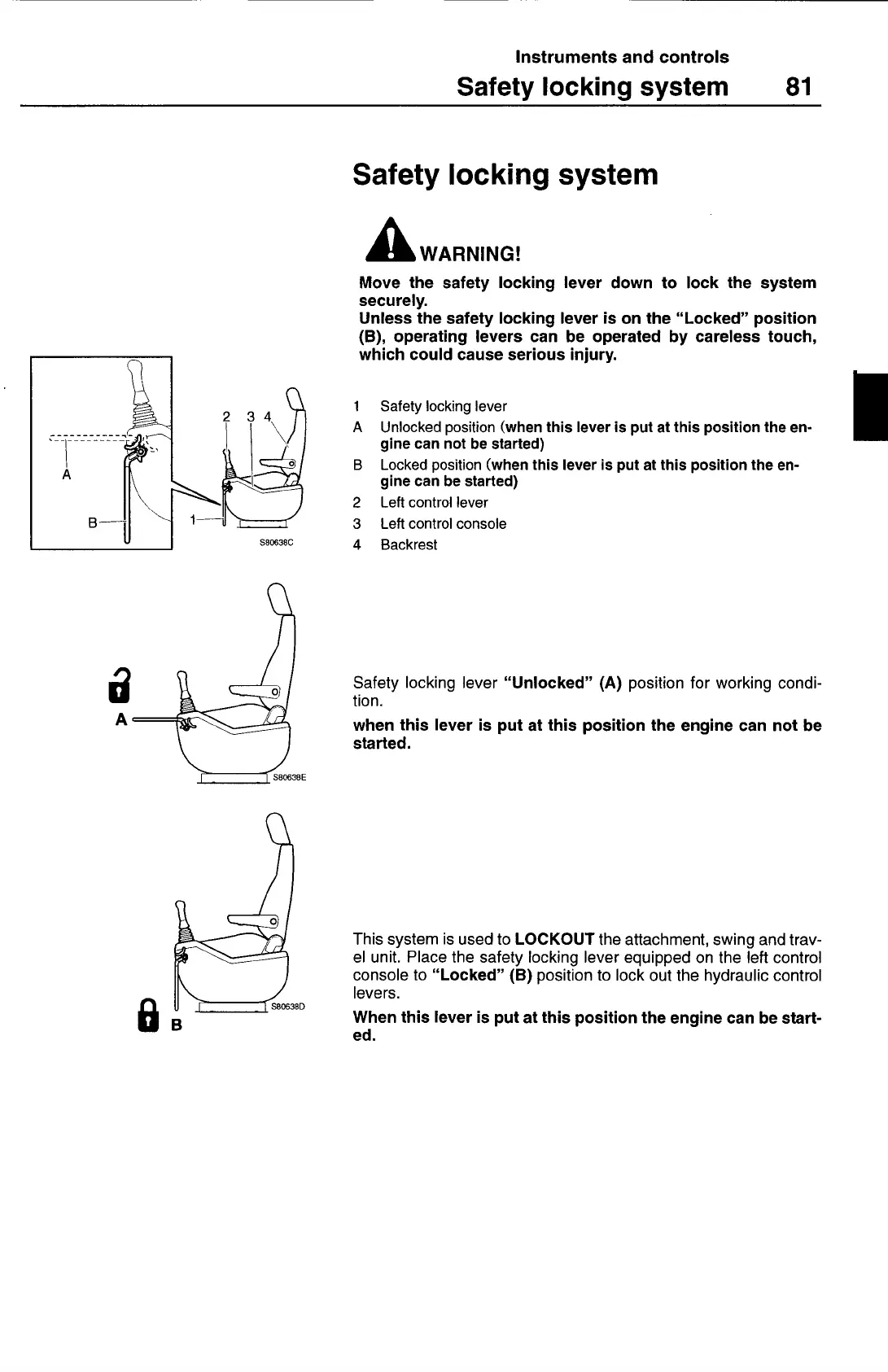

WARNING!
Move the safety locking lever down to lock the system
securely.
Unless the safety locking lever is on the "Locked" position
(B), operating levers can be operated by careless touch,
which could cause serious injury.
1
Safety locking lever
A
Unlocked position (when
this lever is put at this position the en-
gine can not be started)
B
Locked position
(when this lever is put at this position the en-
gine can be started)
2
Left control lever
3
Left control console
4 Backrest
Safety locking lever
"Unlocked"
(A) position for working condi-
tion.
when this lever is put at this position the engine can not be
started.
This system is used to
LOCKOUT
the attachment, swing and trav-
el unit. Place the safety locking lever equipped on the left control
console to
"Locked" (B)
position to lock out the hydraulic control
levers.
When this lever is put at this position the engine can be start-
ed.
