Specifications

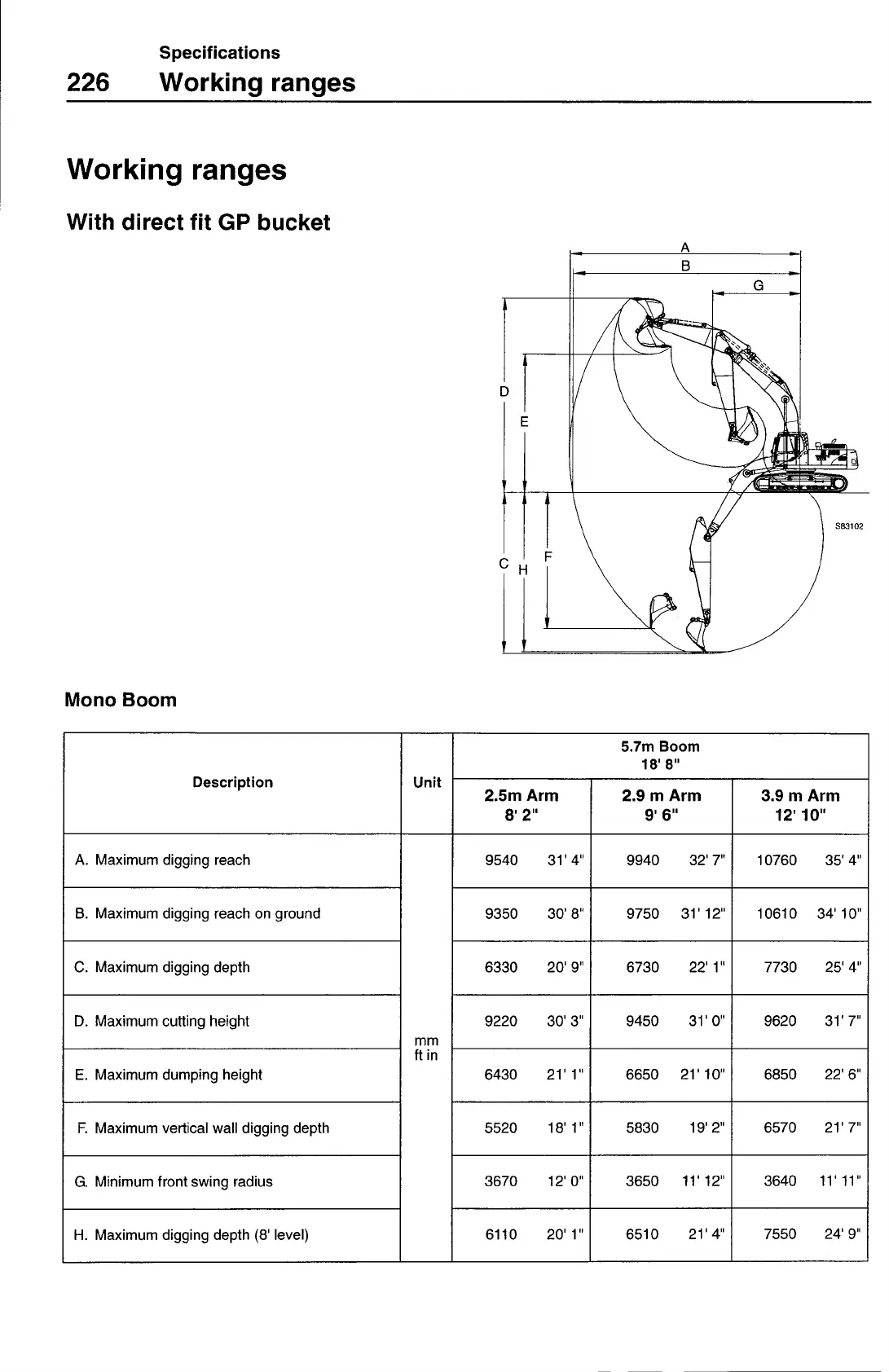

226 Working ranges
Working ranges
With direct fit GP bucket
Mono Boom
Description Unit
5.7m Boom
18 8"
2.5m Arm
82"
2.9 m Arm
96"
3.9 m Arm
1210"
A. Maximum digging reach
mm
ft in
9540 31 4" 9940 32' 7" 10760 35' 4"
B. Maximum digging reach on ground
9350 30' 8"
9750 31' 12" 10610 3410'
C. Maximum digging depth 6330 20' 9" 6730 221" 7730 25' 4"
D. Maximum cutting height 9220
30' 3"
9450 31' 0" 9620 31 7"
E. Maximum dumping height 6430 21' 1" 6650 21' 10" 6850 22' 6"
F. Maximum vertical wall digging depth
5520 18' 1" 5830 19' 2"
6570 21' 7"
a
Minimum front swing radius
3670 12' 0" 3650
1112' 3640
1111"
H. Maximum digging depth (8' level)
6110 20' 1"
6510 21' 4" 7550
24' 9"
