Operating instructions
Anti-vandalism
129

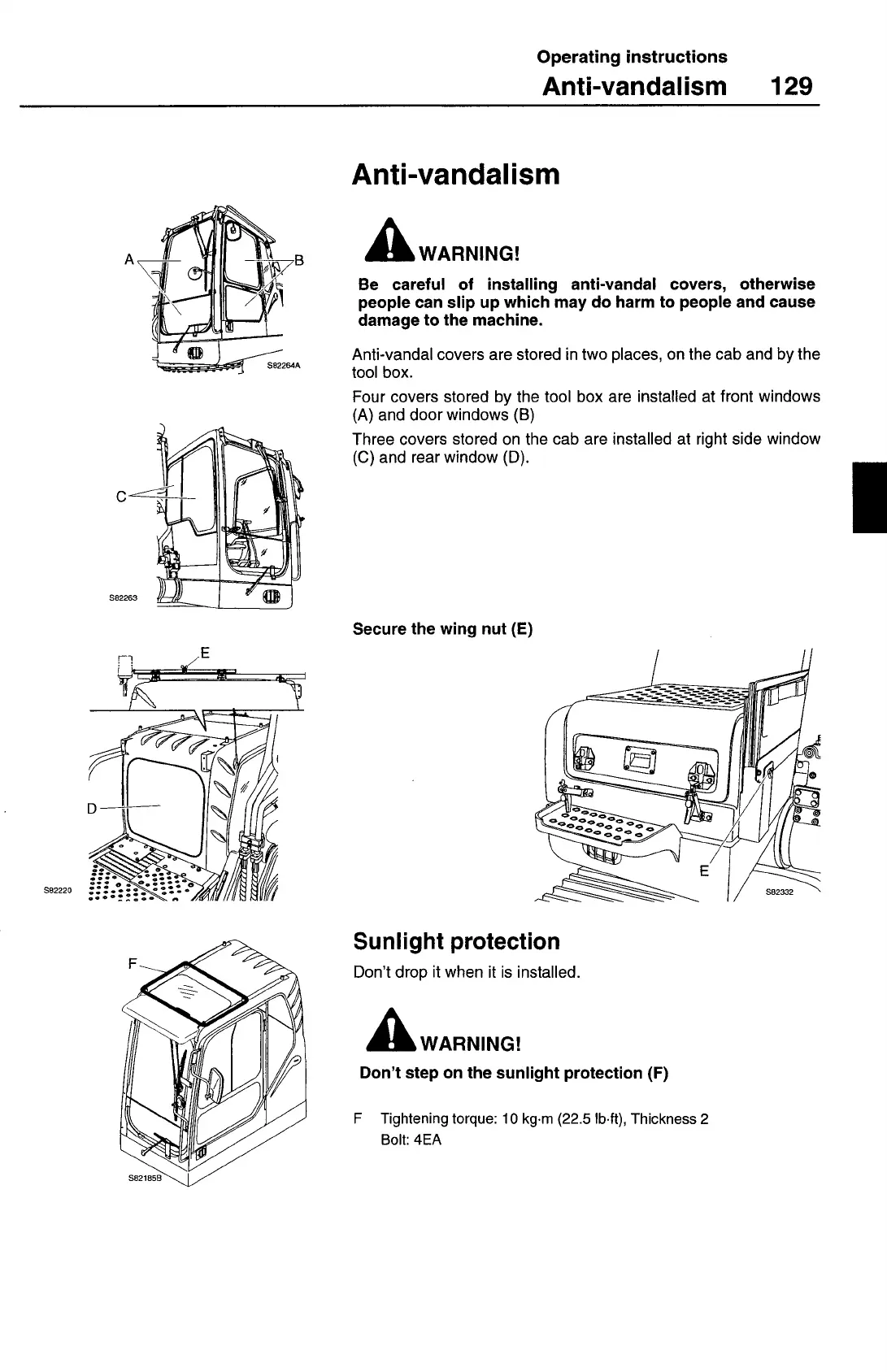

Anti-vandalism
WARNING!
Be careful of installing anti-vandal covers, otherwise
people can slip up which may do harm to people and cause
damage to the machine.
Anti-vandal covers are stored in two places, on the cab and by the
tool box.
Four covers stored by the tool box are installed at front windows
(A) and door windows (B)
Three covers stored on the cab are installed at right side window
(C) and rear window (D).
Secure the wing nut (E)
Sunlight protection
Don't drop it when it is installed.
A
WARNING!
Don't step on the sunlight protection (F)
F
Tightening torque: 10 kg.m (22.5 lb.ft), Thickness 2
Bolt: 4EA
