Operating instructions
100

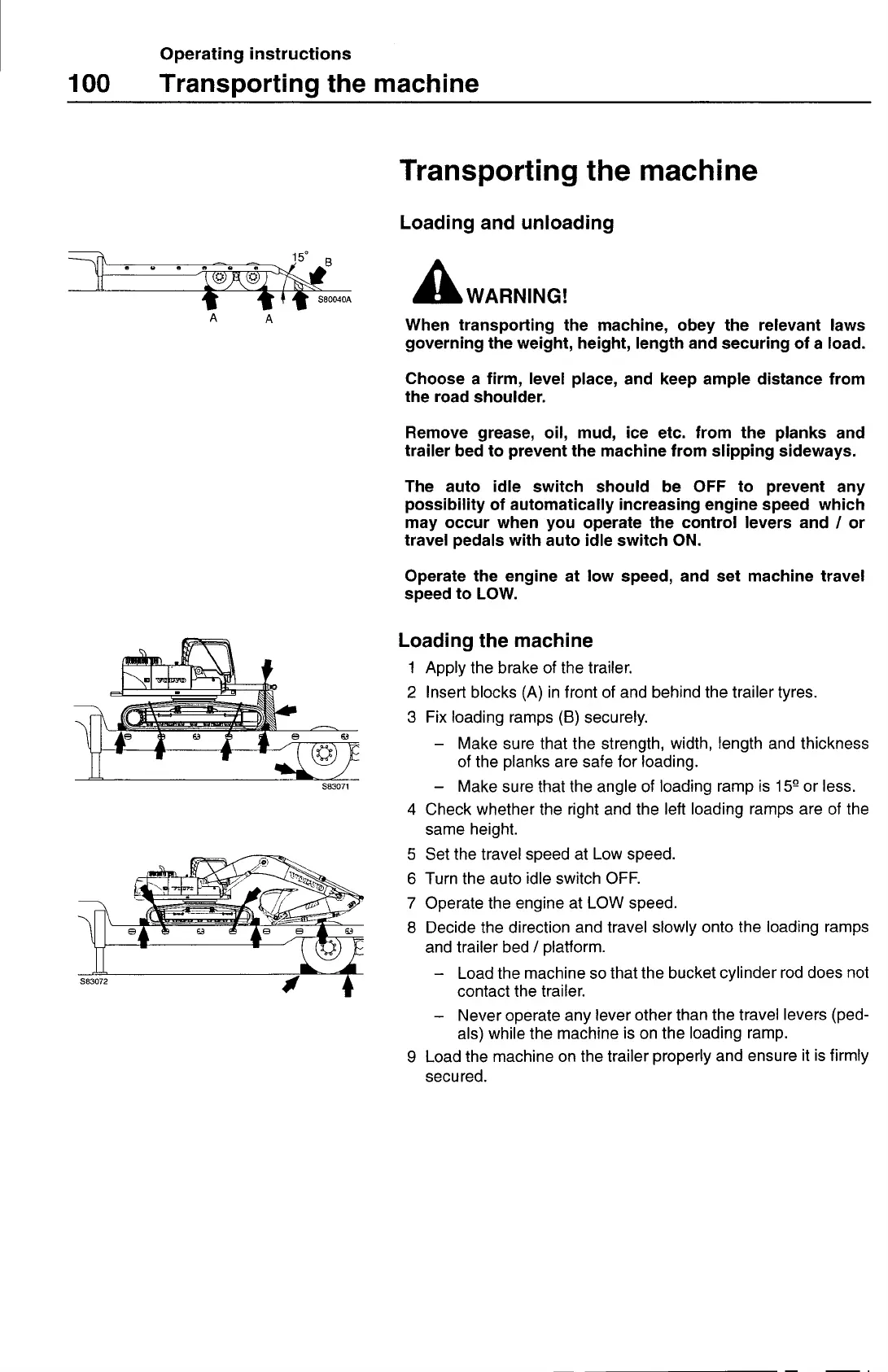

Transporting the machine
Transporting the machine
Loading and unloading
WARNING!
When transporting the machine, obey the relevant laws
governing the weight, height, length and securing of a load.
Choose a firm, level place, and keep ample distance from
the road shoulder.
Remove grease, oil, mud, ice etc. from the planks and
trailer bed to prevent the machine from slipping sideways.
The auto idle switch should be OFF to prevent any
possibility of automatically increasing engine speed which
may occur when you operate the control levers and / or
travel pedals with auto idle switch ON.
Operate the engine at low speed, and set machine travel
speed to LOW.
Loading the machine
1 Apply the brake of the trailer.
2 Insert blocks (A) in front of and behind the trailer tyres.
3 Fix loading ramps (B) securely.
- Make sure that the strength, width, length and thickness
of the planks are safe for loading.
- Make sure that the angle of loading ramp is 15 or less.
4 Check whether the right and the left loading ramps are of the
same height.
5 Set the travel speed at Low speed.
6 Turn the auto idle switch OFF.
7 Operate the engine at LOW speed.
8 Decide the direction and travel slowly onto the loading ramps
and trailer bed / platform.
- Load the machine so that the bucket cylinder rod does not
contact the trailer.
- Never operate any lever other than the travel levers (ped-
als) while the machine is on the loading ramp.
9 Load the machine on the trailer properly and ensure it is firmly
secured.
