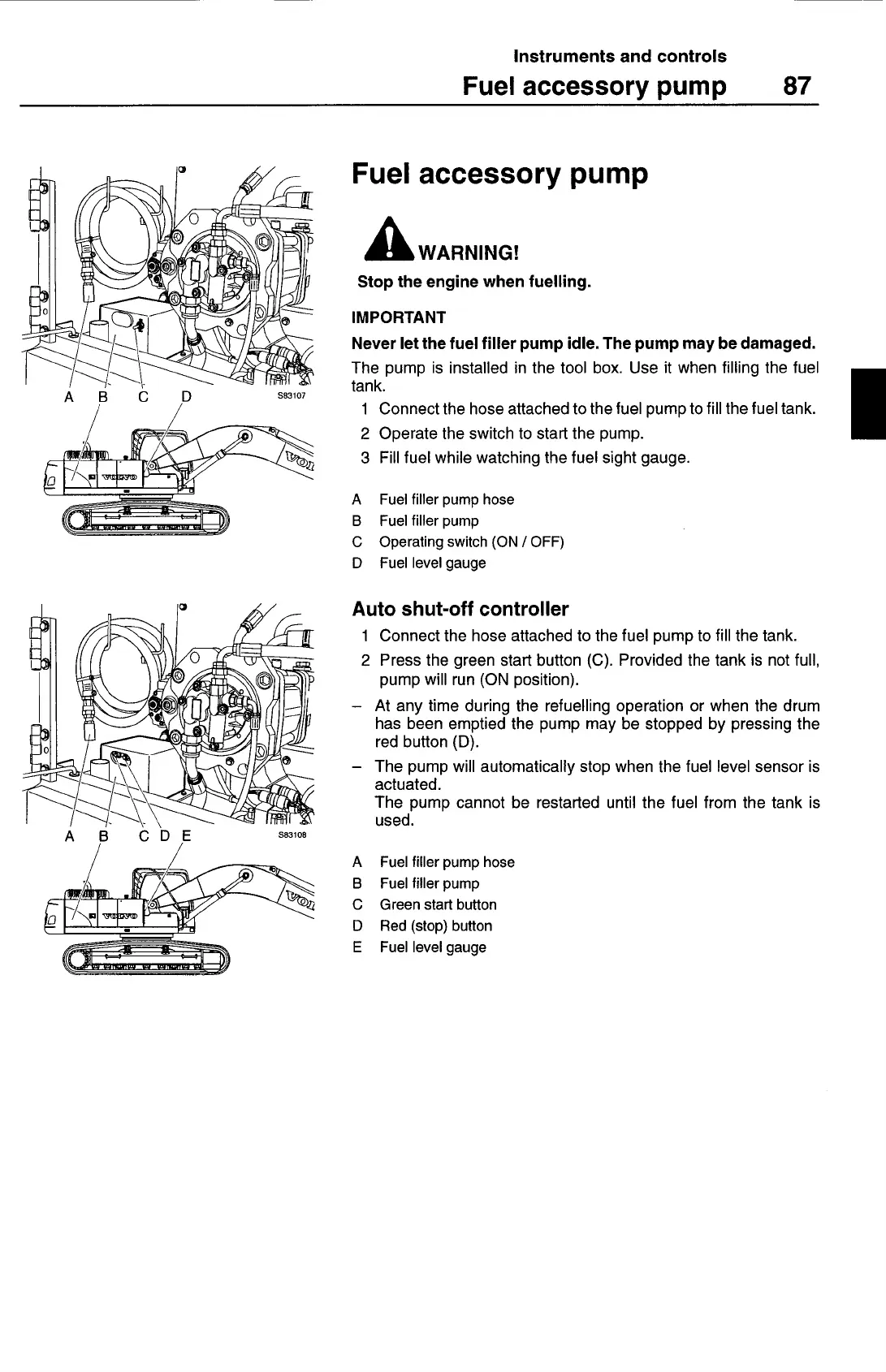

Volvo EC210B - Fuel Accessory Pump

Instruments and controls
Fuel accessory pump
87
Fuel accessory pump
A
WARNING!
Stop the engine when fuelling.
IMPORTANT
Never let the fuel filler pump idle. The pump may be damaged.
The pump is installed in the tool box. Use it when filling the fuel
tank.
1 Connect the hose attached to the fuel pump to fill the fuel tank.
2 Operate the switch to start the pump.
3 Fill fuel while watching the fuel sight gauge.
A Fuel filler pump hose
B
Fuel filler pump
C
Operating switch (ON / OFF)
D Fuel level gauge
Auto shut-off controller
1 Connect the hose attached to the fuel pump to fill the tank.
2 Press the green start button (C). Provided the tank is not full,
pump will run (ON position).
— At any time during the refuelling operation or when the drum
has been emptied the pump may be stopped by pressing the
red button (D).
— The pump will automatically stop when the fuel level sensor is
actuated.
The pump cannot be restarted until the fuel from the tank is
used.
A Fuel filler pump hose
B Fuel filler pump
C Greenstart button
O Red (stop) button
E Fuel level gauge
