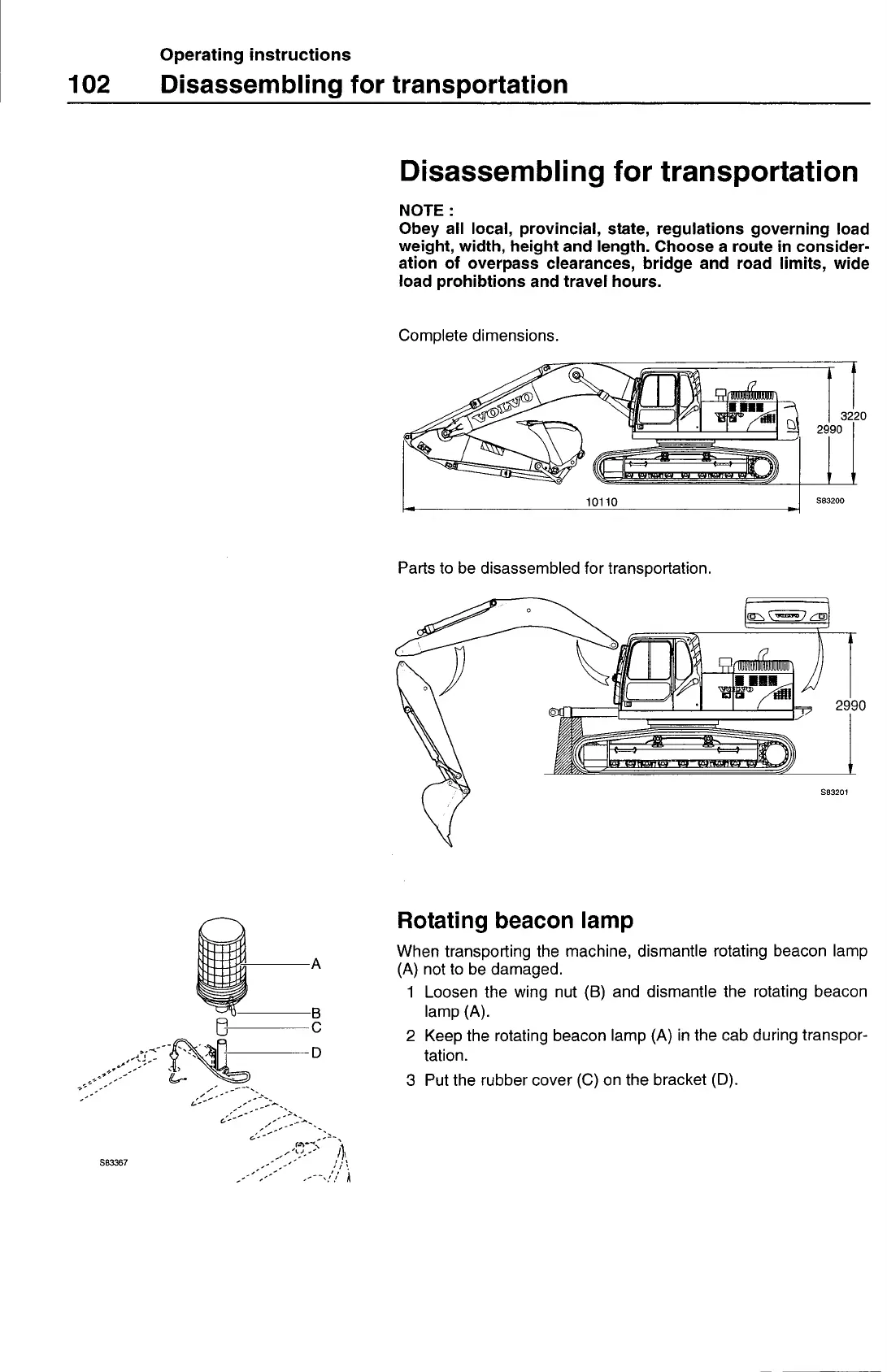

Operating instructions
102 Disassembling for transportation
Disassembling for transportation
NOTE:
Obey all local, provincial, state, regulations governing load
weight, width, height and length. Choose a route in consider-
ation of overpass clearances, bridge and road limits, wide
load prohibtions and travel hours.
Complete dimensions.
Parts to be disassembled for transportation.
S83367
Rotating beacon lamp
When transporting the machine, dismantle rotating beacon lamp
A
(A) not to be damaged.
1 Loosen the wing nut (B) and dismantle the rotating beacon
B
lamp (A).
C
2 Keep the rotating beacon lamp (A) in the cab during transpor-
D
tation.
3 Put the rubber cover (C) on the bracket (D).
