Operating instructions
Selecting track shoe 113

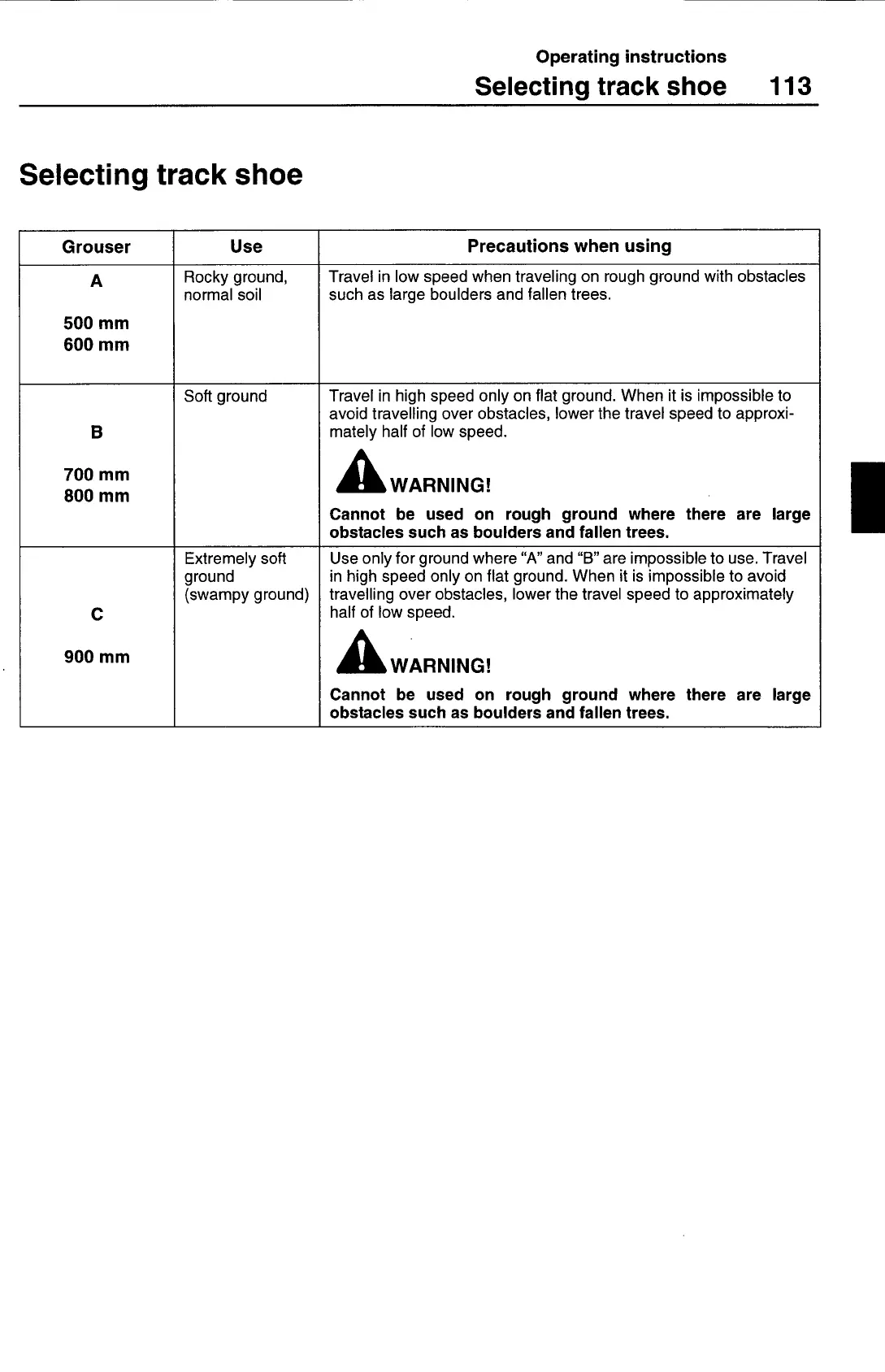

Selecting track shoe
Grouser
Use
Precautions when using
A
500 mm
600 mm
Rocky ground,
normal soil
Travel in low speed when traveling on rough ground with obstacles
such as large boulders and fallen trees.
B
Soft ground
Travel in high speed only on flat ground. When it is impossible to
avoid travelling over obstacles, lower the travel speed to approxi-
mately half of low speed.
A
WARNING!
Cannot be used on rough ground where there are large
obstacles such as boulders and fallen trees.
C
900 mm
Extremely soft
ground
(swampy ground)
Use only for ground where "A" and "B" are impossible to use. Travel
in high speed only on flat ground. When it is impossible to avoid
travelling over obstacles, lower the travel speed to approximately
half of low speed.
A
WARNING!
Cannot be used on rough ground where there are large
obstacles such as boulders and fallen trees.
