Service
and maintenance
200

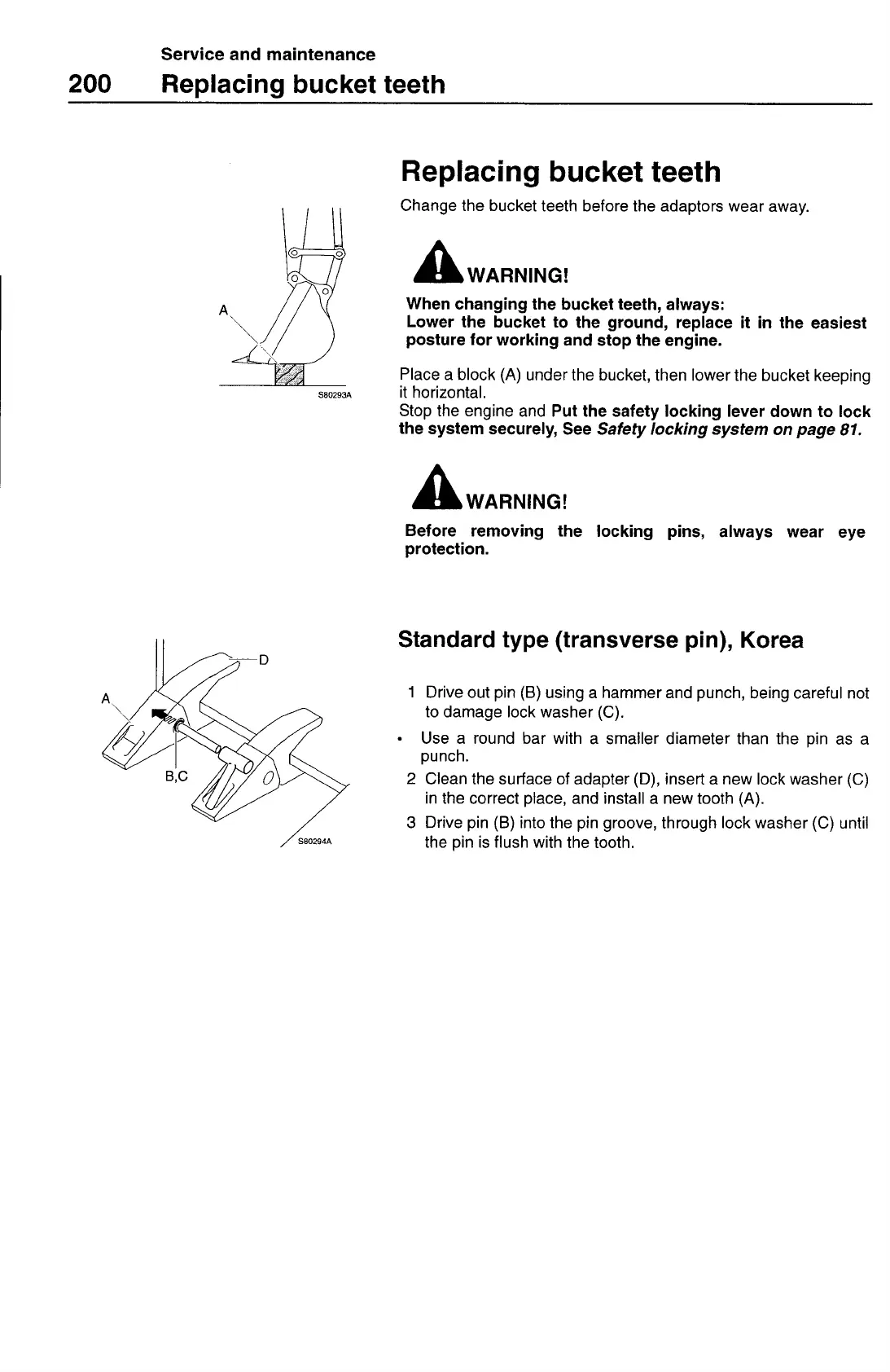

Replacing bucket teeth
Replacing bucket teeth
Change the bucket teeth before the adaptors wear away.
WARNING!
When changing the bucket teeth, always:
Lower the bucket to the ground, replace it in the easiest
posture for working and stop the engine.
Place a block (A) under the bucket, then lower the bucket keeping
it horizontal.
Stop the engine and
Put the safety locking lever down to lock
the system securely, See Safety locking system on page 81.
S80293A
WARNING!
Before removing the locking pins, always wear eye
protection.
Standard type (transverse pin), Korea
1 Drive out pin (B) using a hammer and punch, being careful not
to damage lock washer (C).
•
Use a round bar with a smaller diameter than the pin as a
Punch.
2 Clean the surface of adapter (D), insert a new lock washer (C)
in the correct place, and install a new tooth (A).
3 Drive pin (B) into the pin groove, through lock washer (C) until
the pin is flush with the tooth.
