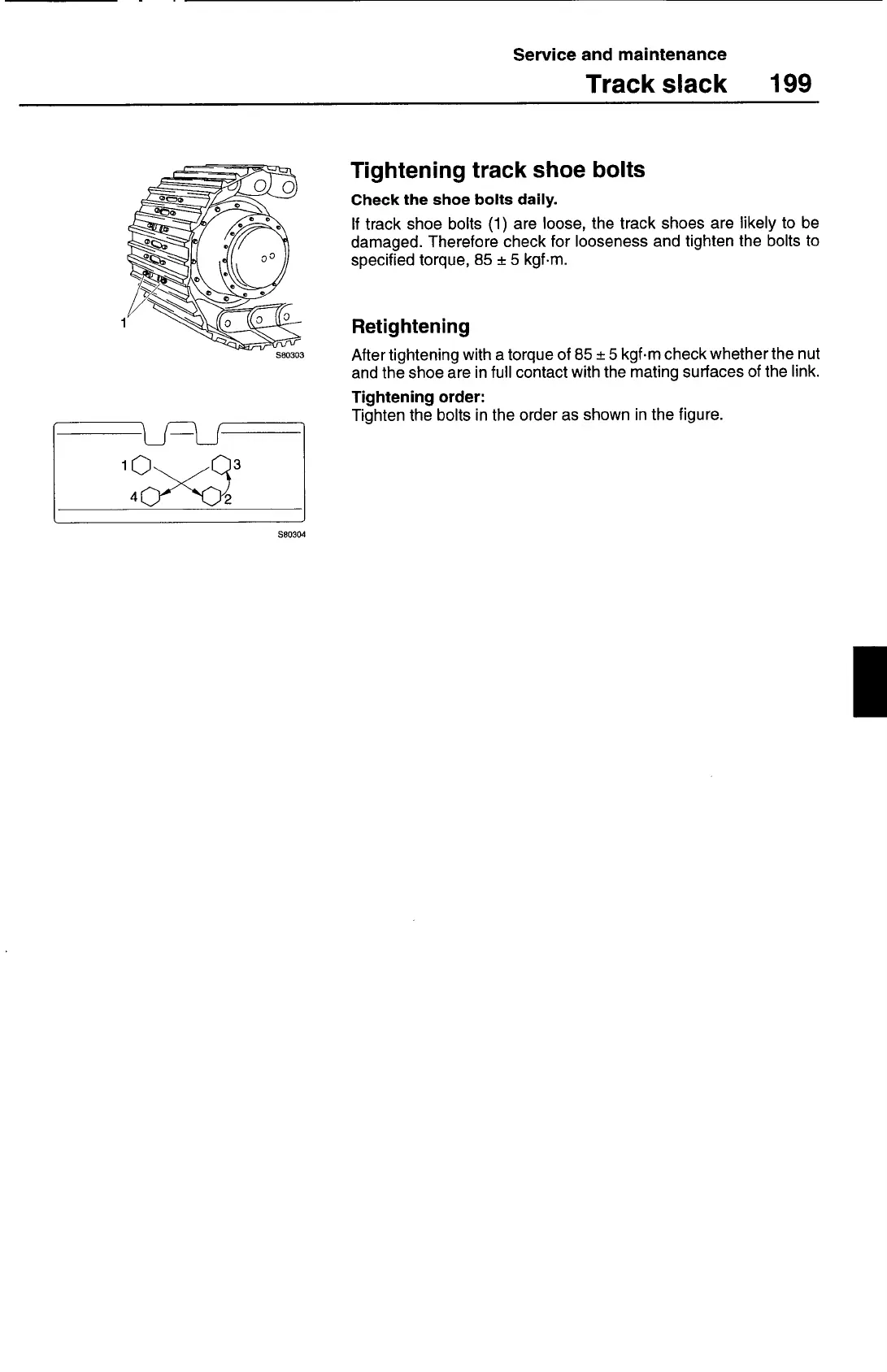

Service and maintenance
Track slack 199
Tightening track shoe bolts
Check the shoe bolts daily.
If track shoe bolts (1) are loose, the track shoes are likely to be
damaged. Therefore check for looseness and tighten the bolts to
specified torque, 85 ± 5 kgf.m.
Retightening
After tightening with a torque of 85±5 kgf.m check whether the nut
and the shoe are in full contact with the mating surfaces of the link.
Tightening order:
Tighten the bolts in the order as shown in the figure.
