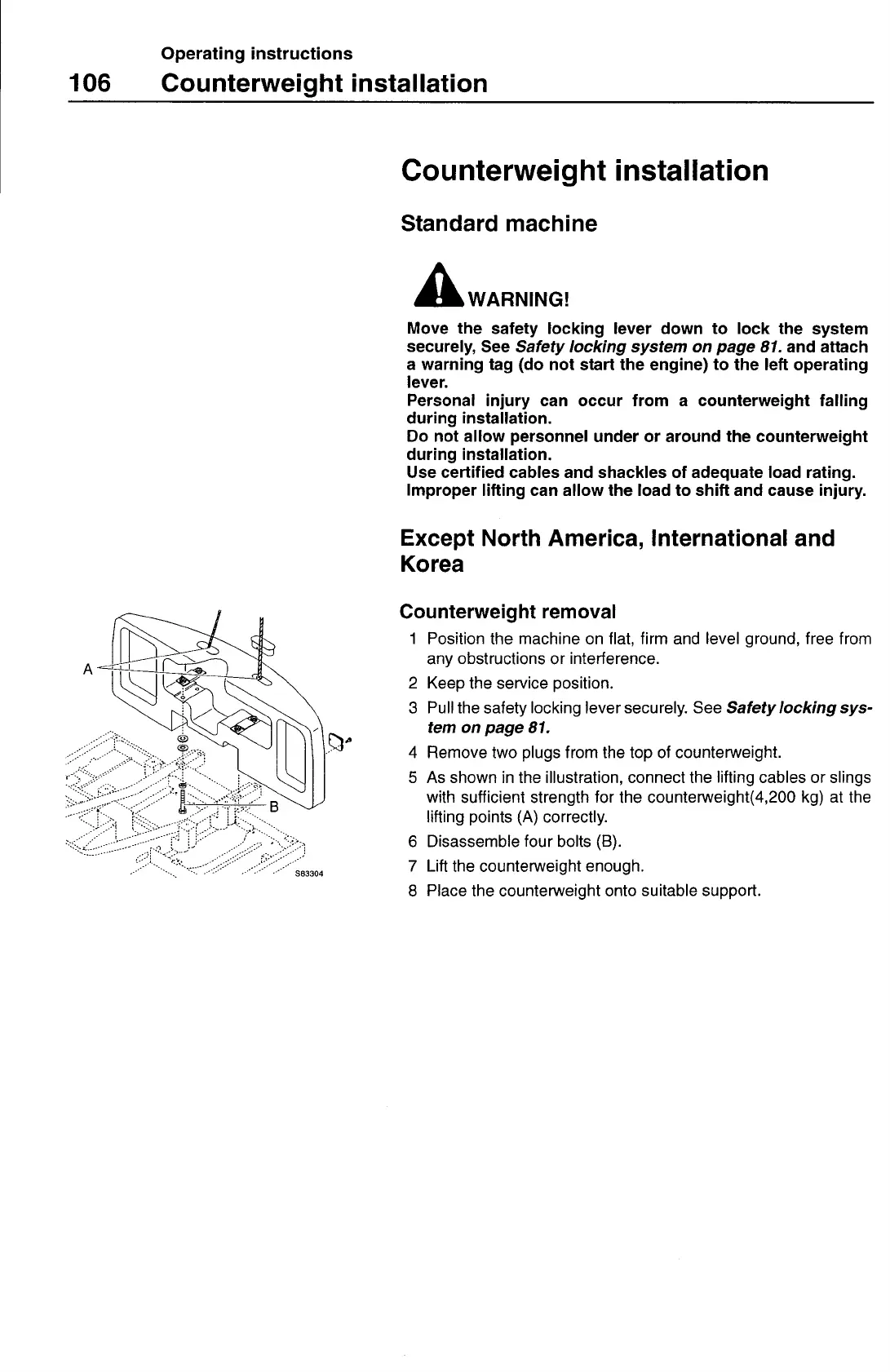

Operating instructions
106
Counterweight installation
Counterweight installation
Standard machine
WARNING!
Move the safety locking lever down to lock the system
securely, See Safety locking system on page 81.
and attach
a warning tag (do not start the engine) to the left operating
lever.
Personal injury can occur from a counterweight falling
during installation.
Do not allow personnel under or around the counterweight
during installation.
Use certified cables and shackles of adequate load rating.
Improper lifting can allow the load to shift and cause injury.
Except North America, International and
Korea
Counterweight removal
1 Position the machine on flat, firm and level ground, free from
any obstructions or interference.
2 Keep the service position.
3 Pullthe safety locking lever securely. See
Safety locking sys-
tem on page 81.
4 Remove two plugs from the top of counterweight.
5 As shown in the illustration, connect the lifting cables or slings
with sufficient strength for the counterweight(4,200 kg) at the
lifting points (A) correctly.
6 Disassemble four bolts (B).
7 Lift the counterweight enough.
8 Place the counterweight onto suitable support.
