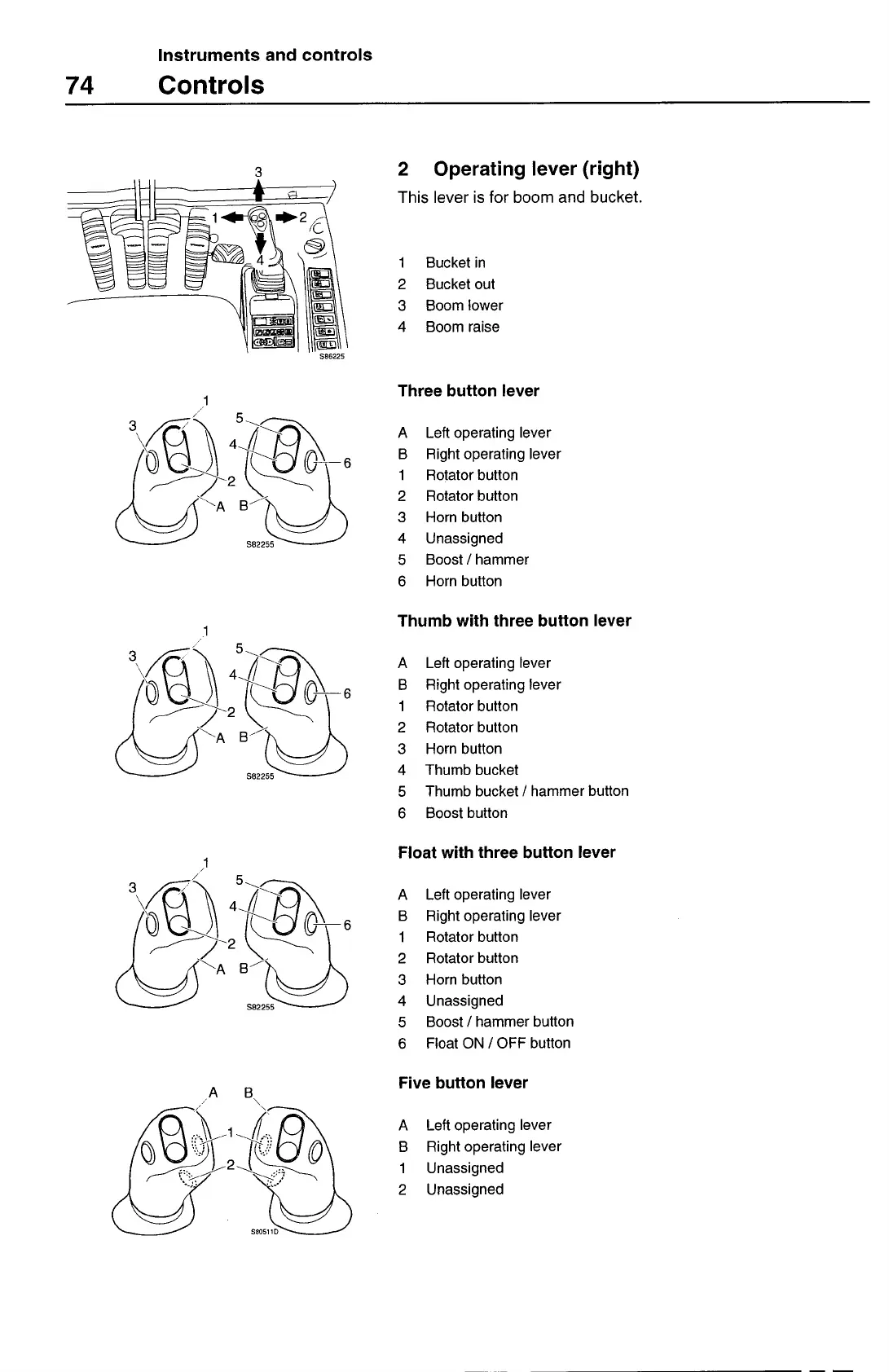

Instruments and controls
74 Controls
2
Operating lever (right)
This lever is for boom and bucket.
1 Bucket in
2 Bucket out
3 Boom lower
4 Boom raise
Three button lever
A Left operating lever
B
Right operating lever
1 Rotator button
2 Rotator button
3 Horn button
4 Unassigned
5
Boost I hammer
6 Horn button
Thumb with three button lever
A Left operating lever
B Right operating lever
1 Rotator button
2
Rotator button
3 Horn button
4 Thumb bucket
5
Thumb bucket / hammer button
6
Boost button
Float with three button lever
A Left operating lever
B
Right operating lever
1
Rotator button
2
Rotator button
3 Horn button
4 Unassigned
5
Boost I
hammer button
6
Float ON I
OFF button
Five button lever
A
Left operating lever
B
Right operating lever
1 Unassigned
2 Unassigned
