Instruments
and controls
78

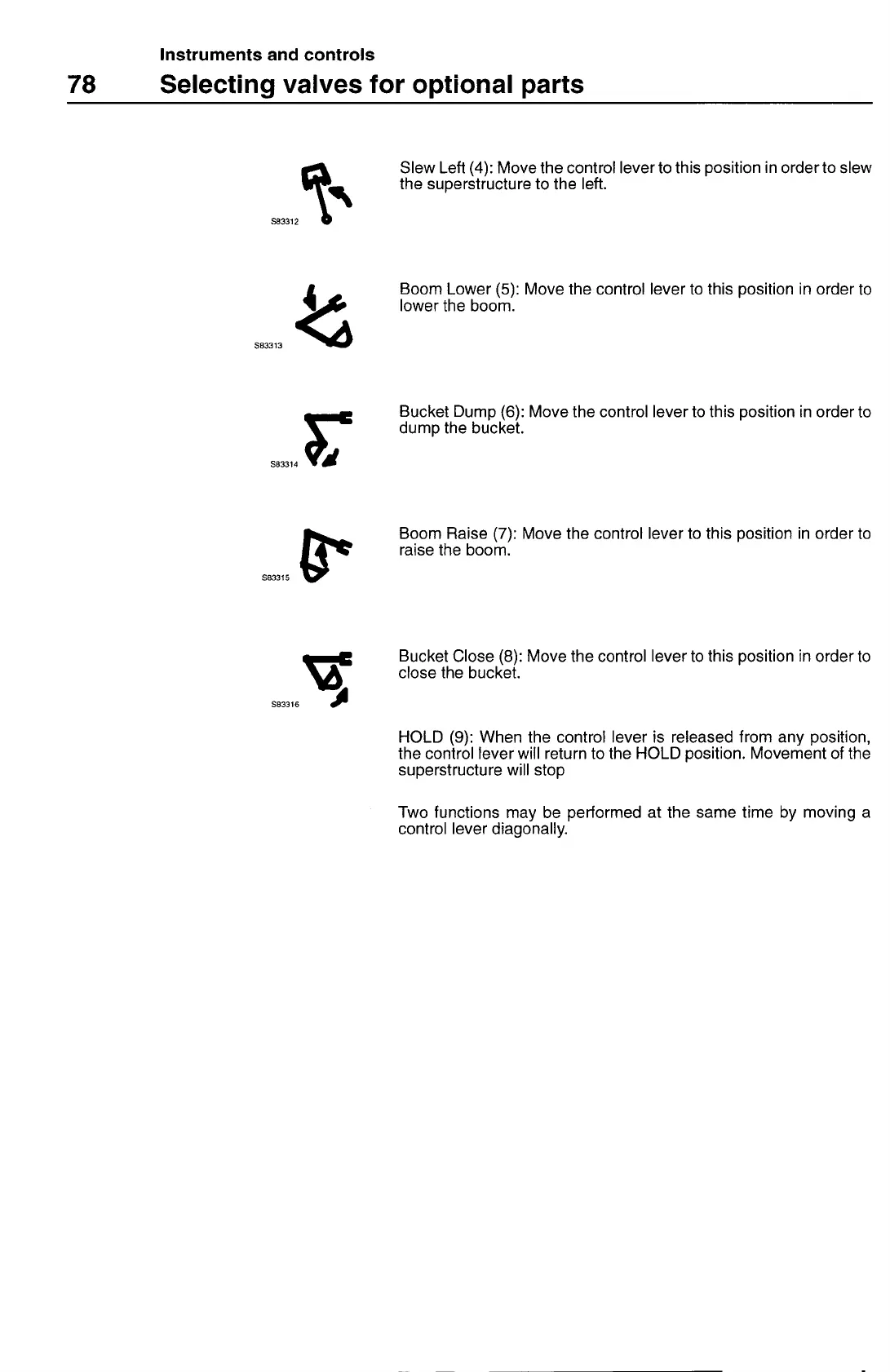

Selecting valves for optional parts
Slew Left (4): Move the control lever to this position in order to slew
the superstructure to the left.
883312
883313
Boom Lower (5): Move the control lever to this position in order to
lower the boom.
S83314
Bucket Dump (6): Move the control lever to this position in order to
dump the bucket.
Boom Raise (7): Move the control lever to this position in order to
raise the boom.
Bucket Close (8): Move the control lever to this position in order to
close the bucket.
HOLD (9): When the control lever is released from any position,
the control lever will return to the HOLD position. Movement of the
superstructure will stop
Two functions may be performed at the same time by moving a
control lever diagonally.
